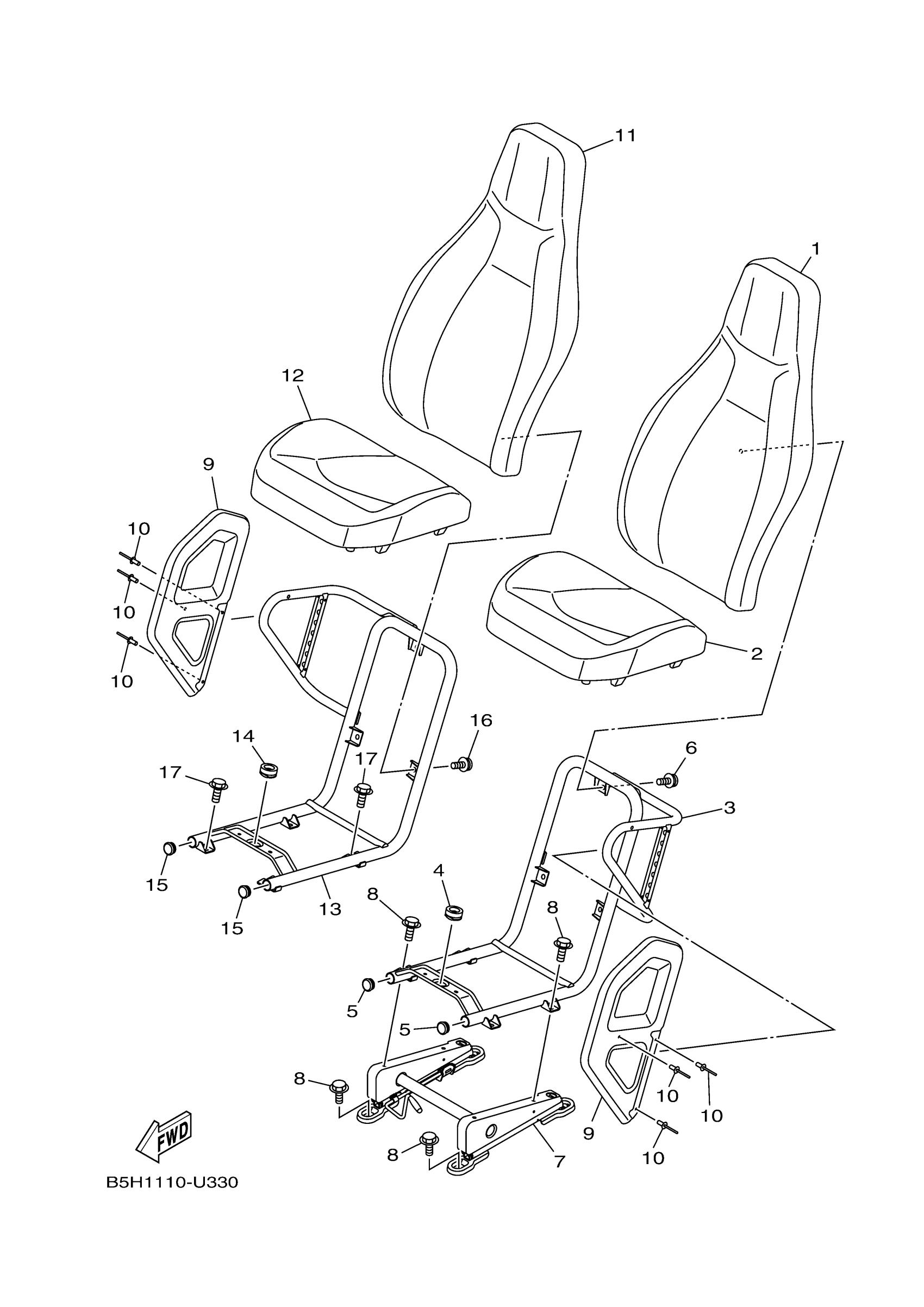

Yamaha YXZ10YESKW (YXZ1000R EPS SS SE) B5H4 2019 SEAT Diagram

#

Description
Price

1

SEATBACKASSY

B5H-F4790-11-00

$620.99

2

SEAT ASSY

2HC-F4700-21-00

$352.51

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

Unavailable

5

PLUG

2HC-F2417-00-00

$2.00

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

ADJUSTER ASSY

2HC-F7270-00-00

$393.62

8

BOLT, FLANGE

95817-08012-00

$3.98

9

COVER,2

2HC-F475X-01-00

$137.48

10

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

11

SEATBACKASSY

B5H-F4790-11-00

$620.99

12

SEAT ASSY

2HC-F4700-21-00

$352.51

13

FRAME, SEAT 2

2HC-F473D-01-00

$253.15

14

GROMMET

1XD-F4742-00-00

Unavailable

15

PLUG

2HC-F2417-00-00

$2.00

16

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

17

BOLT, FLANGE

95817-08012-00

$3.98
