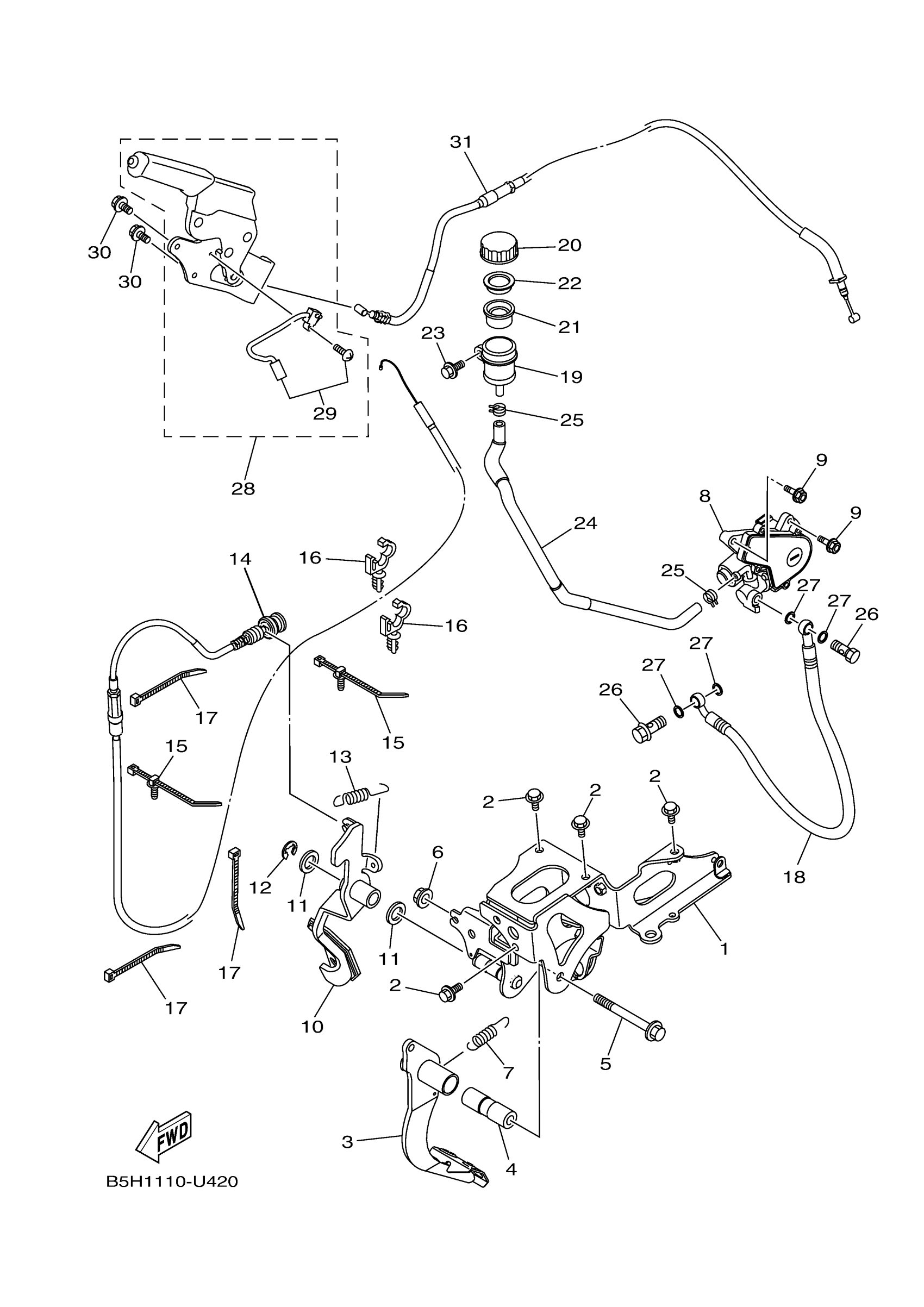

Yamaha YXZ10YESKW (YXZ1000R EPS SS SE) B5H4 2019 PEDAL WIRE Diagram

#

Description
Price

1

BRACKET,PEDL SUPRT

B57-F2548-01-00

$81.99

2

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

3

PEDAL, BRAKE

2HC-F7211-00-00

$53.99

4

COLLAR

90387-10843-00

Unavailable

5

95812-10090

95812-10090-00

$2.70

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

SPRING, TENSION

90506-23022-00

$5.49

8

CLUTCH ACTUATOR ASSY

B57-82460-03-00

$1,307.99

9

BOLT, WASHER BASED (11H)

90105-08211-00

$3.23

10

PEDAL, ACCELERATOR

2HC-F7871-00-00

$49.99

11

WASHER, PLATE

90201-15018-00

$7.49

12

CIRCLIP (122)

93430-12008-00

$8.49

13

SPRING, TENSION

90506-23022-00

$5.49

14

WIRE, THROTTLE 1

2HC-26311-13-00

$65.99

15

CLAMP

5B4-F1338-00-00

$3.33

16

CLAMP

90464-12830-00

Unavailable

17

CLAMP

90464-48800-00

Unavailable

18

HOSE, CLUTCH 1

B57-26472-00-00

Unavailable

19

TANK, RESERVOIR

5JJ-25894-01-00

Unavailable

20

CAP, RESERVOIR

3XP-25852-50-00

Unavailable

21

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

22

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

23

BOLT, WITH WASHER

90119-06137-00

Unavailable

24

HOSE, RESERVOIR

B57-25895-00-00

Unavailable

25

CLIP (7K7)

90467-11044-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

WASHER, PLATE(481)

90201-10118-00

Unavailable

28

PARKING LEVER ASSY

BDW-F5690-00-00

Unavailable

29

. SWITCH COMP

5UG-H251S-00-00

Unavailable

30

BOLT, FLANGE

95817-06012-00

Unavailable

31

WIRE, BRAKE 1

2HC-26341-01-00

Unavailable
