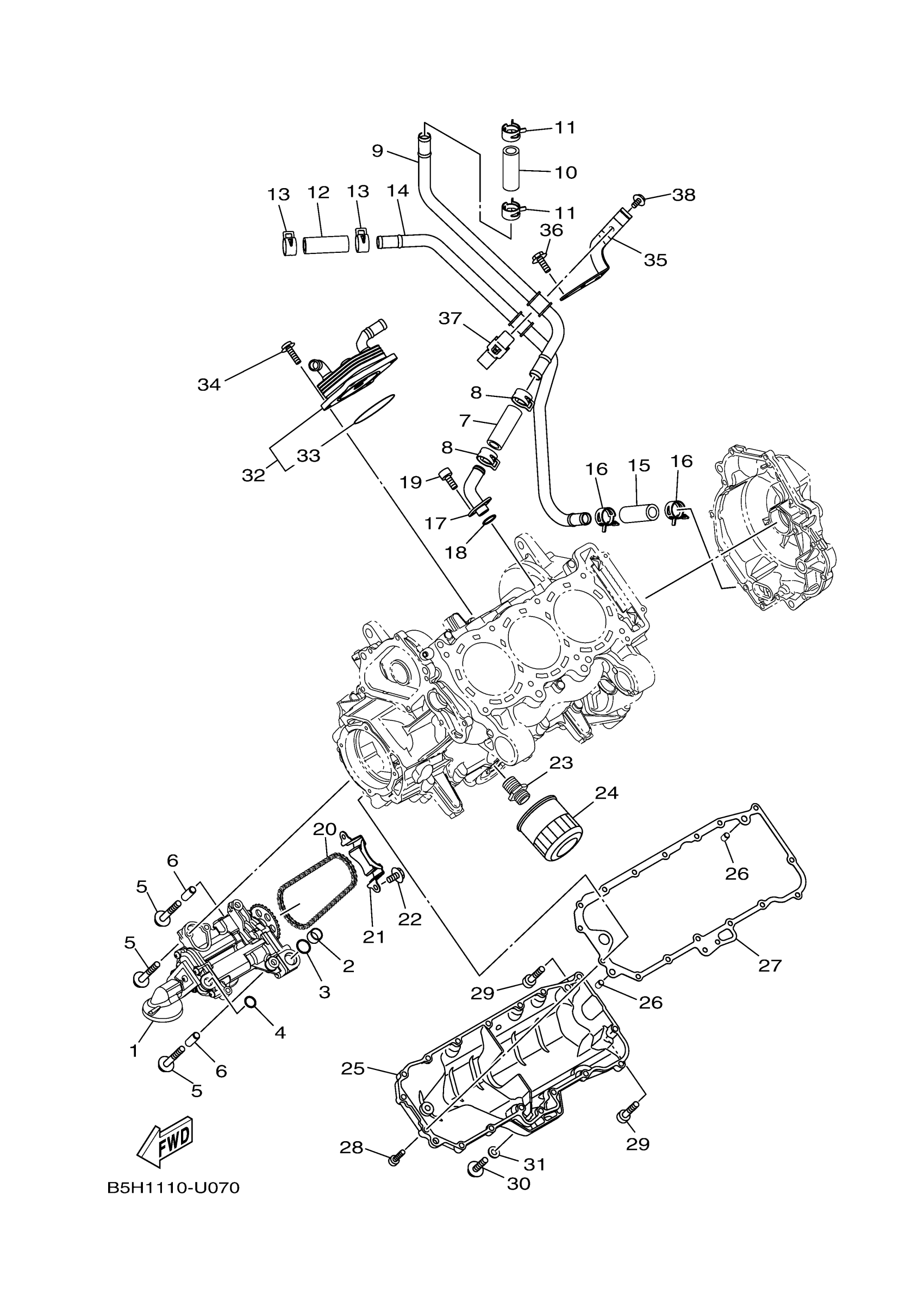

Yamaha YXZ10YESKW (YXZ1000R EPS SS SE) B5H4 2019 OIL PUMP Diagram
#
1
OIL PUMP ASSY
8GL-13300-00-00
$572.99
2
PIPE
8ES-13284-00-00
$4.68
3
O-RING (1L9)
93210-18322-00
$5.60
4
O-RING (26H)
93210-14579-00
$7.49
5
BOLT, FLANGE
95817-06040-00
$5.60
6
PIN, DOWEL(8AH)
91808-22019-00
$9.49
7
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
8
CLIP(34X)
90467-22097-00
$9.49
9
PIPE, OIL 1
2HC-E3416-00-00
$17.49
10
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
11
CLIP(34X)
90467-22097-00
$9.49
12
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
13
CLIP(34X)
90467-22097-00
$9.49
14
PIPE, OIL 2
2HC-E3418-00-00
$20.99
15
HOSE, OIL 1
2HC-E3464-00-00
Unavailable
16
CLIP(34X)
90467-22097-00
$9.49
17
CONNECTOR, SUCTION PIPE
8ES-13115-00-00
Unavailable
18
O-RING (26H)
93210-16629-00
Unavailable
19
BOLT(3MA)
91312-06016-00
Unavailable
20
CHAIN
94580-25064-00
Unavailable
21
HOLDER
8ES-13898-01-00
Unavailable
22
BOLT, FLANGE
95817-06012-00
Unavailable
23
BOLT, UNION
90401-20008-00
Unavailable
24
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
25
COVER, STRAINER
2HC-13417-00-00
Unavailable
26
PIN, DOWEL
99530-08012-00
Unavailable
27
GASKET, STRAINER C
2HC-13414-00-00
Unavailable
28
BOLT,SOCKET
91317-06025-00
Unavailable
29
BOLT,SOCKET
91317-06035-00
Unavailable
30
BOLT
90109-06031-00
Unavailable
31
GASKET (4V2)
90430-06166-00
Unavailable
32
OIL COOLER ASSY
2HC-13470-00-00
Unavailable
33
O-RING
2HC-13473-00-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
35
GUIDE, OIL HOSE
2HC-E3487-00-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
GUIDE, OIL HOSE 2
2HC-E3499-00-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
