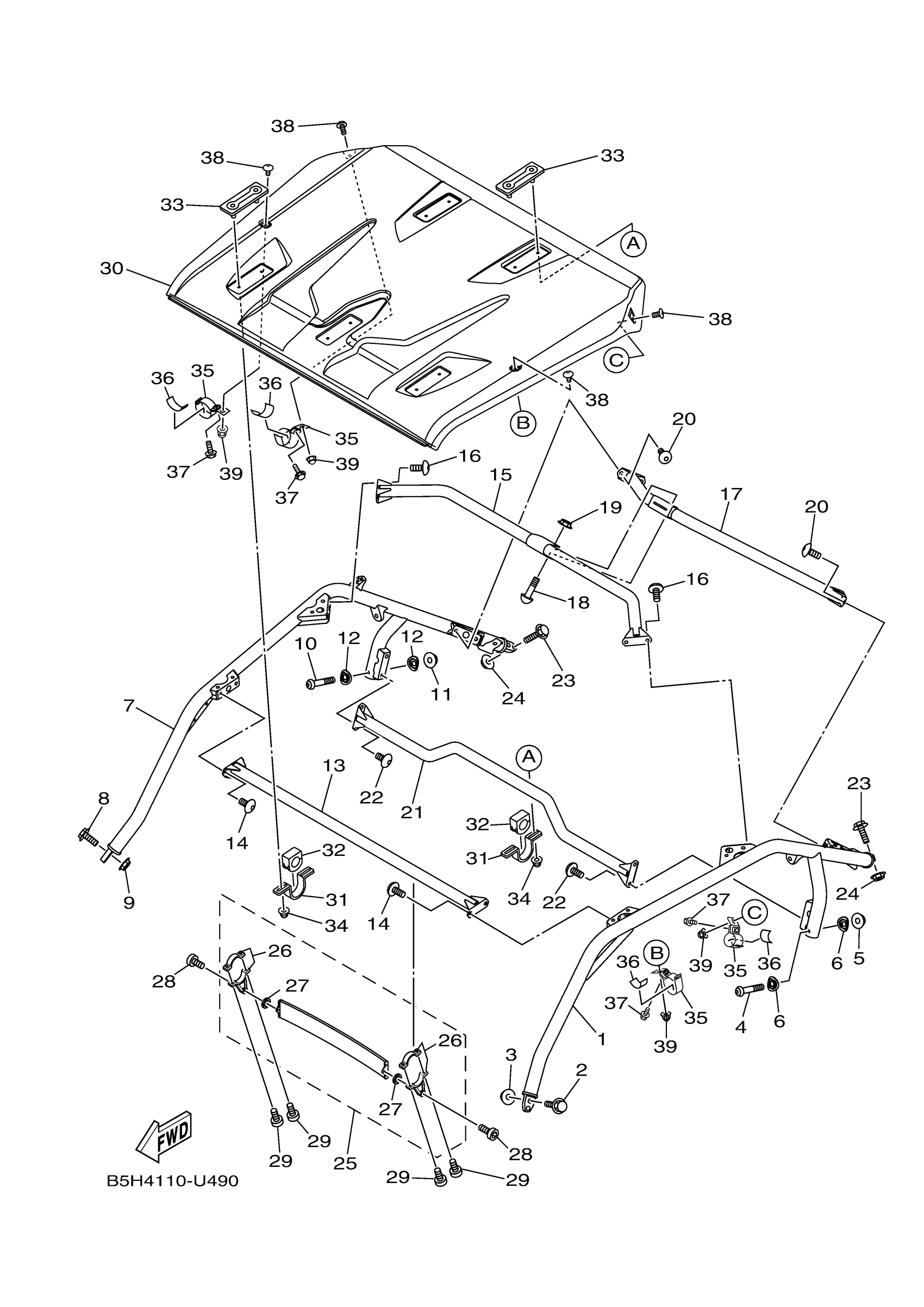

Yamaha YXZ10YESKW (YXZ1000R EPS SS SE) B5H4 2019 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

B5H-K831A-10-00

$220.76

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10060-00

$2.91

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

B5H-K831E-10-00

$220.76

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10060-00

$2.91

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

B5H-K8392-10-00

$79.47

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

ROOF SUPPORT ASSY

B5H-K830A-10-00

$130.14

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

ROOF SUPPORT ASSY

B5H-K830B-10-00

Unavailable

18

BOLT, BUTTON HEAD

92012-10060-00

$2.91

19

NUT, SELF-LOCKING

90185-10011-00

$3.67

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

B5H-K830C-10-00

Unavailable

22

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

23

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

24

NUT, SELF-LOCKING

90185-10011-00

$3.67

25

MIRROR KIT ASSY

2HC-F62A0-01-00

Unavailable

26

CLAMP 1

2HC-F53N5-01-00

Unavailable

27

BUSH

2HC-F7121-00-00

Unavailable

28

BOLT, HEXAGON SOCKET HEAD

90110-06854-00

$0.86

29

BOLT,SOCKET

91317-06012-00

Unavailable

30

COVER, SUN ROOF

B5H-K8314-01-00

$653.99

31

CLAMP, SUPPORT

B5H-K8366-00-00

Unavailable

32

DAMPER

1XP-K7588-00-00

Unavailable

33

PLATE, 1

B5H-K7577-01-00

Unavailable

34

NUT, CROWN

90176-06008-00

Unavailable

35

CLAMP

B5H-F481H-00-00

Unavailable

36

DAMPER

5UG-K7588-01-00

Unavailable

37

BOLT, FLANGE

95817-06012-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

Unavailable

39

NUT, CROWN

90176-06008-00

Unavailable
