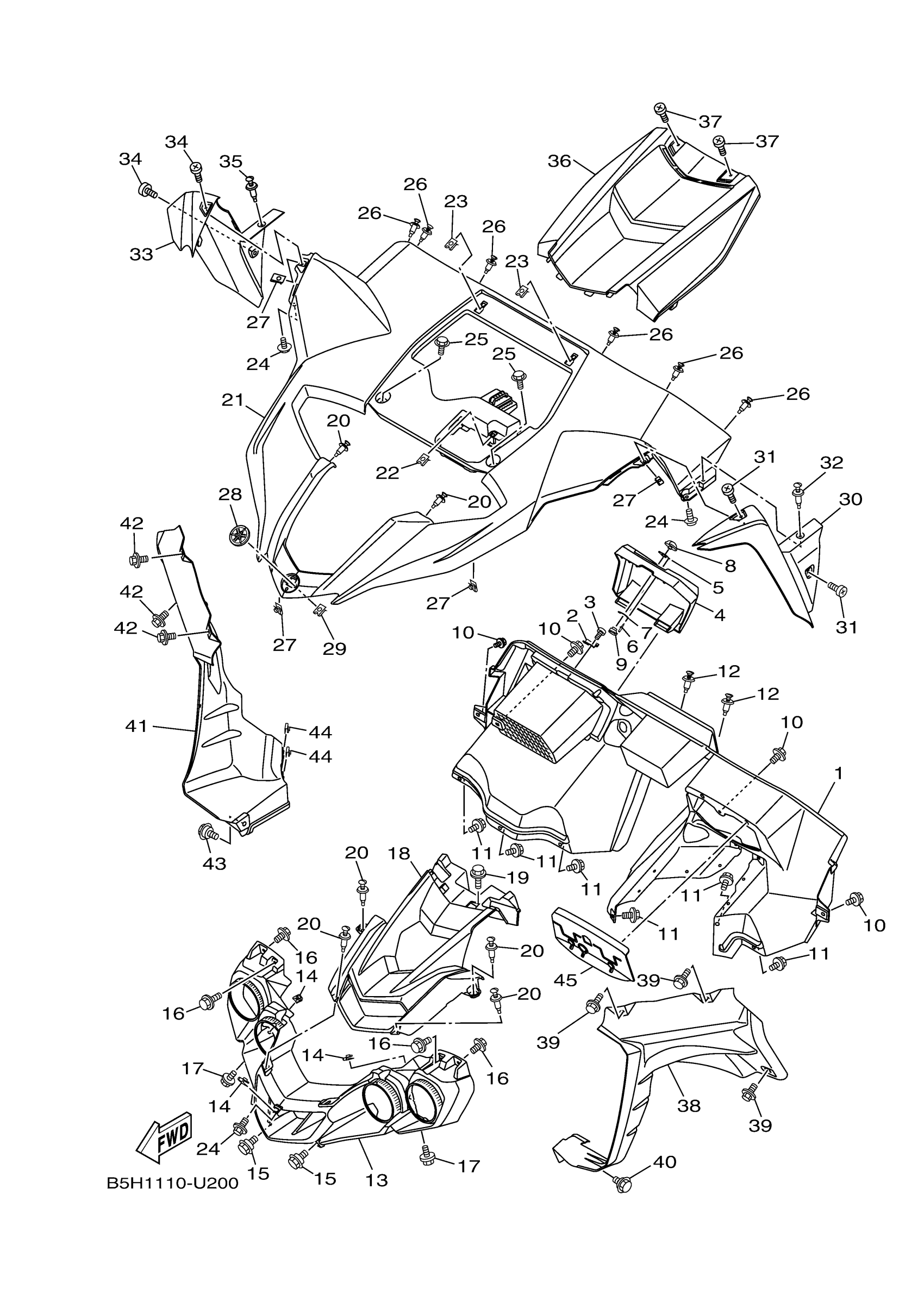

Yamaha YXZ10YESKW (YXZ1000R EPS SS SE) B5H4 2019 FRONT FENDER Diagram
#
Description
Price
1
PANEL, INSTRUMENT
2HC-K7711-11-00
Unavailable
5
WASHER, SPECIAL
1XD-F1515-00-00
Unavailable
13
GRILLE, FRONT
2HC-F8309-00-00
Unavailable
18
COVER, UPPER 1
B5H-F3121-10-00
Unavailable
28
TUNING FORK MARK
1XD-F175B-01-00
Unavailable
30
FLAP, FRONT FENDER
2HC-K8187-70-00
Unavailable
31
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
33
FLAP, FRONT FENDER
2HC-K818K-70-00
Unavailable
34
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
36
HOOD 1
B5H-F1982-10-00
Unavailable
37
BOLT, HEXAGON SOCKET HEAD(3HE)
90110-06200-00
Unavailable
38
COVER 1
2HC-E246A-00-00
Unavailable
41
COVER 2
2HC-E246E-00-00
Unavailable
