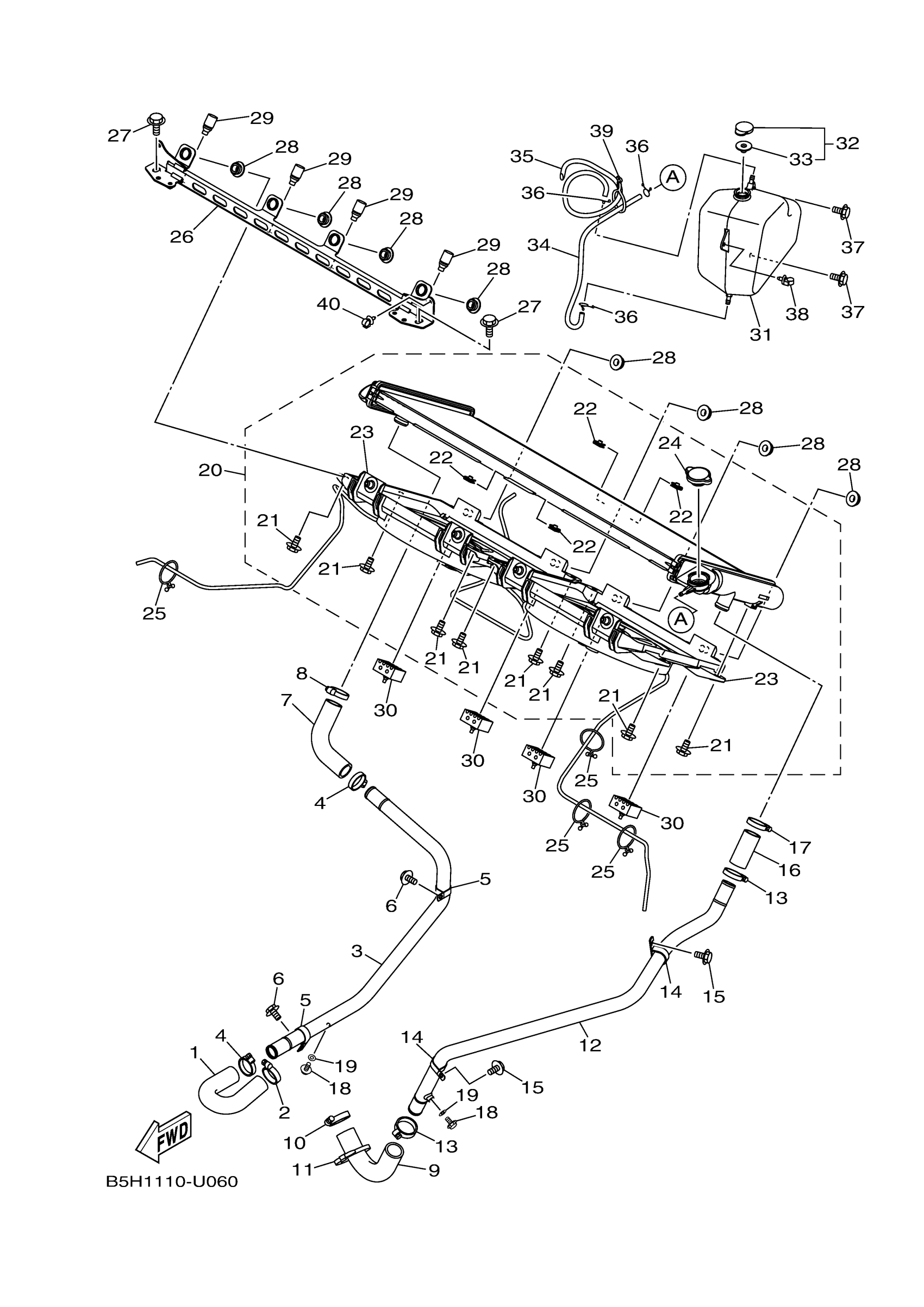

Yamaha YXZ10YESKL (YXZ1000R EPS SS SE) B5H1 2019 RADIATOR HOSE Diagram
#
1
HOSE 3
B5H-E2578-01-00
$11.49
2
HOSE CLAMP ASSY
90450-35001-00
$5.60
3
PIPE, WATER
B5H-E2564-01-00
$35.99
4
HOSE CLAMP ASSY
90450-35001-00
$5.60
5
CLAMP
90461-12801-00
$0.96
6
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
$2.13
7
HOSE 1
B5H-E2576-01-00
$9.49
8
HOSE CLAMP ASSY
90450-35001-00
$5.60
9
HOSE 2
B5H-E2577-02-00
$9.49
10
HOSE CLAMP ASSY(3GM)
90450-38040-00
$17.99
11
BAND, SWITCH CORD
25G-83936-01-00
$4.78
12
PIPE 3
B5H-E2483-00-00
$37.99
13
HOSE CLAMP ASSY
90450-35001-00
$5.60
14
CLAMP
90461-12801-00
$0.96
15
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
$2.13
16
HOSE 4
B5H-E2579-00-00
Unavailable
17
HOSE CLAMP ASSY
90450-35001-00
$5.60
18
BOLT, FLANGE
95022-06008-00
Unavailable
19
GASKET 256113960000
90430-06014-00
Unavailable
20
RADIATOR ASSY
B5H-E2460-07-00
Unavailable
21
BOLT, BLOWER HOLDI
1XD-E2675-00-00
Unavailable
22
NUT 1
B5H-E2671-00-00
Unavailable
23
BLOWER ASSY
B5H-E2405-01-00
Unavailable
24
CAP, RADIATOR
1XD-E2462-00-00
Unavailable
25
CLAMP(2LM)
90464-44109-00
Unavailable
26
BRACKET, WATER COO
B5H-E2518-00-00
Unavailable
27
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
28
GROMMET (4L0)
90480-18277-00
Unavailable
29
PAD
2MB-F8378-00-00
Unavailable
30
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
31
TANK, RECOVERY
B5H-F1871-00-00
Unavailable
32
CAP
1AA-21815-00-00
Unavailable
33
GASKET
1AA-21874-00-00
Unavailable
34
HOSE (L420)
90445-08840-00
Unavailable
35
HOSE (L508)
90445-081F1-00
Unavailable
36
CLIP 101235600
90467-08003-00
Unavailable
37
BOLT, SPECIAL 1
JW1-K6179-01-00
Unavailable
38
CLAMP
90464-12830-00
Unavailable
39
CLAMP
90464-14800-00
Unavailable
40
CLAMP
90464-12830-00
Unavailable
