Description

Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$42.99

2

INSULATOR 3

2HC-F172S-10-00

$63.99

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

5

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

PANEL, CONSOLE 2

2HC-F837M-00-00

$41.99

8

INSULATOR 4

2HC-F173S-11-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$8.49

10

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

11

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

14

TOP COVER COMP.

2HC-F171C-20-00

$258.99

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

17

NUT, SPRING

90183-060A6-00

Unavailable

18

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

19

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

20

COVER ASSY.

2HC-F1608-20-00

Unavailable

21

LID, COVER

2HC-F177B-A0-00

Unavailable

22

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

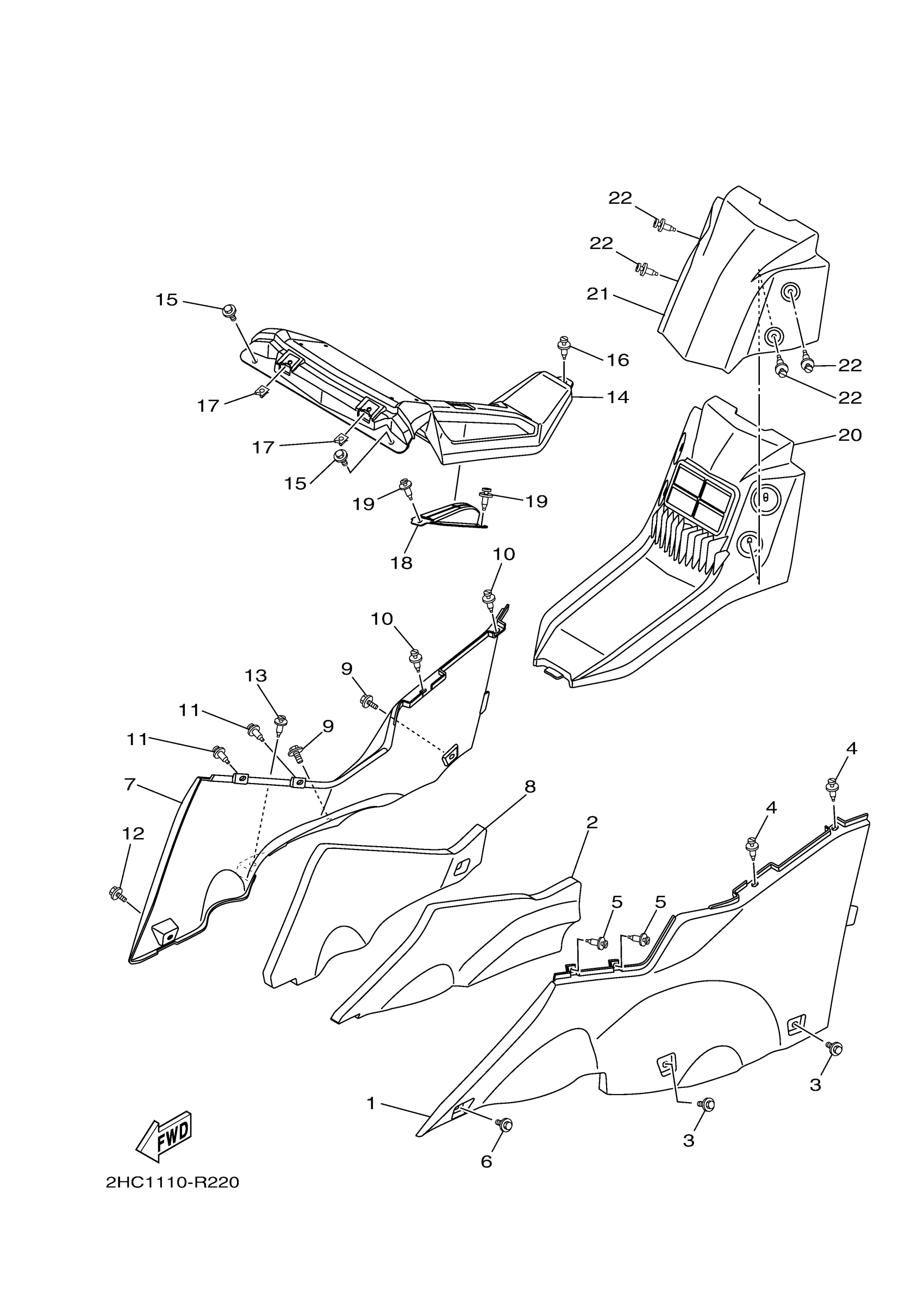

Yamaha YXZ10YESJW (YXZ1000R EPS SS SE) B0F4 2018 SIDE COVER 2 Diagram

PANEL, CONSOLE 1

INSULATOR 3

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

PANEL, CONSOLE 2

INSULATOR 4

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

RIVET,SPEC'L SHAPE

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

TOP COVER COMP.

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

NUT, SPRING

COVER, HANDLE LEVE

RIVET,SPEC'L SHAPE

COVER ASSY.

LID, COVER

RIVET,SPEC'L SHAPE
