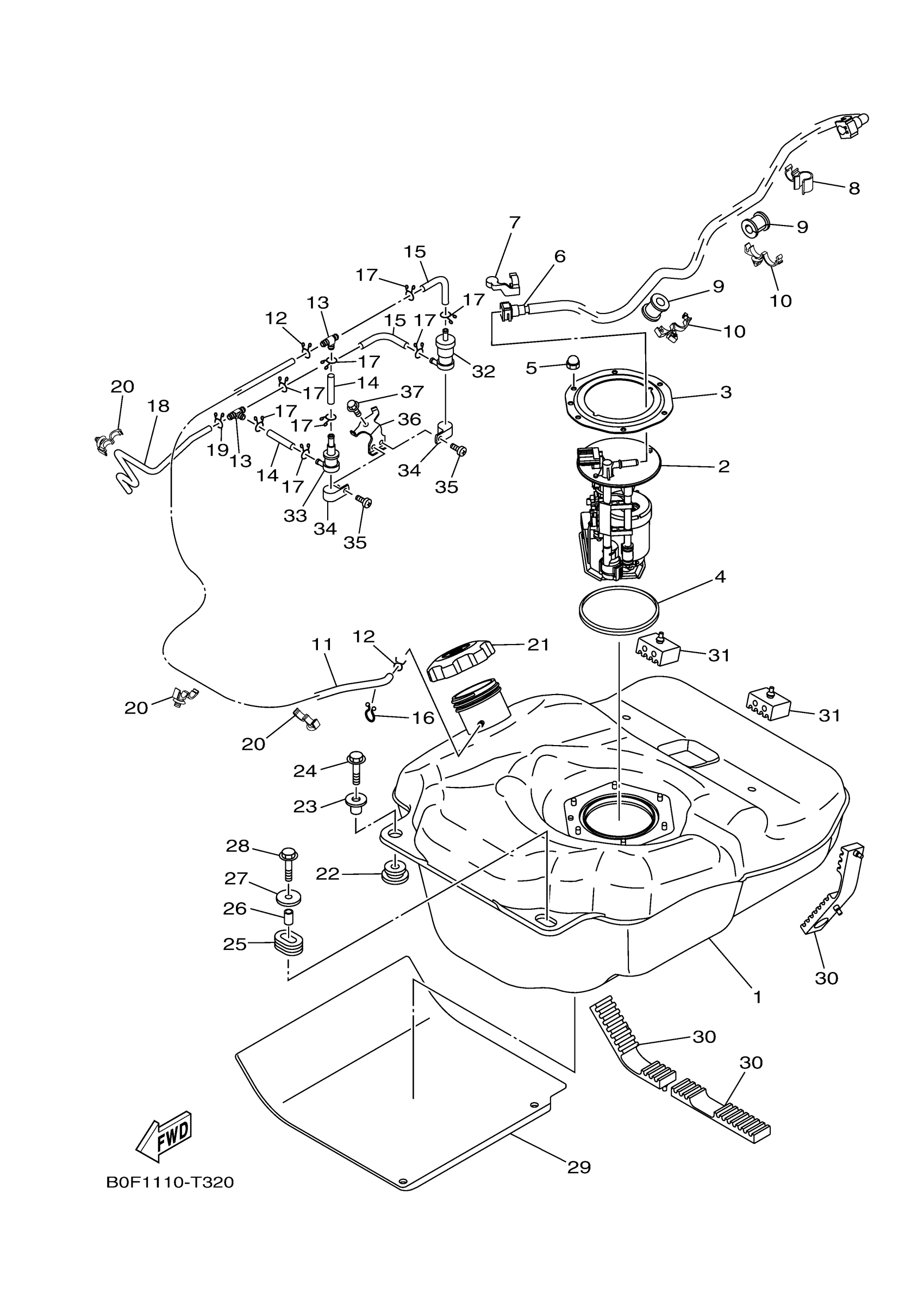

Yamaha YXZ10YESJW (YXZ1000R EPS SS SE) B0F4 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

2HC-F4110-00-00

$211.99

2

FUEL PUMP COMP.

B16-13907-03-00

$460.99

3

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

4

O-RING

1S3-24486-00-00

$17.49

5

NUT (J17)

95380-06800-00

$8.49

6

PIPE, FUEL 1

2HC-13971-02-00

Unavailable

7

CLAMP

90464-14004-00

$7.49

8

CLAMP

90464-15007-00

Unavailable

9

GROMMET(4CG)

90480-20543-00

$8.49

10

CLAMP

90464-20010-00

$3.23

11

TUBE 2

B57-F41B5-00-00

$40.99

12

CLIP

90467-090A2-00

$4.41

13

WAY 3

90413-06031-00

$9.49

14

HOSE

90445-09832-00

$2.87

15

TUBE

2HC-F4864-00-00

$3.59

16

CLAMP

90464-12M48-00

Unavailable

17

CLIP

90467-090A2-00

$4.41

18

TUBE

2HC-F510T-00-00

Unavailable

19

CLIP

90467-090A2-00

$4.41

20

CLAMP

90464-12830-00

Unavailable

21

CAP ASSY

BVG-24610-00-00

Unavailable

22

GROMMET

90480-18016-00

Unavailable

23

COLLAR

90387-07021-00

Unavailable

24

BOLT, FLANGE

95817-06030-00

Unavailable

25

GROMMET(38W)

90480-01400-00

Unavailable

26

COLLAR(2UJ)

90387-061V1-00

Unavailable

27

WASHER (23T)

90201-065G8-00

Unavailable

28

BOLT, FLANGE

95817-06030-00

Unavailable

29

DAMPER, PLATE 1

2HC-F414H-00-00

Unavailable

30

DAMPER, LOCATING 1

2HC-F4181-00-00

Unavailable

31

DAMPER, LOCATING 2

2MB-F4182-00-00

Unavailable

32

ROLL OVER VALVE ASSY

5RB-24180-00-00

Unavailable

33

ROLL OVER VALVE ASSY

3UH-24180-00-00

Unavailable

34

CLAMP

90464-15014-00

Unavailable

35

SCREW, BINDING

98907-05012-00

Unavailable

36

BRACKET, CANISTOR

2HC-F419F-00-00

Unavailable

37

BOLT, FLANGE

95817-06012-00

Unavailable
