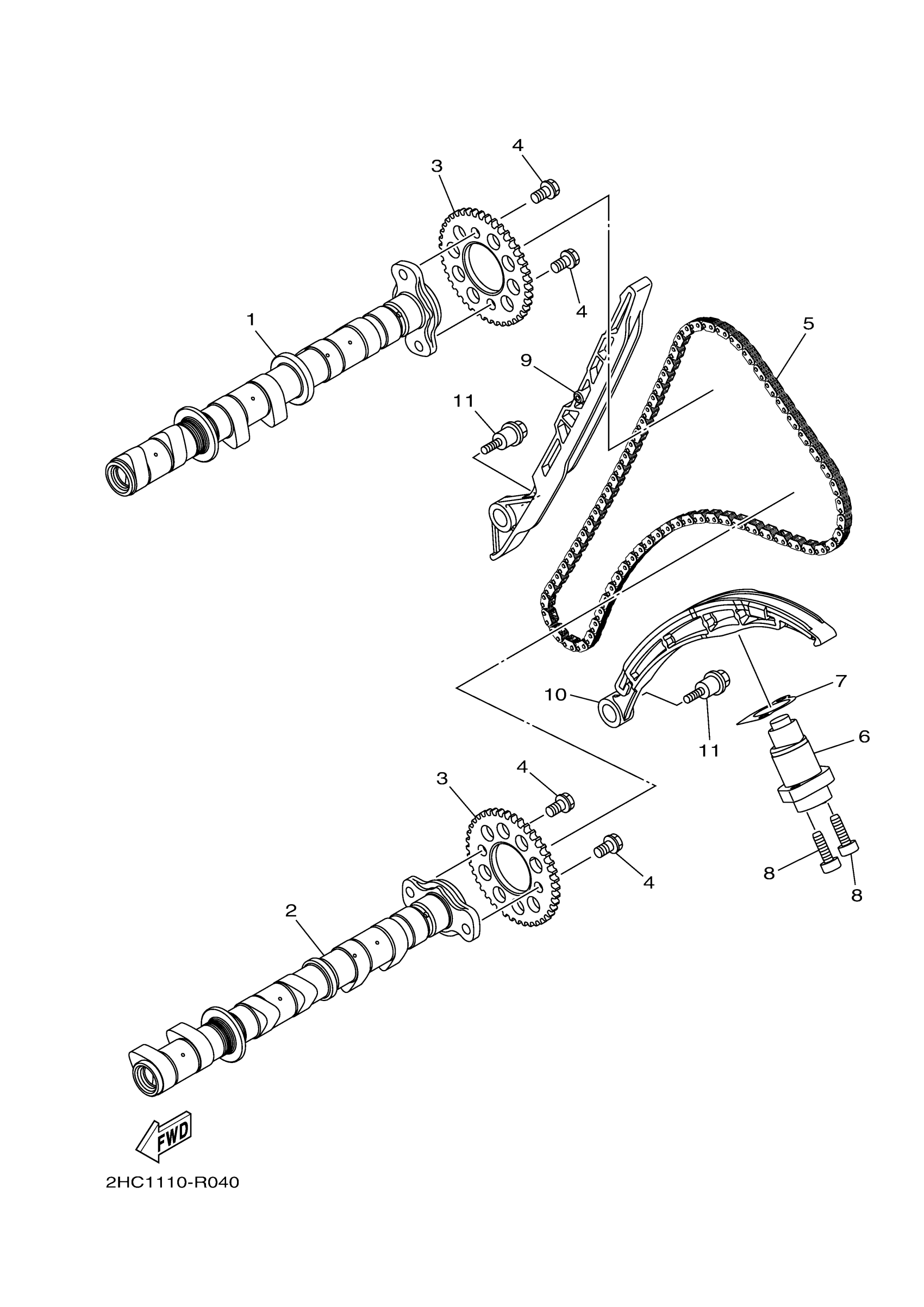

Yamaha YXZ10YESJW (YXZ1000R EPS SS SE) B0F4 2018 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

2HC-12170-00-00

$245.99

2

CAMSHAFT ASSY 2

2HC-12180-00-00

Unavailable

3

SPROCKET, CAM CHAI

2HC-12176-00-00

$41.99

4

BOLT, FLANGE

90105-07004-00

$5.60

5

CHAIN

94591-57140-00

$40.99

6

TENSIONER ASSY, CAM CHAIN

2HC-12210-00-00

$97.99

7

GASKET, TENSIONER CASE

2C0-12213-00-00

$7.99

8

BOLT, HEXAGON SOCKET HEAD

90110-06335-00

$7.49

9

DAMPER, CHAIN 1

8GL-12251-01-00

$30.99

10

DAMPER, CHAIN 2

2HC-12252-00-00

$70.99

11

BOLT

90109-06297-00

$5.60
