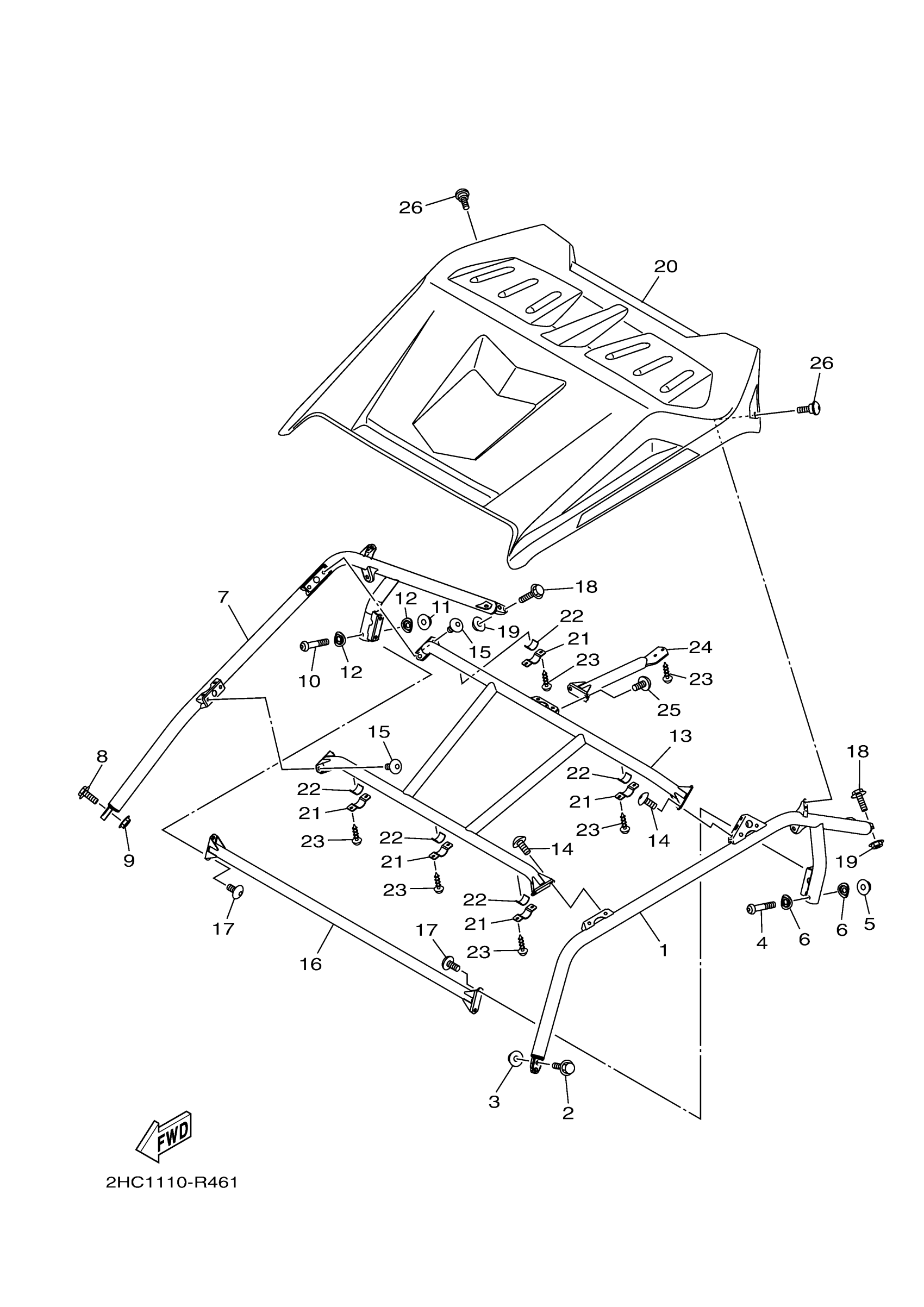

Yamaha YXZ10YESJL (YXZ1000R EPS SS SE) B0F1 2018 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

2HC-K831A-40-00

$126.69

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

3

NUT, SELF-LOCKING

90185-10011-00

$3.76

4

BOLT, BUTTON HEAD

92012-10060-00

$2.87

5

NUT, SELF-LOCKING

90185-10011-00

$3.76

6

WASHER 2

5UG-K7526-00-00

$3.95

7

SUPPORT, ROOF 4

2HC-K831E-40-00

$128.54

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

9

NUT, SELF-LOCKING

90185-10011-00

$3.76

10

BOLT, BUTTON HEAD

92012-10060-00

$2.87

11

NUT, SELF-LOCKING

90185-10011-00

$3.76

12

WASHER 2

5UG-K7526-00-00

$3.95

13

MEMBER, ROOF FRAME

2HC-K8392-20-00

$112.93

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

15

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

16

ROOF SUPPORT ASSY

2HC-K830A-20-00

Unavailable

17

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

18

BOLT, FLANGE (8V9)

95812-10045-00

$3.43

19

NUT, SELF-LOCKING

90185-10011-00

$3.76

20

COVER, SUN ROOF

2HC-K8314-10-00

$438.99

21

CLAMP,SUPPORT

2HC-K8366-01-00

Unavailable

22

DAMPER

5UG-K7588-01-00

Unavailable

23

SCREW, TAPPING

90167-06800-00

Unavailable

24

ROOF SUPPORT ASSY

2HC-K830B-20-00

Unavailable

25

BOLT,HEX. SOCKET B

90111-10802-00

$2.25

26

BOLT

90109-06253-00

Unavailable
