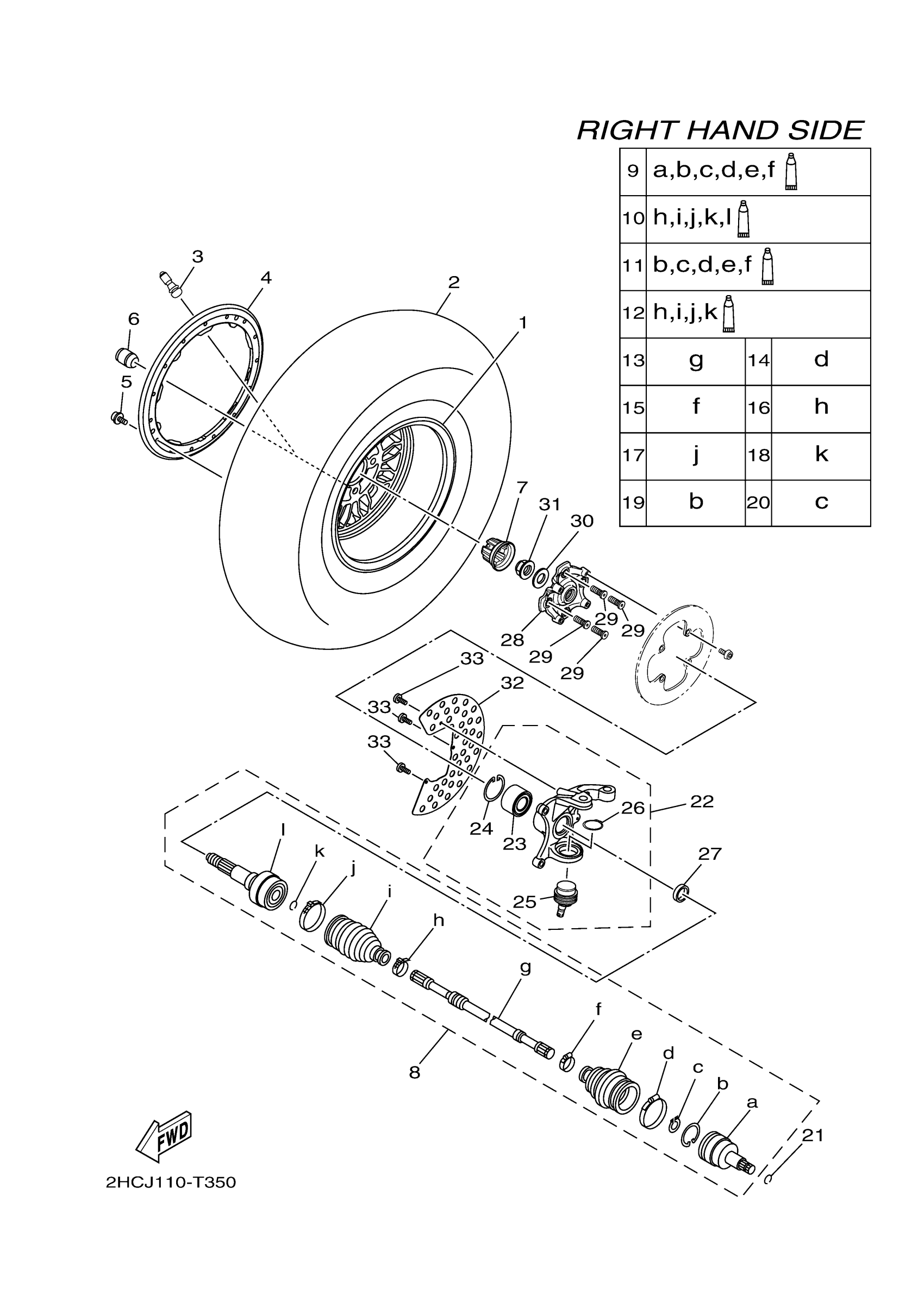

Yamaha YXZ10YESJL (YXZ1000R EPS SS SE) B0F1 2018 FRONT WHEEL 2 Diagram

#

Description
Price

1

WHEEL,CAST FRONT

2HC-F5168-51-00

Unavailable

2

TIRE (27X9.00R14 MU9C 8PR TL)

94109-14812-00

$236.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

PLATE, LOCK

2HC-F4658-30-00

$148.53

5

BOLT, FLANGE

90105-068C3-00

$1.29

6

NUT, CROWN

90176-12800-00

$2.98

7

CAP, WHEEL

2HC-F512A-00-00

$2.69

8

DRIVE SHAFT ASSY

2HC-2518F-01-00

$191.14

9

DOUBLE OFF SET JOINT

2HC-2510J-01-00

$313.89

10

BALL JOINT SET

2HC-2510F-01-00

$492.95

11

BOOT SET(DOUBLE OF

2HC-2510H-01-00

$43.08

12

BOOT SET (BALL JOINT)

2HC-2510G-01-00

$44.11

13

SHAFT

2HC-2518E-00-00

Unavailable

14

BOOT BAND(DOUBLE OFFSET JOINT)

2HC-2511H-00-00

$7.18

15

BOOT BAND(DOUBLE OFFSET JOINT)

2HC-2511G-00-00

$5.20

16

BOOT BAND (BALL JOINT)

2HC-2510U-00-00

Unavailable

17

BOOT BAND (SMALL)

2HC-2512G-10-00

Unavailable

18

CIRCLIP

2HC-2512H-00-00

Unavailable

19

CIRCLIP

3B4-25182-00-00

Unavailable

20

SNAP RING

3B4-2512J-00-00

Unavailable

21

CIRCLIP(2HR)

93450-22119-00

Unavailable

22

STEERING KNUCKLE A

2HC-F3502-10-00

Unavailable

23

BEARING

93305-00602-00

Unavailable

24

CIRCLIP

99009-55500-00

Unavailable

25

BALL JOINT 2

2HC-23579-00-00

Unavailable

26

CIRCLIP

93410-42096-00

Unavailable

27

COLLAR

90387-30008-00

Unavailable

28

HUB, FRONT

2HC-F5111-02-00

$79.76

29

BOLT, SERRATION

90114-12005-00

Unavailable

30

WASHER, PLATE

90201-25023-00

Unavailable

31

NUT

90179-24006-00

Unavailable

32

RING, WHEEL 1

2HC-F514A-00-00

Unavailable

33

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
