Description

Price

1

STEERING ASSY

2HC-F3400-04-00

$228.99

2

PINION

2HC-F38G0-00-00

$38.99

3

SEAL

1XD-F3844-00-00

$4.94

4

COVER,ADJUST

1XD-F387G-00-00

Unavailable

5

SPRING,PRESSURE

1XD-F387K-00-00

Unavailable

6

PAD,PRESSURE

1XD-F387F-00-00

Unavailable

7

RING,STOPPER

1XD-F387J-00-00

Unavailable

8

SEAL 1 W/ BAND SET OF 2

1XD-F1208-00-00

Unavailable

9

BAND

1XD-F3489-00-00

$2.81

10

RACK END SET

2HC-F38H0-00-00

Unavailable

11

LOCK ASSY

1XD-F178K-00-00

Unavailable

12

WASHER

1XD-F3165-00-00

$1.92

13

CLIP

1XD-F3447-00-00

$1.92

14

BOLT, FLANGE

95022-10030-00

$7.49

15

JOINT, UNIVERSAL 1

2HC-23841-00-00

$106.99

16

NUT 1

2HC-F3833-00-00

Unavailable

17

STEERING SHAFT ASS

2HC-F3840-00-00

Unavailable

18

BOLT, SOCKET

91317-08025-00

Unavailable

19

WASHER, PLATE(3XP)

90201-083P5-00

Unavailable

20

NUT, CASTLE

90171-12001-00

Unavailable

21

WASHER, PLATE

90201-12045-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

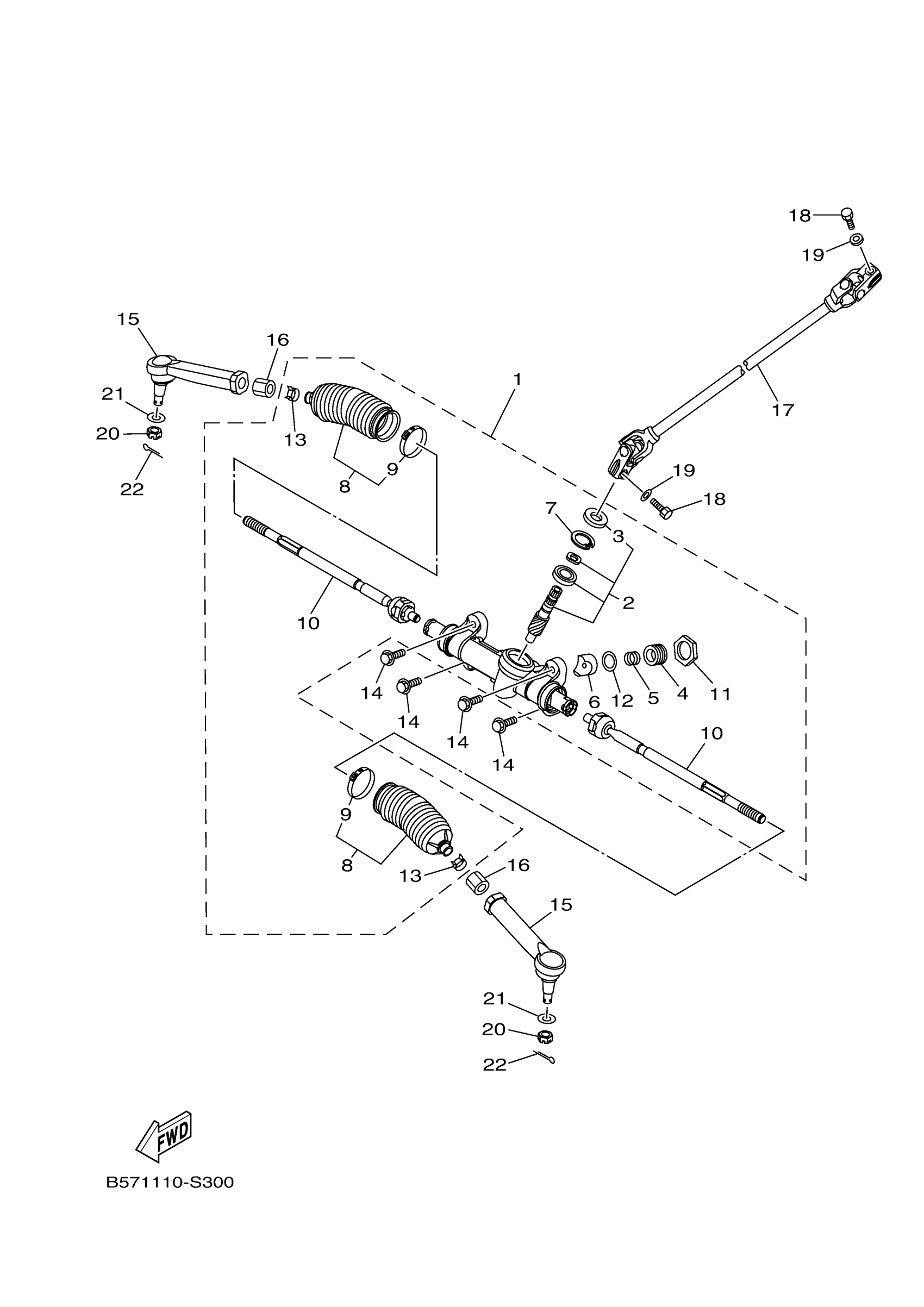

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 STEERING Diagram

STEERING ASSY

PINION

SEAL

COVER,ADJUST

SPRING,PRESSURE

PAD,PRESSURE

RING,STOPPER

SEAL 1 W/ BAND SET OF 2

BAND

RACK END SET

LOCK ASSY

WASHER

CLIP

BOLT, FLANGE

JOINT, UNIVERSAL 1

NUT 1

STEERING SHAFT ASS

BOLT, SOCKET

WASHER, PLATE(3XP)

NUT, CASTLE

WASHER, PLATE

PIN, COTTER
