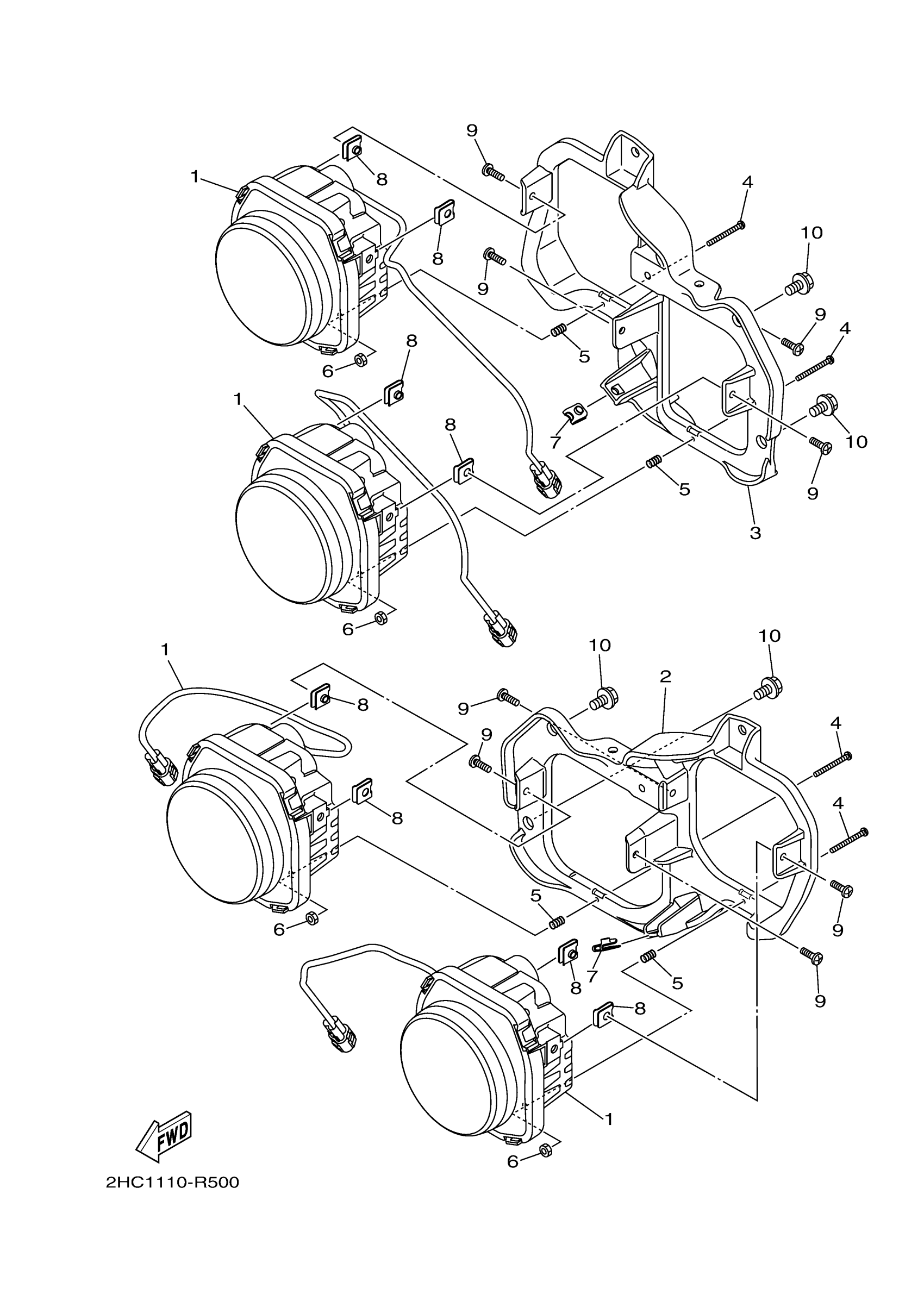

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

2UD-84300-00-00

$267.17

2

STAY, HEAD LIGHT 1

2HC-F831V-00-00

$39.71

3

STAY, HEAD LIGHT 2

2HC-F832V-00-00

$39.71

4

SCREW, PAN HEAD

98502-03530-00

$2.31

5

SPRING, COMPRESSION (4G0)

90501-08614-00

$1.76

6

NUT, ADJUSTING

2GU-84334-00-00

$5.05

7

NUT, SPRING

90183-060A6-00

$3.90

8

NUT, SPRING

90183-05008-00

$6.22

9

SCREW, BIND (8K2)

98902-05016-00

$1.15

10

BOLT, FLANGE(JN5)

95817-08016-00

$3.85
