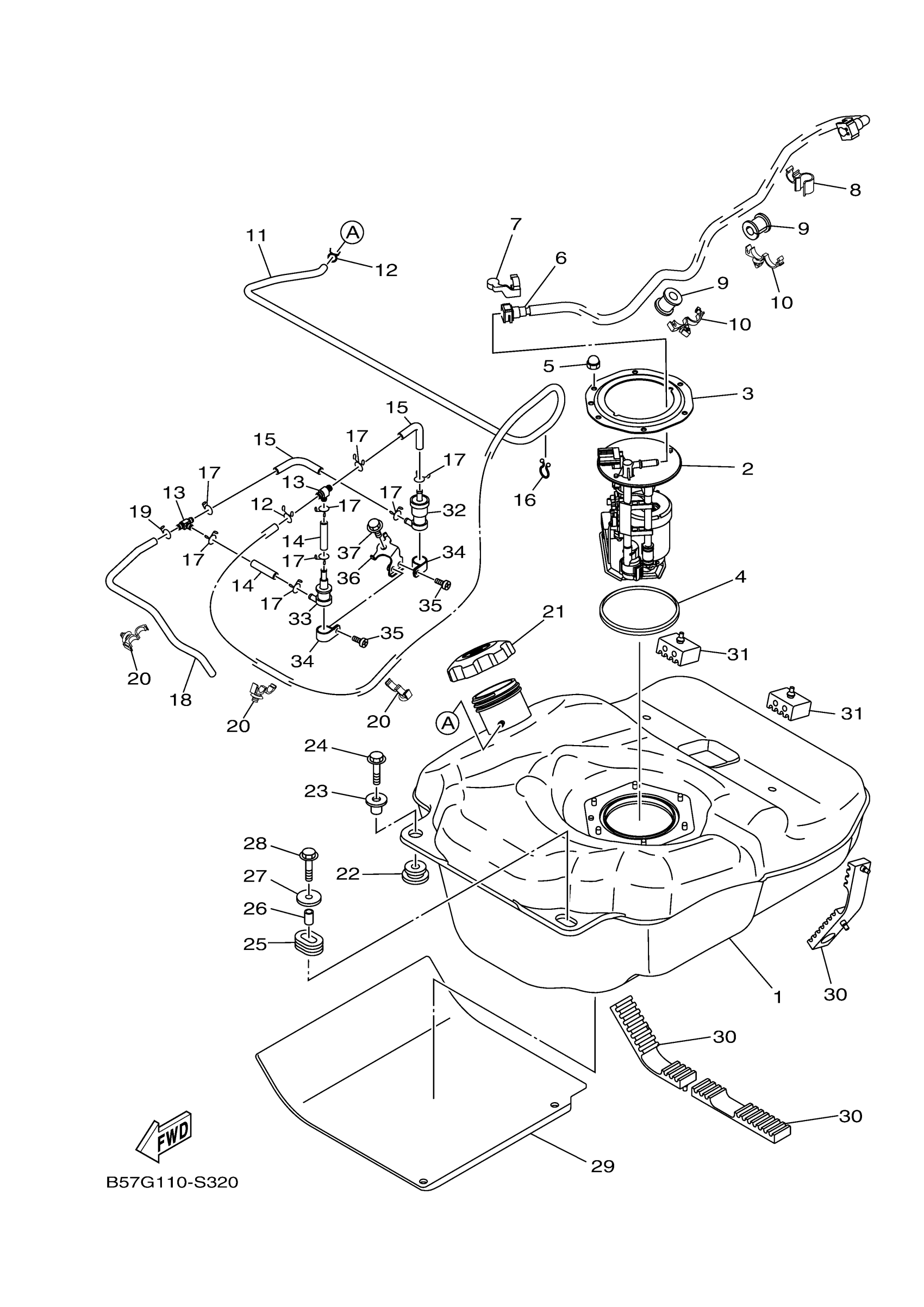

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 FUEL TANK Diagram
#
1
FUEL TANK COMP.
2HC-F4110-00-00
$211.99
2
FUEL PUMP COMP.
B16-13907-03-00
$460.99
3
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
4
O-RING
1S3-24486-00-00
$17.49
5
NUT (J17)
95380-06800-00
$8.49
6
PIPE, FUEL 1
2HC-13971-02-00
Unavailable
7
CLAMP
90464-14004-00
$7.49
8
CLAMP
90464-15007-00
Unavailable
9
GROMMET(4CG)
90480-20543-00
$8.49
10
CLAMP
90464-20010-00
$3.23
11
TUBE 2
B57-F41B5-00-00
$40.99
12
CLIP
90467-090A2-00
$4.41
13
WAY 3
90413-06031-00
$9.49
14
HOSE
90445-09832-00
$2.87
15
TUBE
2HC-F4864-00-00
$3.59
16
CLAMP
90464-12M48-00
Unavailable
17
CLIP
90467-090A2-00
$4.41
18
TUBE
2HC-F510T-00-00
Unavailable
19
CLIP
90467-090A2-00
$4.41
20
CLAMP
90464-12830-00
Unavailable
21
CAP ASSY
BVG-24610-00-00
Unavailable
22
GROMMET
90480-18016-00
Unavailable
23
COLLAR
90387-07021-00
Unavailable
24
BOLT, FLANGE
95817-06030-00
Unavailable
25
GROMMET(38W)
90480-01400-00
Unavailable
26
COLLAR(2UJ)
90387-061V1-00
Unavailable
27
WASHER (23T)
90201-065G8-00
Unavailable
28
BOLT, FLANGE
95817-06030-00
Unavailable
29
DAMPER, PLATE 1
2HC-F414H-00-00
Unavailable
30
DAMPER, LOCATING 1
2HC-F4181-00-00
Unavailable
31
DAMPER, LOCATING 2
2MB-F4182-00-00
Unavailable
32
ROLL OVER VALVE ASSY
5RB-24180-00-00
Unavailable
33
ROLL OVER VALVE ASSY
3UH-24180-00-00
Unavailable
34
CLAMP
90464-15014-00
Unavailable
35
SCREW, BINDING
98907-05012-00
Unavailable
36
BRACKET, CANISTOR
2HC-F419F-00-00
Unavailable
37
BOLT, FLANGE
95817-06012-00
Unavailable
