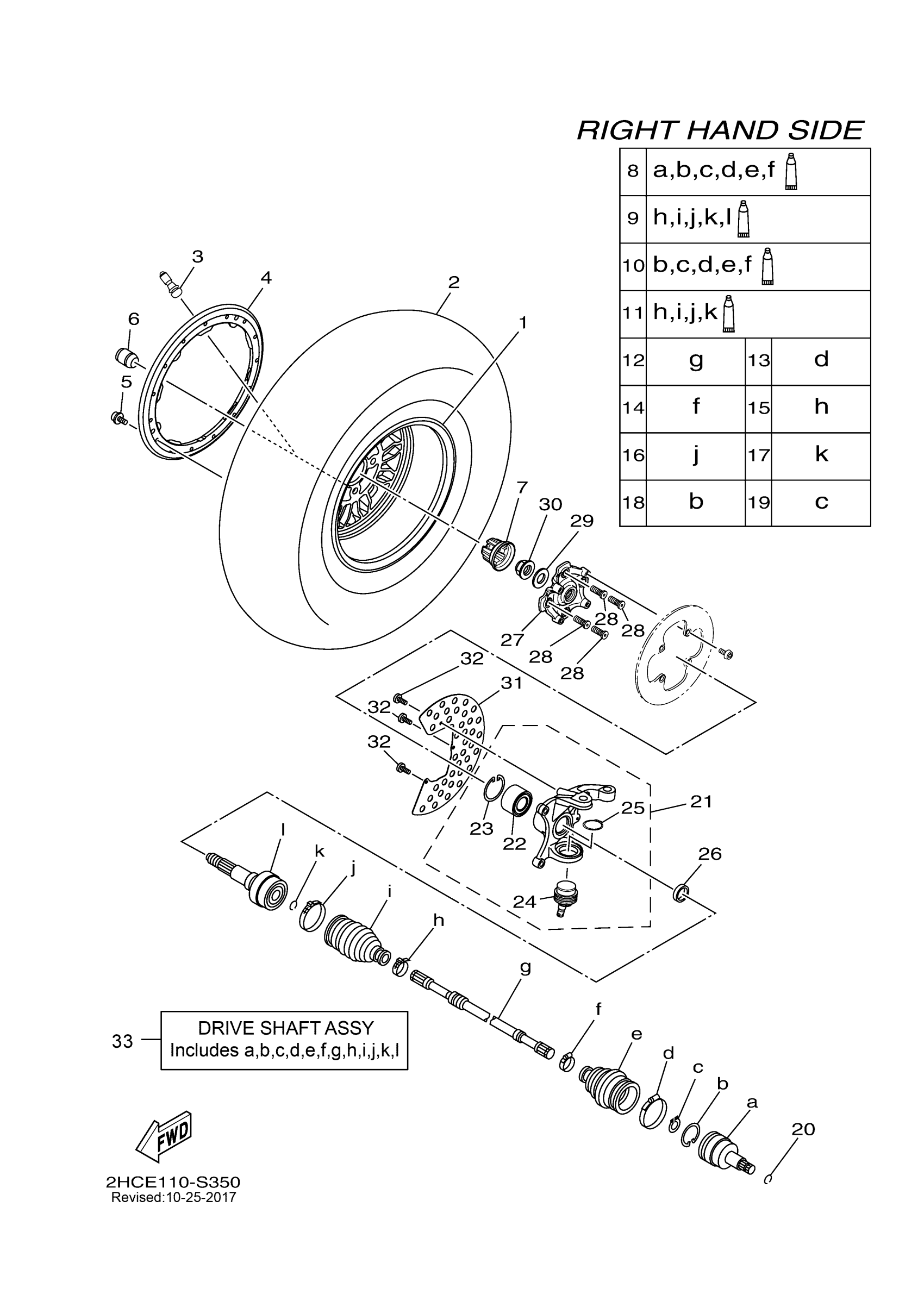

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 FRONT WHEEL 2 Diagram
#
1
WHEEL,CAST FRONT
2HC-F5168-51-00
Unavailable
2
TIRE (27X9.00R14 MU09 6PR TL)
94109-14809-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
PLATE, LOCK
2HC-F4658-30-00
$176.99
5
BOLT, FLANGE
90105-068C3-00
$2.92
6
NUT, CROWN
90176-12800-00
$7.49
7
CAP, WHEEL
2HC-F512A-00-00
$3.02
8
DOUBLE OFF SET JOINT
2HC-2510J-01-00
$297.99
9
BALL JOINT SET
2HC-2510F-01-00
$504.99
10
BOOT SET(DOUBLE OF
2HC-2510H-01-00
$55.99
11
BOOT SET (BALL JOINT)
2HC-2510G-01-00
$48.99
12
SHAFT
2HC-2518E-00-00
Unavailable
13
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511H-00-00
$9.99
14
BOOT BAND(DOUBLE OFFSET JOINT)
2HC-2511G-00-00
$6.99
15
BOOT BAND (BALL JOINT)
2HC-2510U-00-00
$6.99
16
BOOT BAND (SMALL)
2HC-2512G-10-00
Unavailable
17
CIRCLIP
2HC-2512H-00-00
Unavailable
18
CIRCLIP
3B4-25182-00-00
Unavailable
19
SNAP RING
3B4-2512J-00-00
Unavailable
20
CIRCLIP(2HR)
93450-22119-00
Unavailable
21
STEERING KNUCKLE A
2HC-F3502-10-00
Unavailable
22
BEARING
93305-00602-00
Unavailable
23
CIRCLIP
99009-55500-00
Unavailable
24
BALL JOINT 2
2HC-23579-00-00
Unavailable
25
CIRCLIP
93410-42096-00
Unavailable
26
COLLAR
90387-30008-00
Unavailable
27
HUB, FRONT
2HC-F5111-02-00
Unavailable
28
BOLT, SERRATION
90114-12005-00
Unavailable
29
WASHER, PLATE
90201-25023-00
Unavailable
30
NUT
90179-24006-00
Unavailable
31
RING, WHEEL 1
2HC-F514A-00-00
Unavailable
32
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
33
DRIVE SHAFT ASSY
2HC-2518F-01-00
Unavailable
