Description

Price

1

FRAME COMP.

2HC-F1110-40-00

Unavailable

2

FRAME SUB COMP.

B57-F111B-00-00

Unavailable

3

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

4

BOLT, FLANGE

90105-08867-00

$15.99

5

ENG. MOUNT COMP.

2HC-F110A-20-00

Unavailable

6

BOLT, FLANGE

95812-10016-00

$9.49

7

BOLT, FLANGE

95812-12070-00

$4.99

8

NUT, SELF-LOCKING

90185-12002-00

$12.49

9

YBS66-12 WASHER,PLAIN

92990-12200-00

$8.49

10

BOLT, FLANGE

95812-08020-00

$2.80

11

BOLT, FLANGE

95817-08055-00

$4.21

12

BOLT, FLANGE

90105-10176-00

$12.49

13

NUT, S/L FLANGE

95602-10200-00

$4.82

14

BRACKET, SEAT

2HC-F1349-11-00

$20.99

15

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

16

STAY, MUFFLER

2HC-F194J-00-00

Unavailable

17

BOLT, FLANGE

95812-10016-00

$9.49

18

BRKT

2HC-F115C-01-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

TOOL KIT

5B4-F8100-00-00

Unavailable

21

GAUGE, AIR

1XD-F811A-00-00

Unavailable

22

POUCH

1P0-F8186-01-00

Unavailable

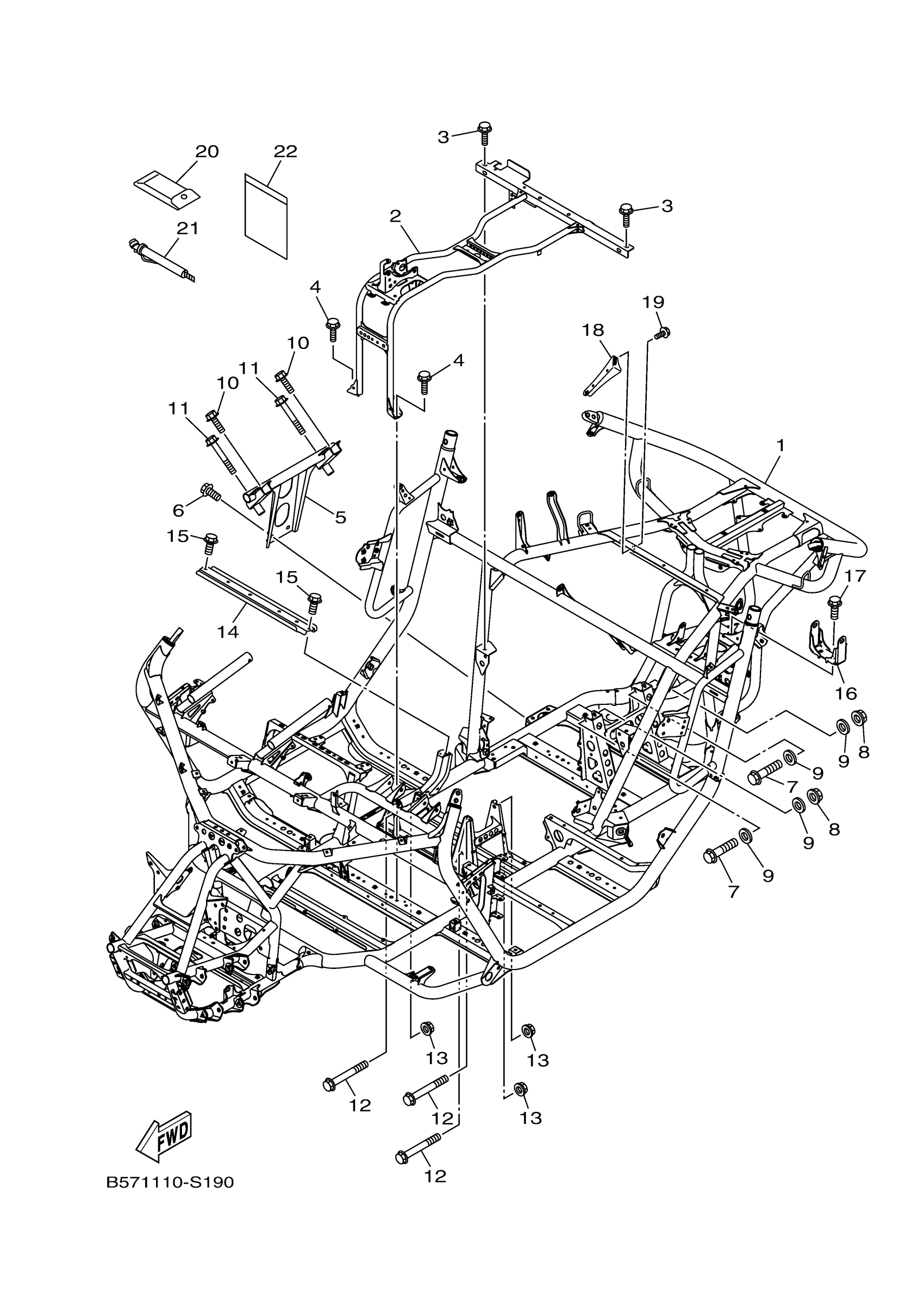

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 FRAME Diagram

FRAME COMP.

FRAME SUB COMP.

BOLT, FLANGE(JN5)

BOLT, FLANGE

ENG. MOUNT COMP.

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING

YBS66-12 WASHER,PLAIN

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

NUT, S/L FLANGE

BRACKET, SEAT

BOLT, FLANGE(4LN)

STAY, MUFFLER

BOLT, FLANGE

BRKT

BOLT, FLANGE

TOOL KIT

GAUGE, AIR

POUCH
