Description

Price

1

MAIN SWITCH ASSY

1XD-H2510-11-00

$32.99

2

CAP, KEY

5UG-H2579-00-00

$9.99

3

CLAMP(53Y)

90464-15065-00

Unavailable

4

CLAMP

90464-12830-00

$1.49

5

CLAMP

90464-14800-00

$3.40

6

CLAMP

90464-25826-00

Unavailable

7

CLAMP

90464-20804-00

Unavailable

8

CLAMP (8M1)

90464-30040-00

$8.49

9

CLAMP

5B4-F1338-00-00

$3.33

10

CLAMP

1NS-F1338-00-00

$3.33

11

CLAMP(JN6)

90464-40825-00

$3.05

12

CLAMP

90464-48800-00

Unavailable

13

CLAMP

90464-51800-00

$14.99

14

CLAMP(2LM)

90464-44109-00

$3.66

15

TERMINAL COMP.

1HP-H254B-10-00

$18.99

16

SWITCH, LAMP

2HC-82526-01-00

Unavailable

17

SWITCH, SELECT

2HC-87280-01-00

Unavailable

18

LEAN ANGLE SENSOR

3B4-82576-00-00

Unavailable

19

BOLT(6A1)

97095-05016-00

Unavailable

20

WASHER, PLAIN (646)

92990-05600-00

Unavailable

21

ROOM LIGHT ASSY

2HC-H5440-00-00

Unavailable

22

SWITCH

2HC-H2917-01-00

Unavailable

23

PILOT LIGHT ASSY

1XD-H3530-00-00

Unavailable

24

BUZZER

2MB-83383-00-00

Unavailable

25

BOLT(3JK)

97027-05020-00

Unavailable

26

WASHER, PLAIN (646)

92990-05600-00

Unavailable

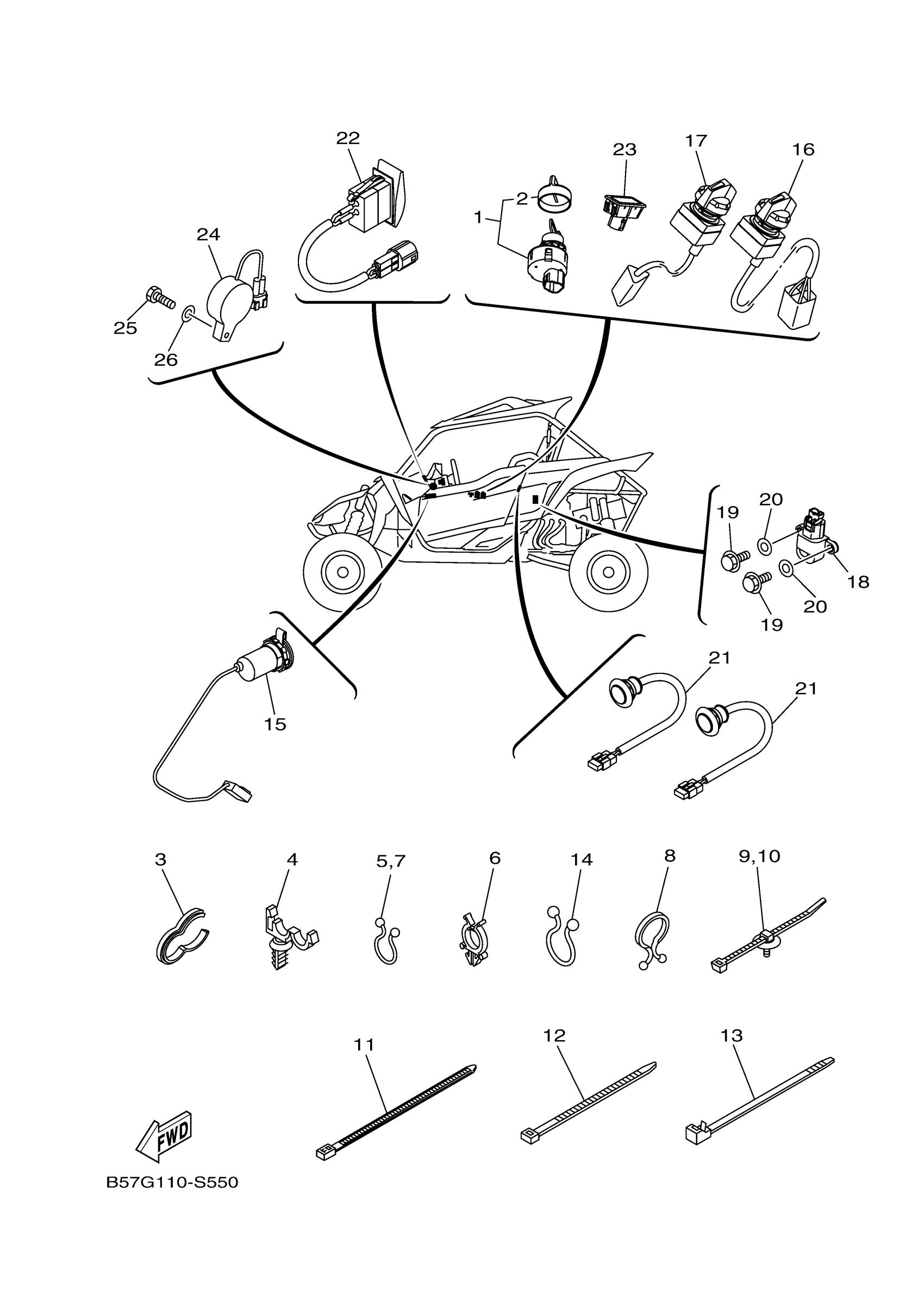

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 ELECTRICAL 3 Diagram

MAIN SWITCH ASSY

CAP, KEY

CLAMP(53Y)

CLAMP

CLAMP

CLAMP

CLAMP

CLAMP (8M1)

CLAMP

CLAMP

CLAMP(JN6)

CLAMP

CLAMP

CLAMP(2LM)

TERMINAL COMP.

SWITCH, LAMP

SWITCH, SELECT

LEAN ANGLE SENSOR

BOLT(6A1)

WASHER, PLAIN (646)

ROOM LIGHT ASSY

SWITCH

PILOT LIGHT ASSY

BUZZER

BOLT(3JK)

WASHER, PLAIN (646)
