Description

Price

1

CARRIER, FRONT

2HC-F4841-00-00

Unavailable

2

BOLT

90109-068A5-00

$7.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

COVER

2HC-F172W-00-00

$352.99

5

PLATE, SPRING

4XV-2177L-01-00

$6.99

6

HEAD

8HG-28386-00-00

$31.99

7

CAP

1XP-F151B-00-00

$8.49

8

STAY, REAR

2HC-F1643-00-00

$10.99

9

BOLT, FLANGE

95817-06012-00

$1.43

10

STAY, REAR

2HC-F1644-00-00

$11.49

11

BOLT, FLANGE

95817-06012-00

$1.43

12

PANEL, REAR FENDER 3

2HC-K8193-20-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

14

BOLT

90109-06307-00

$5.60

15

BOLT, WITH WASHER

90119-06226-00

$8.49

16

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

17

PANEL, REAR FENDER 4

2HC-K8194-20-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

$8.49

19

BOLT

90109-06307-00

$5.60

20

BOLT, WITH WASHER

90119-06226-00

$8.49

21

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

22

INSULATOR, HEAT

2HC-F2898-00-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

24

COVER 1

2HC-F842M-01-00

Unavailable

25

NUT, SPRING

90183-060A6-00

Unavailable

26

BOLT, WITH WASHER

90119-06226-00

$8.49

27

PAD, BATTERY

F1K-U8221-00-00

Unavailable

28

DAMPER

5UG-K7588-01-00

Unavailable

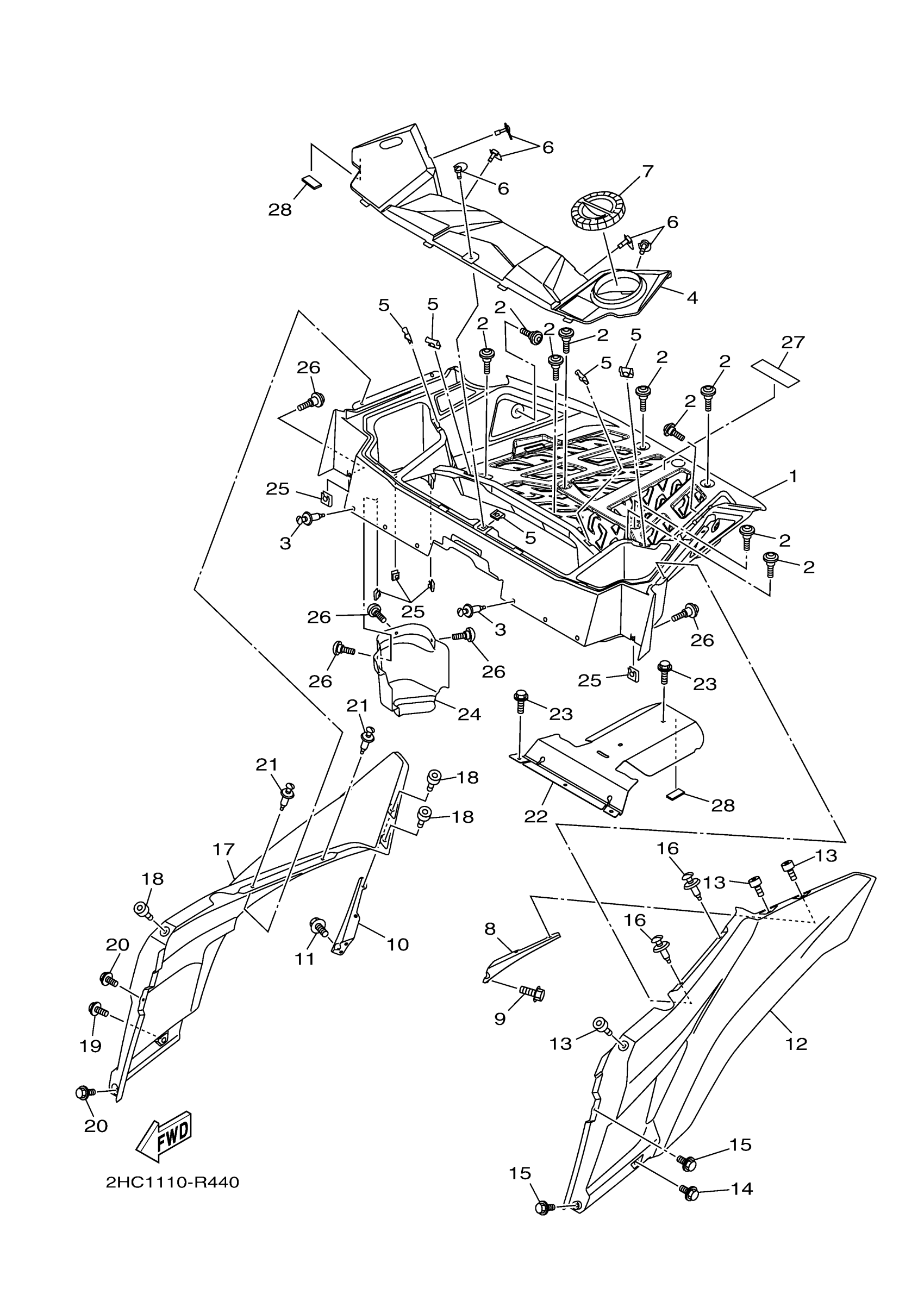

Yamaha YXZ10YESHS (YXZ1000R EPS SS SE) B57G 2017 CARRIER Diagram

CARRIER, FRONT

BOLT

RIVET,SPEC'L SHAPE

COVER

PLATE, SPRING

HEAD

CAP

STAY, REAR

BOLT, FLANGE

STAY, REAR

BOLT, FLANGE

PANEL, REAR FENDER 3

BOLT, HEXAGON SOCKET HEAD(3HE)

BOLT

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

PANEL, REAR FENDER 4

BOLT, HEXAGON SOCKET HEAD(3HE)

BOLT

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

INSULATOR, HEAT

BOLT, FLANGE(JN5)

COVER 1

NUT, SPRING

BOLT, WITH WASHER

PAD, BATTERY

DAMPER
