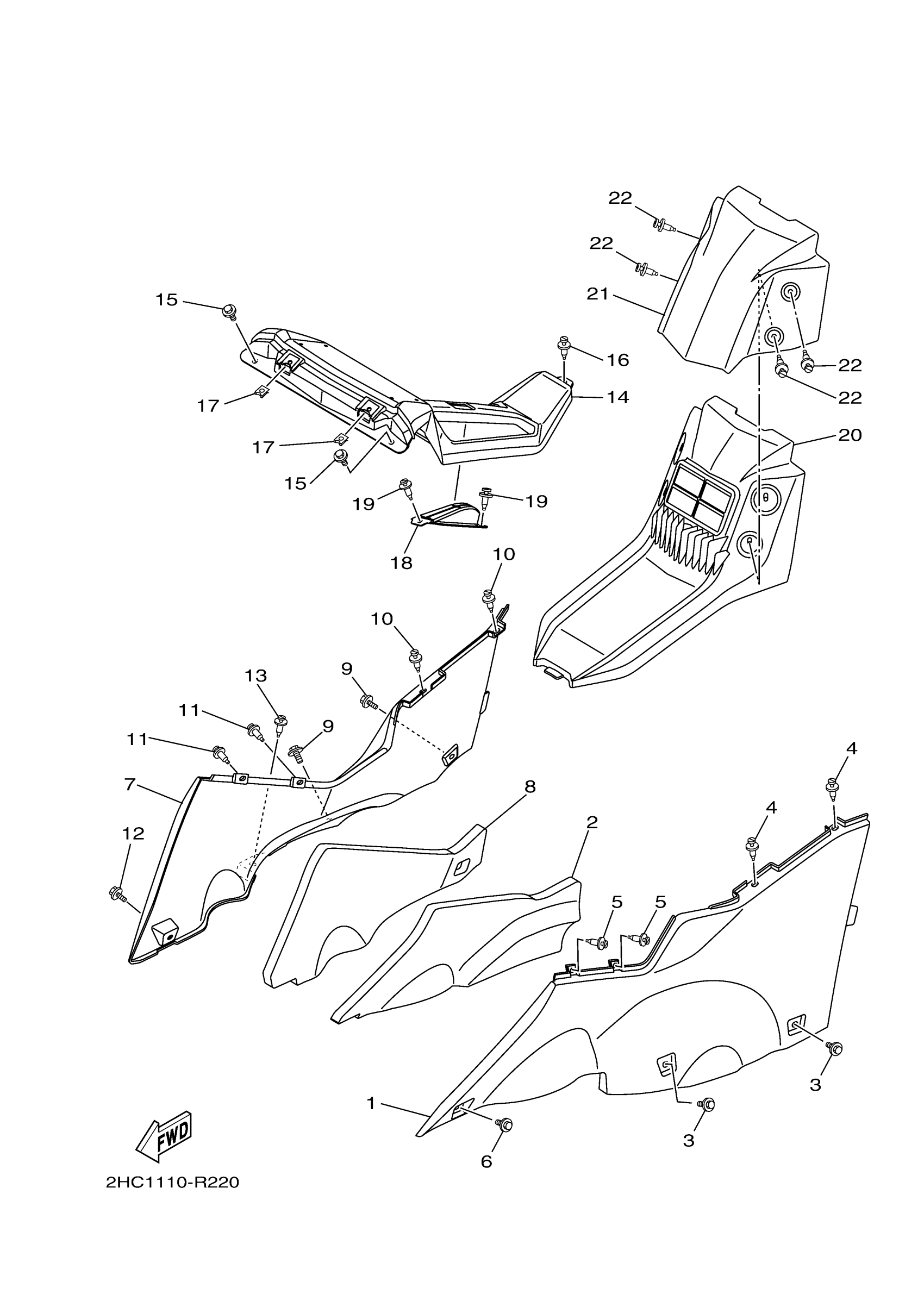

Yamaha YXZ10YESHB (YXZ1000R EPS SS SE) B575 2017 SIDE COVER 2 Diagram

#

Description
Price

1

PANEL, CONSOLE 1

2HC-F837L-00-00

$35.26

2

INSULATOR 3

2HC-F172S-10-00

$52.74

3

BOLT, WITH WASHER

90119-06226-00

$2.12

4

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

5

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

6

BOLT, WITH WASHER

90119-06226-00

$2.12

7

PANEL, CONSOLE 2

2HC-F837M-00-00

$33.59

8

INSULATOR 4

2HC-F173S-11-00

Unavailable

9

BOLT, WITH WASHER

90119-06226-00

$2.12

10

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

11

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

12

BOLT, WITH WASHER

90119-06226-00

$2.12

13

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

14

TOP COVER COMP.

2HC-F171C-00-00

Unavailable

15

BOLT, WITH WASHER

90119-06226-00

$2.12

16

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

17

NUT, SPRING

90183-060A6-00

Unavailable

18

COVER, HANDLE LEVE

2HC-F6372-00-00

Unavailable

19

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

20

COVER ASSY.

2HC-F1608-01-00

$184.09

21

LID COVER COMP.

2HC-F17P0-00-00

$136.77

22

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07
