Description

Price

1

11-U1LD GS BATTERY

11U-1LD00-00-00

Unavailable

2

BOLT(6TD)

97080-08020-00

$2.91

3

NUT

90179-08015-00

Unavailable

4

PANEL, SWITCH

B57-H2565-01-00

$25.99

5

BOLT, WITH WASHER

90119-06152-00

$7.49

6

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

7

BOX, BATTERY 1

2HC-H212B-01-00

Unavailable

8

INSU.

2HC-8233W-00-00

$4.94

9

INSULATOR 1

2HC-8253E-00-00

Unavailable

10

INSULATOR 2

2HC-8253F-00-00

Unavailable

11

INSULATOR

2HC-8254E-00-00

Unavailable

12

SEAL 3

2HC-2173M-00-00

Unavailable

13

SEAL 4

2HC-2173N-00-00

$4.37

14

DAMPER, PLATE

90520-05020-00

$1.28

15

DAMPER, PLATE

90520-05021-00

Unavailable

16

DAMPER, PLATE

90520-05022-00

Unavailable

17

NUT, SPRING

90183-060A6-00

Unavailable

18

NUT, SPRING

90183-05008-00

Unavailable

19

BOLT, SPECIAL 1

JW1-K6179-01-00

Unavailable

20

BOLT, WITH WASHER

90119-06152-00

$7.49

21

GROMMET(4DN)

90480-01558-00

Unavailable

22

BRACKET, BATTERY

2HC-H2128-00-00

Unavailable

23

BOLT, FLANGE

95022-06014-00

Unavailable

24

PAD, SEAT

3C3-24741-00-00

Unavailable

25

BAND, BATTERY

2T4-82131-00-00

Unavailable

26

WIRE, MINUS LEAD

2HC-82116-01-00

Unavailable

27

BOLT, FLANGE

95812-06014-00

Unavailable

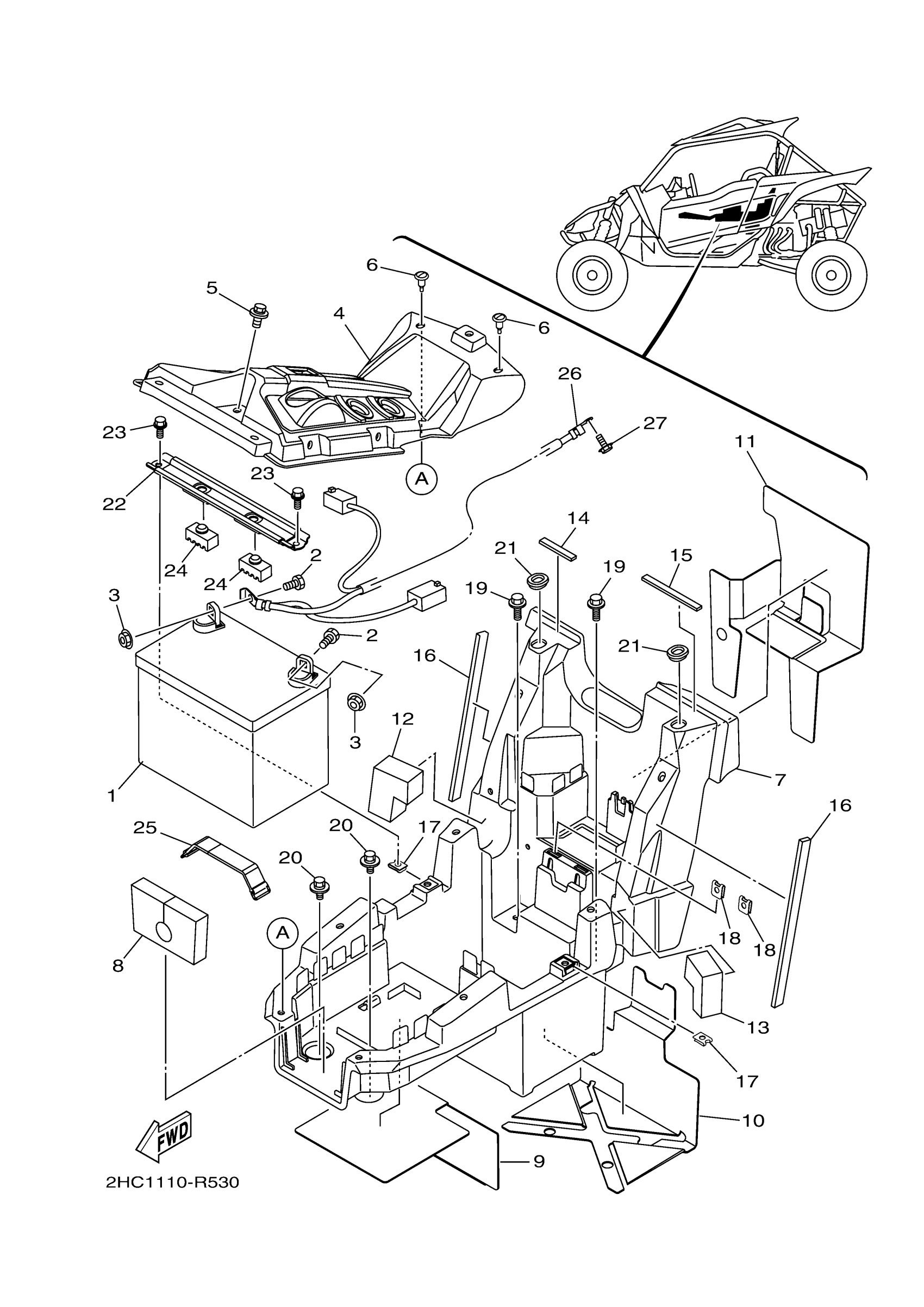

Yamaha YXZ10YESHB (YXZ1000R EPS SS SE) B575 2017 ELECTRICAL 2 Diagram

11-U1LD GS BATTERY

BOLT(6TD)

NUT

PANEL, SWITCH

BOLT, WITH WASHER

RIVET,SPEC'L SHAPE

BOX, BATTERY 1

INSU.

INSULATOR 1

INSULATOR 2

INSULATOR

SEAL 3

SEAL 4

DAMPER, PLATE

DAMPER, PLATE

DAMPER, PLATE

NUT, SPRING

NUT, SPRING

BOLT, SPECIAL 1

BOLT, WITH WASHER

GROMMET(4DN)

BRACKET, BATTERY

BOLT, FLANGE

PAD, SEAT

BAND, BATTERY

WIRE, MINUS LEAD

BOLT, FLANGE
