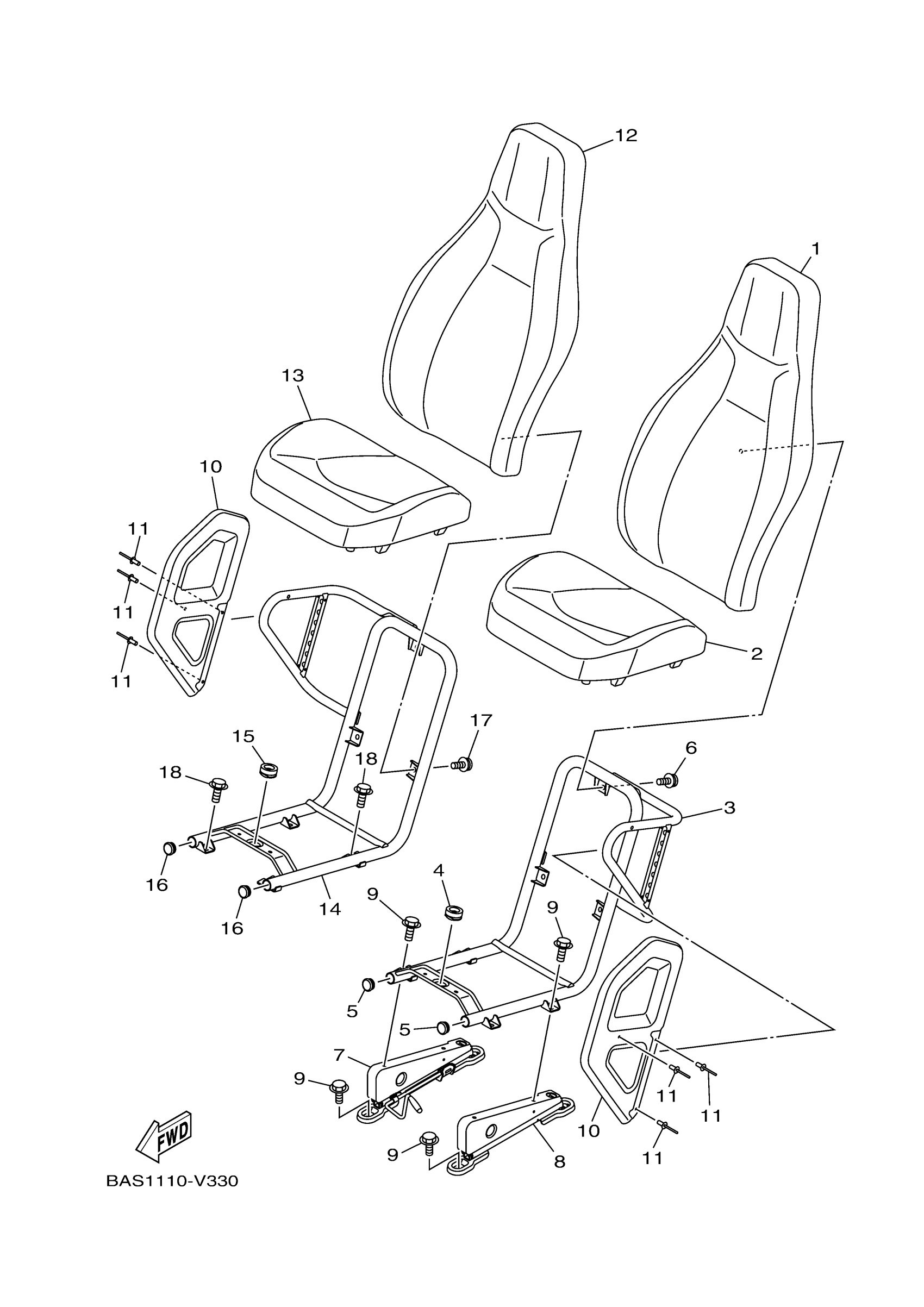

Yamaha YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020 SEAT Diagram

#

Description
Price

1

SEAT BACK ASSY

BAS-F4790-10-00

$185.86

2

SEAT ASSY

BAS-F4700-10-00

$329.85

3

FRAME, SEAT 1

2HC-F473C-01-00

Unavailable

4

GROMMET

1XD-F4742-00-00

Unavailable

5

PLUG

2HC-F2417-00-00

$2.00

6

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

7

ADJUSTER ASSY

BAS-F7270-00-00

$349.43

8

ADJUSTER ASSY

BAS-F7260-00-00

$136.54

9

BOLT, FLANGE

95817-08012-00

$3.98

10

COVER,2

2HC-F475X-01-00

$137.48

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

SEAT BACK ASSY

BAS-F4790-10-00

$185.86

13

SEAT ASSY

BAS-F4700-10-00

$329.85

14

FRAME, SEAT 2

2HC-F473D-01-00

$253.15

15

GROMMET

1XD-F4742-00-00

Unavailable

16

PLUG

2HC-F2417-00-00

$2.00

17

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

18

BOLT, FLANGE

95817-08012-00

$3.98
