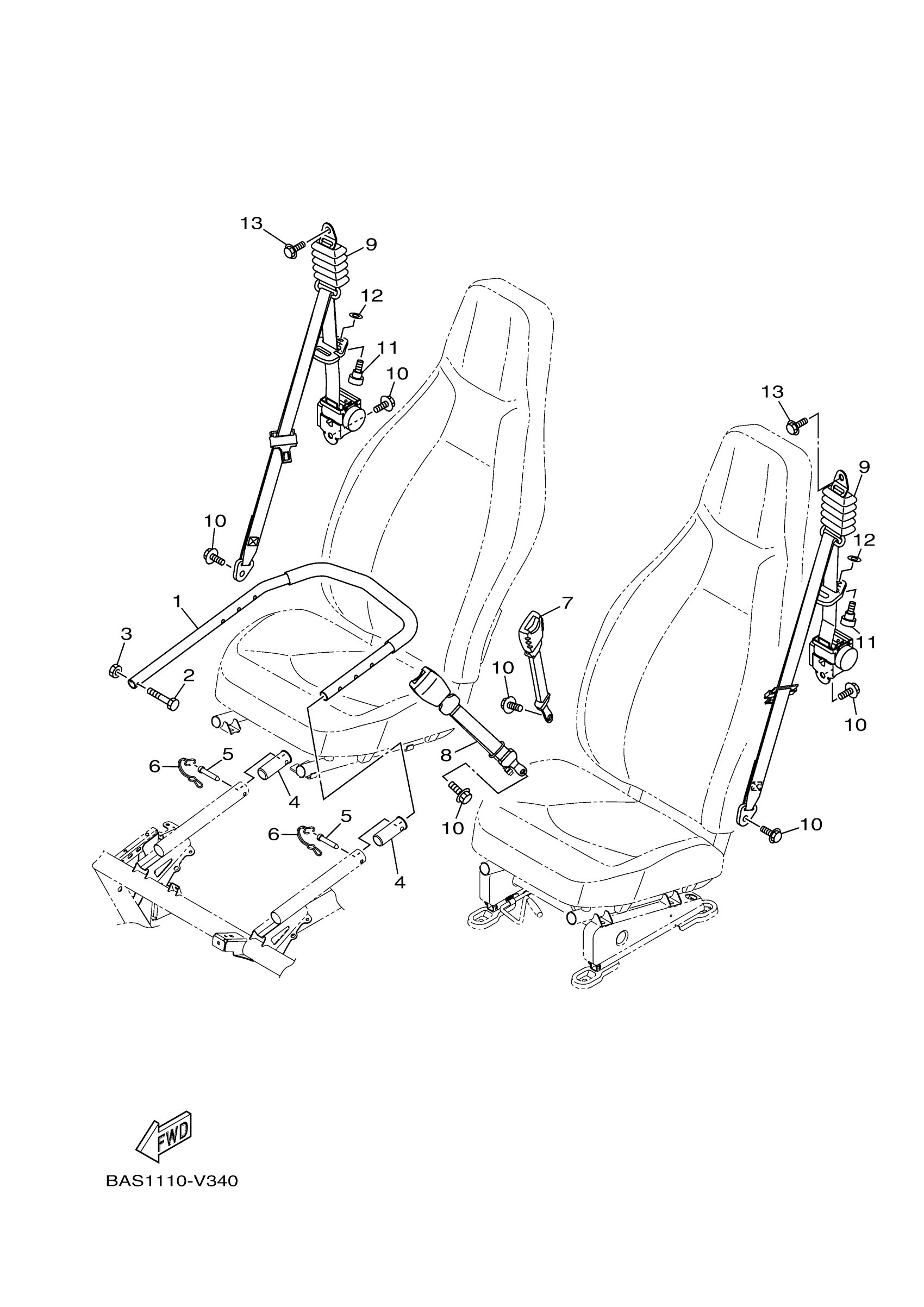

Yamaha YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020 SEAT 2 Diagram

#

Description
Price

1

ASSIST GRIP ASSY.,

2HC-F470J-00-00

$125.99

2

BOLT(8BC)

97017-06040-00

$9.49

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

BUSH, CAP

1XD-F467K-00-00

Unavailable

5

PIN, LOCK

1XD-F5926-00-00

Unavailable

6

SNAP, PIN

1XD-F311F-00-00

$7.99

7

FR. BELT RECEIVER

B5F-F470R-00-00

$40.99

8

FR. BELT RECEIVER

B5F-F470R-10-00

$28.99

9

FR. SEAT BELT ASSY

B5F-F470L-00-00

$156.99

10

BOLT, FLANGE

95812-12020-00

$8.49

11

BOLT, SPECIAL

16B-F3394-01-00

$2.70

12

WASHER, PLATE

90201-11801-00

Unavailable

13

BOLT,HEX. SOCKET B

90111-12002-00

$3.81
