- YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020
ELECTRICAL 3

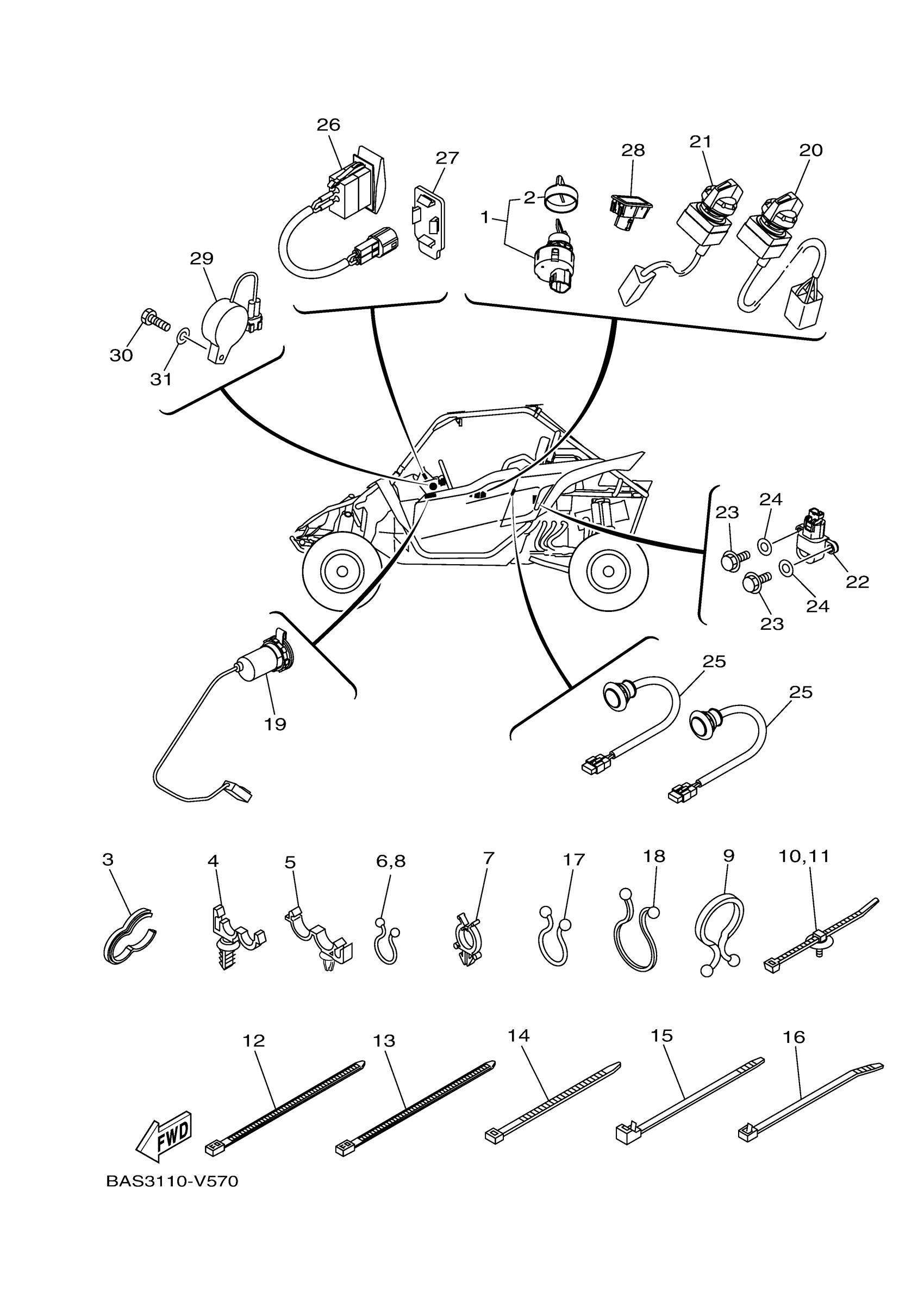

Yamaha YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020 ELECTRICAL 3 Diagram
#
1
MAIN SWITCH ASSY
1XD-H2510-11-00
$32.99
2
CAP, KEY
5UG-H2579-00-00
$9.99
3
CLAMP(53Y)
90464-15065-00
$7.49
4
CLAMP
90464-12830-00
$1.49
5
CLAMP
90464-20010-00
$3.23
6
CLAMP
90464-14800-00
$3.40
7
CLAMP
90464-25826-00
Unavailable
8
CLAMP
90464-20804-00
Unavailable
9
CLAMP
90464-37257-00
Unavailable
10
CLAMP
5B4-F1338-00-00
$3.33
11
CLAMP
1NS-F1338-00-00
$3.33
12
CLAMP(JN6)
90464-31827-00
$3.40
13
CLAMP(JN6)
90464-40825-00
$3.05
14
CLAMP
90464-48800-00
Unavailable
15
CLAMP
90464-51800-00
$14.99
16
CLAMP
90464-76800-00
Unavailable
17
CLAMP(2LM)
90464-44109-00
Unavailable
18
CLAMP
90464-25267-00
Unavailable
19
TERMINAL COMP.
1HP-H254B-10-00
Unavailable
20
SWITCH, LAMP
2HC-82526-01-00
Unavailable
21
SWITCH, SELECT
2HC-87280-01-00
Unavailable
22
SENSOR, LEAN ANGLE
3B4-82576-10-00
Unavailable
23
BOLT(6A1)
97095-05016-00
Unavailable
24
WASHER, PLAIN (646)
92990-05600-00
Unavailable
25
ROOM LIGHT ASSY
2HC-H5440-00-00
Unavailable
26
SWITCH
BAS-H2917-01-00
Unavailable
27
PLUG, HOLE
BG4-F312G-00-00
Unavailable
28
PILOT LIGHT ASSY
1XD-H3530-00-00
Unavailable
29
BUZZER
2MB-83383-00-00
Unavailable
30
BOLT(3JK)
97027-05020-00
Unavailable
31
WASHER, PLAIN (646)
92990-05600-00
Unavailable
