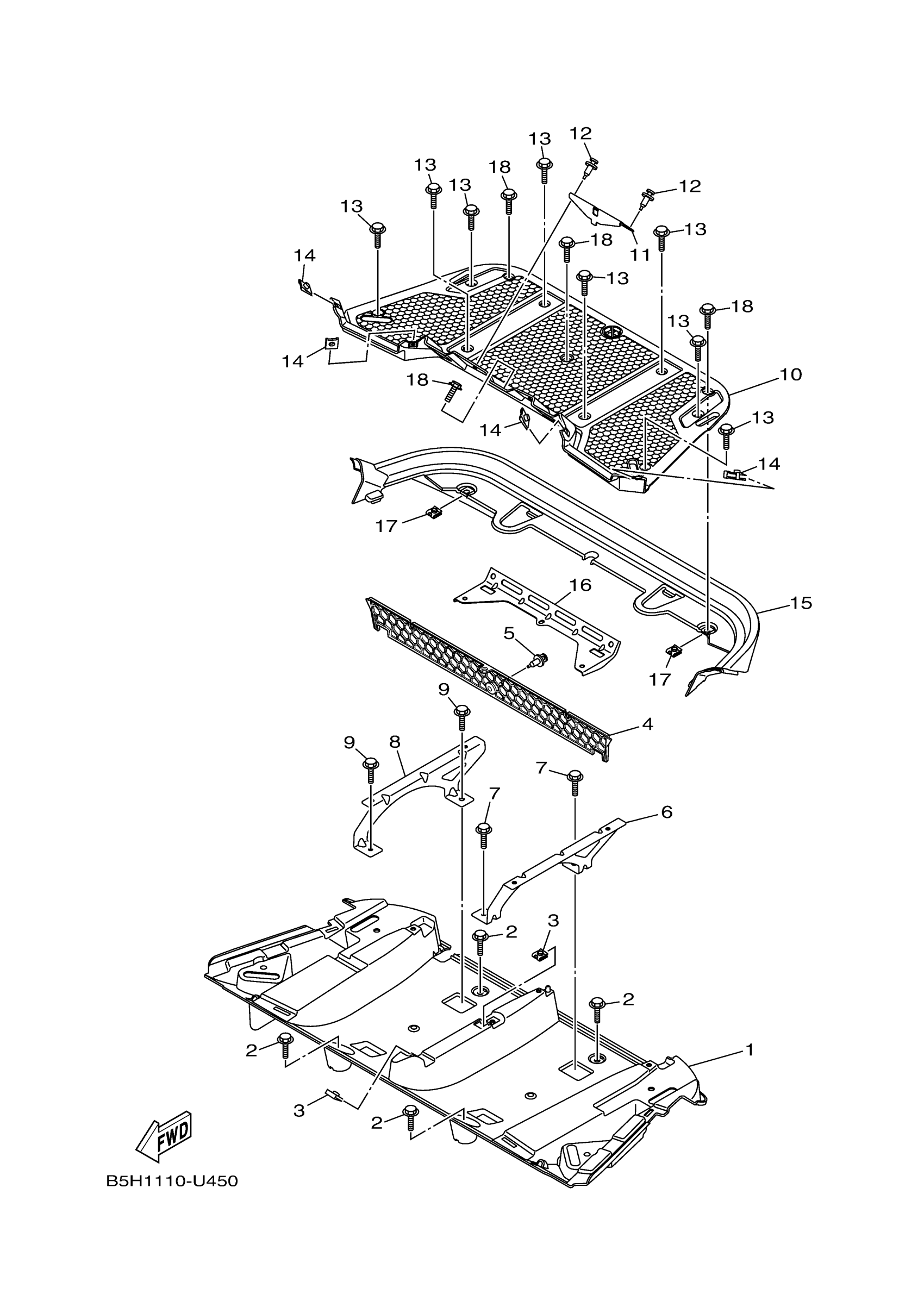

Yamaha YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020 CARRIER Diagram

BOX, CARRIER UNDER

B5H-F4852-01-00

$45.04

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

NUT, SPRING

90183-060A6-00

$3.90

GRILL, AIR INTAKE

B5H-F837R-00-00

$5.19

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

STAY, CARRIER

B5H-F1271-00-00

$10.69

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

STAY CARRIER 2

B5H-F137H-00-00

$10.69

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

CARRIER, FRONT

B5H-F4841-01-00

$36.63

BRACKET 1

B5H-F8426-00-00

$4.31

RIVET,SPEC'L SHAPE

90269-07805-00

$1.07

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

NUT, SPRING

90183-060A6-00

$3.90

PANEL, FRAME RR.

B5H-F1235-00-00

$20.48

STAY, SUPPORT 2

B5H-F832T-00-00

Unavailable

NUT, SPRING

90183-060A6-00

$3.90

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88
