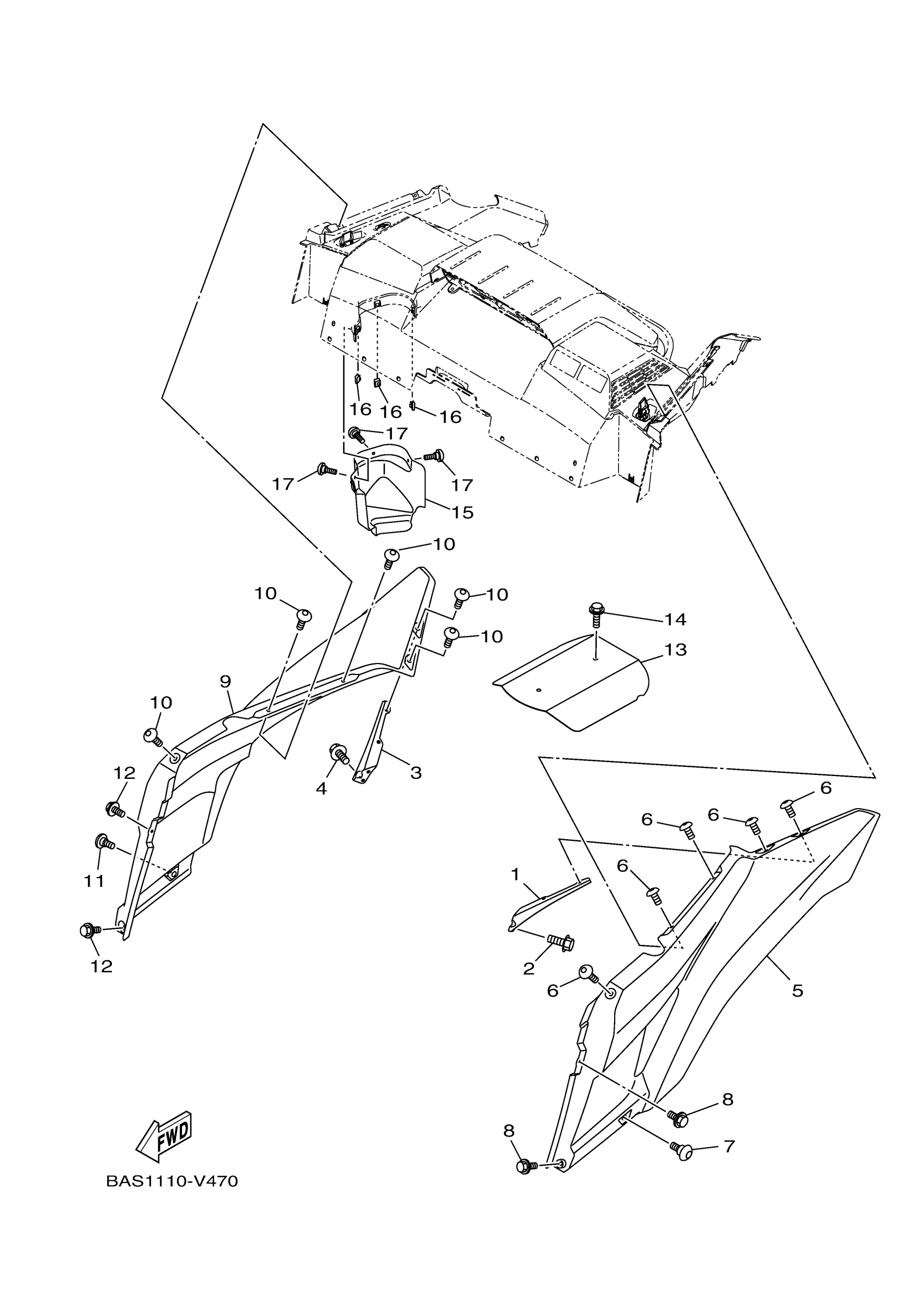

Yamaha YXZ10YECLL (YXZ1000R SS SPECIAL EDITION) BAS3 2020 CARRIER 3 Diagram

#

Description
Price

1

STAY, REAR

2HC-F1643-00-00

$10.99

2

BOLT, FLANGE

95817-06012-00

$1.43

3

STAY, REAR

2HC-F1644-00-00

$11.49

4

BOLT, FLANGE

95817-06012-00

$1.43

5

PANEL, REAR FENDER 3

2HC-K8193-50-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

BOLT

90109-06061-00

$11.49

8

BOLT, WITH WASHER

90119-06226-00

$8.49

9

PANEL, REAR FENDER 4

2HC-K8194-50-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

BOLT

90109-06061-00

$11.49

12

BOLT, WITH WASHER

90119-06226-00

$8.49

13

INSULATOR, HEAT

B5H-F2898-00-00

$13.99

14

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

15

COVER 1

2HC-F842M-01-00

$13.49

16

NUT, SPRING

90183-060A6-00

Unavailable

17

BOLT, WITH WASHER

90119-06226-00

$8.49
