- YXR7FYL (RHINO 700 FI) 5B4H0 2009
REAR WHEEL 2

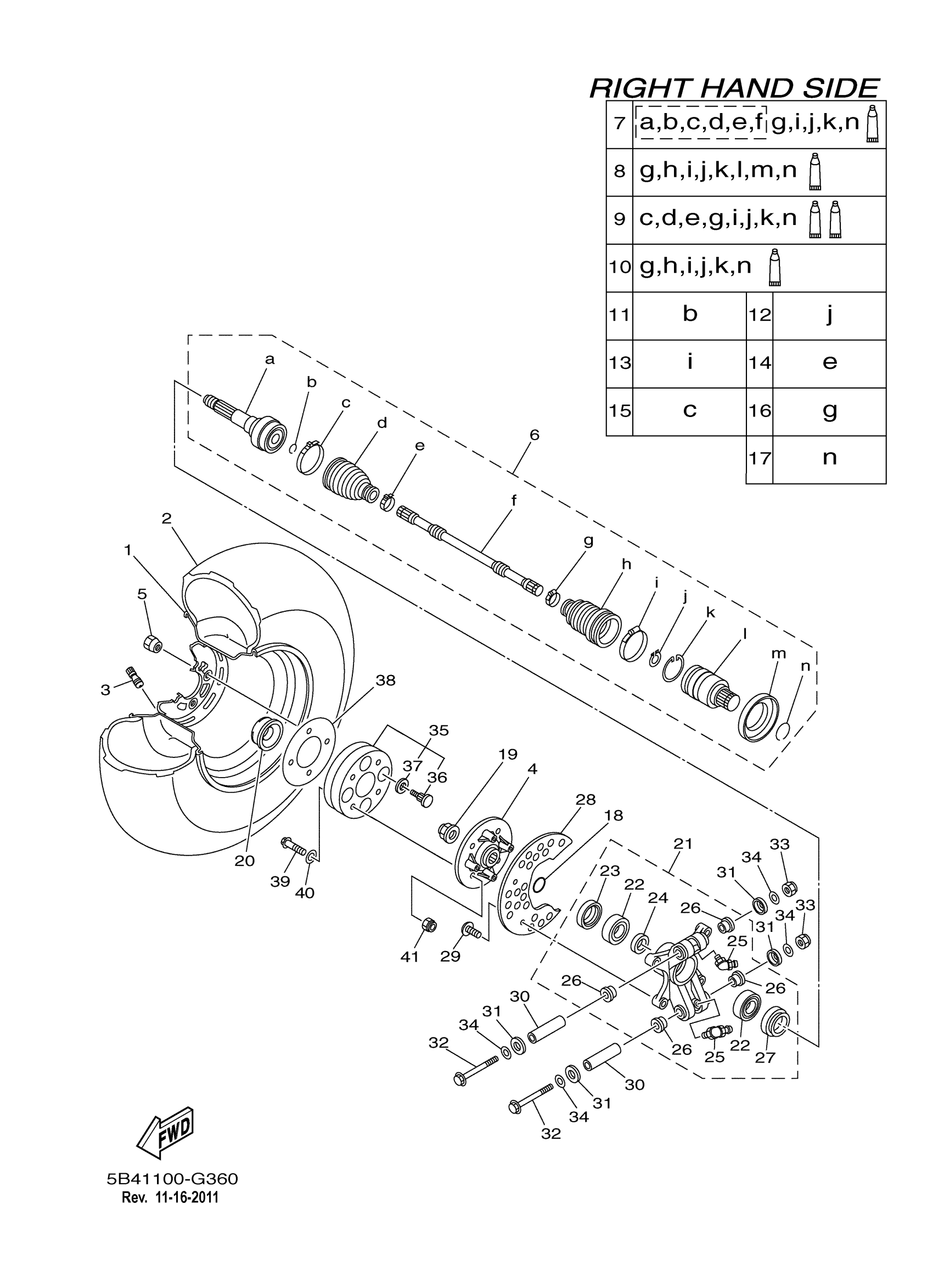

Yamaha YXR7FYL (RHINO 700 FI) 5B4H0 2009 REAR WHEEL 2 Diagram
#
1
REAR WHEEL COMP.
5UG-F5390-20-00
Unavailable
2
TIRE (25X10.00-12 M952Y TL)
94110-12805-00
Unavailable
3
VALVE, RIM
93900-00812-00
Unavailable
4
HUB, REAR
5B4-F5311-00-00
$111.99
5
NUT
90179-10022-00
$3.81
6
SHAFT, REAR DRIVE
5B4-F53B0-00-00
Unavailable
7
. BALL JOINT SET
5B4-F530U-00-00
Unavailable
8
DOUBLE OFF SET JOINT RIGHT
5UG-F530W-02-00
Unavailable
9
BOOT SET (BALL JOINT)
5B4-F530X-00-00
$109.99
10
BOOT SET (DOUBLE OFF)
5UG-F530Y-01-00
Unavailable
11
CIRCLIP
5UG-F512H-00-00
$8.99
12
. SNAP RING
5UG-F512J-00-00
Unavailable
13
. BOOT BAND(DOUBLE OFFSETJOINT)
5UG-F511H-00-00
Unavailable
14
. BOOT BAND (SMALL)
5B4-F512G-00-00
Unavailable
15
. BOOT BAND (BALL JOINT)
5B4-F511G-00-00
Unavailable
16
. BOOT BAND (SMALL)
5UG-F510U-00-00
Unavailable
17
CLIP, SPRING
5KM-2536E-10-00
Unavailable
18
O-RING(47X)
93210-27666-00
Unavailable
19
NUT
90179-24003-00
Unavailable
20
CAP, WHEEL
2P5-F512A-00-00
Unavailable
21
REAR KNUCKLE ASSY RH
5B4-F532F-00-00
Unavailable
22
BEARING
93306-206Y2-00
Unavailable
23
OIL SEAL
93106-42800-00
Unavailable
24
COLLAR
90387-30008-00
Unavailable
25
. NIPPLE, GREASE
5B4-R169A-00-00
Unavailable
26
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
27
OIL SEAL
93106-38800-00
Unavailable
28
PROTECTOR, DISK BRAKE
5B4-F5718-10-00
Unavailable
29
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
30
SPACER
5KM-23448-00-00
Unavailable
31
COVER, THRUST 1
5UG-23517-10-00
Unavailable
32
BOLT, FLANGE
90105-10277-00
Unavailable
33
NUT, SELF-LOCKING
90185-10012-00
Unavailable
34
WASHER, PLATE
90201-10035-00
Unavailable
35
SPACER ASSY
42S-F53W0-00-00
Unavailable
36
BOLT, SERRATION
90114-10013-00
Unavailable
37
WASHER, PLATE
90201-12034-00
Unavailable
38
PLATE 1
5UG-2539F-00-00
Unavailable
39
BOLT, FLANGE
90105-12062-00
Unavailable
40
WASHER, PLATE
90201-14020-00
Unavailable
41
NUT, SELF-LOCKING
90185-12007-00
Unavailable
