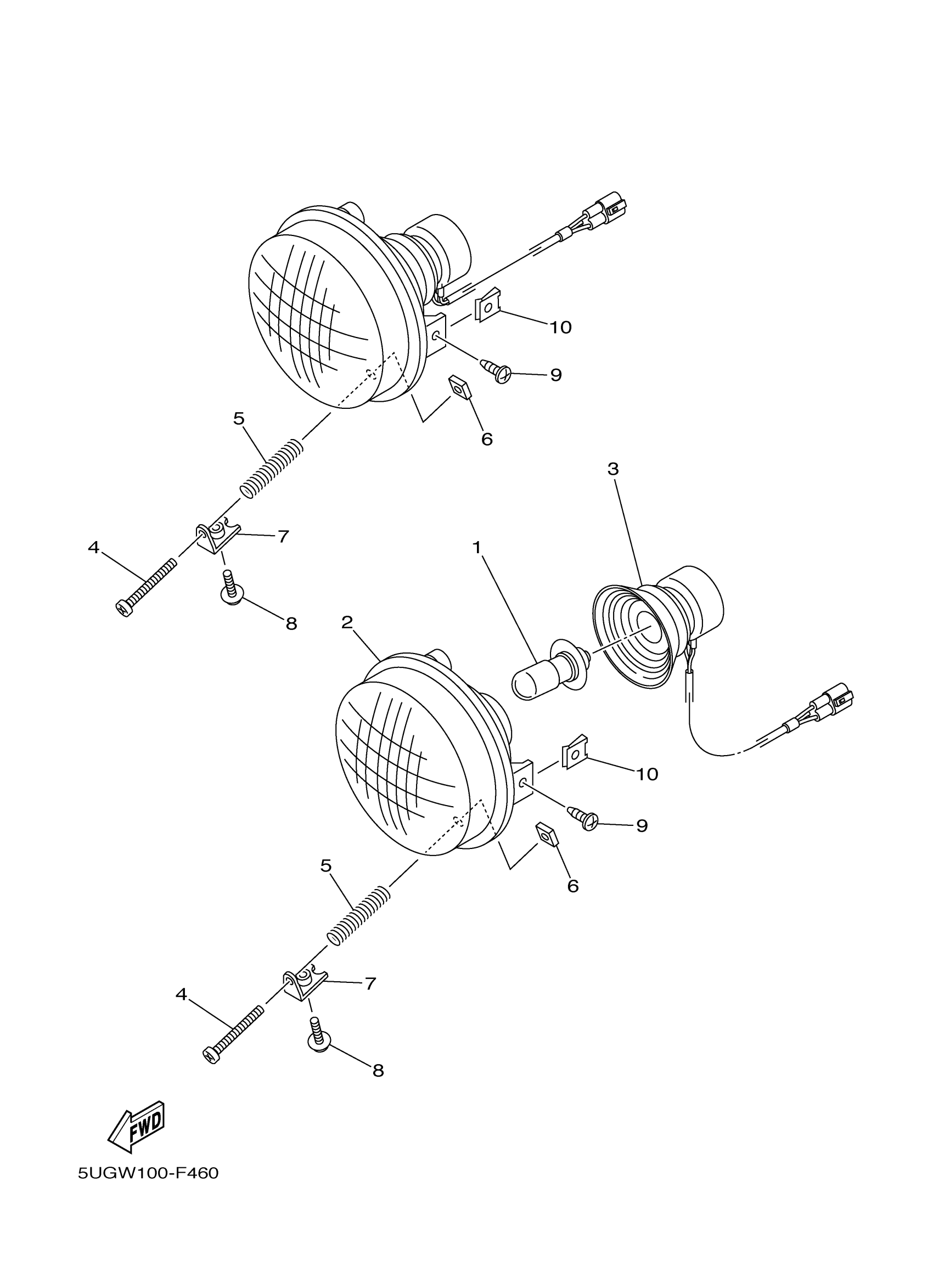

Yamaha YXR7FYL (RHINO 700 FI) 5B4H0 2009 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$34.04

2

LENS ASSY

5KM-84320-01-00

$83.02

3

SOCKET CORD ASSY 1

5EH-84340-00-00

$47.66

4

SCREW, PAN HEAD

98502-03540-00

$6.04

5

SPRING, SCREW

2GU-84332-00-00

$6.42

6

NUT, ADJUSTING

2GU-84334-00-00

$5.46

7

BRACKET

5KM-84703-10-00

$3.03

8

SCREW, WITH WASHER

90159-05044-00

$2.36

9

SCREW, BIND (8K2)

98902-05016-00

$1.49

10

NUT, SPRING

90183-05008-00

$6.35
