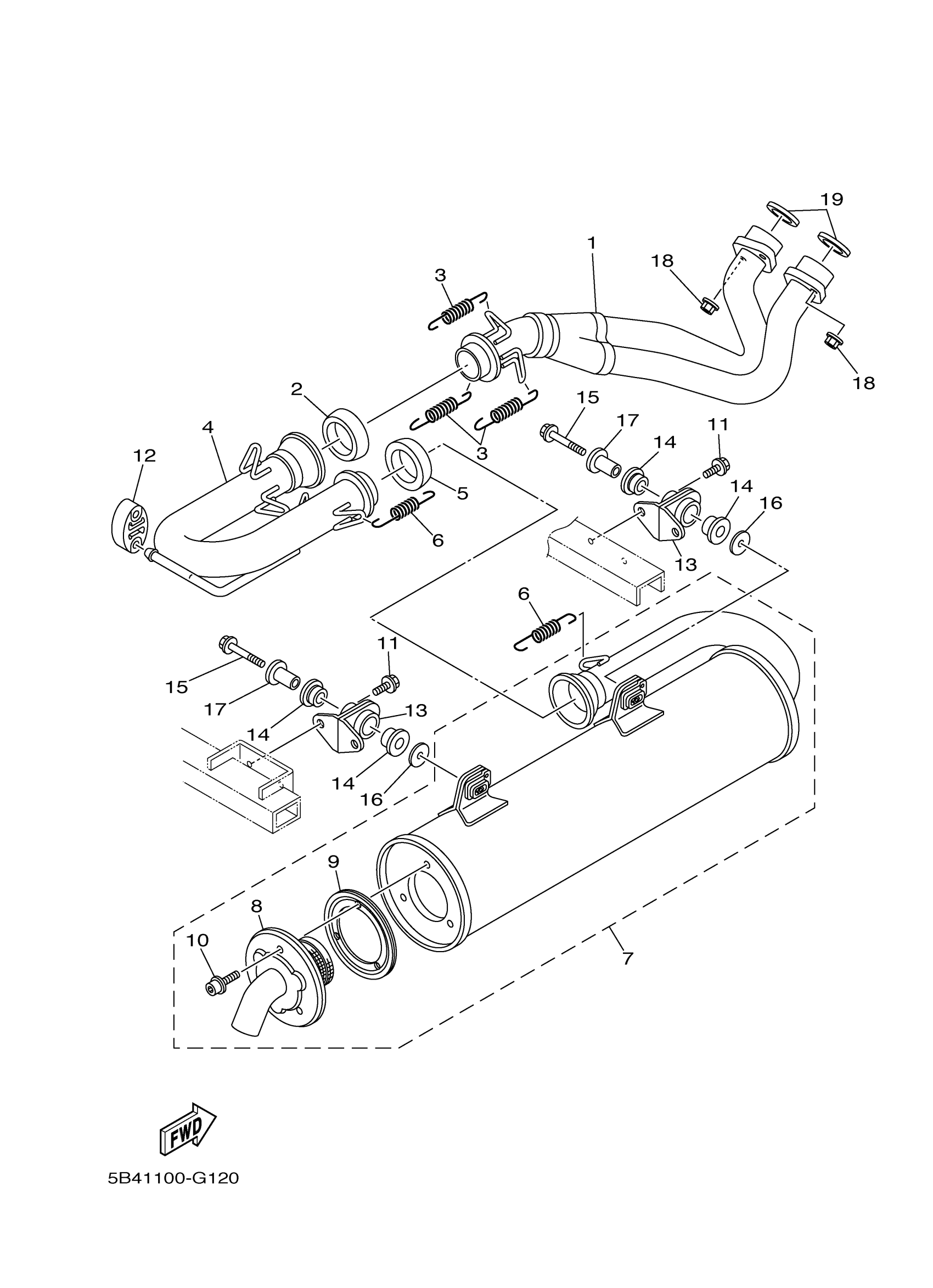

Yamaha YXR7FYL (RHINO 700 FI) 5B4H0 2009 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5B4-E4611-00-00

Unavailable

2

GASKET, MUFFLER

3B4-14714-00-00

$24.17

3

SPRING, TENSION

90506-26010-00

$10.38

4

PIPE, EXHAUST 2

5B4-E4621-00-00

Unavailable

5

GASKET, MUFFLER

3B4-14714-00-00

$24.17

6

SPRING, TENSION

90506-26010-00

$10.38

7

MUFFLER ASSY 1

5B4-E4710-00-00

Unavailable

8

. PIPE, OUTLET

5B4-E4752-00-00

$147.03

9

. GASKET, SILENCER

5B4-E4755-00-00

$14.18

10

. BOLT, MUFFLER

5B4-E4719-00-00

Unavailable

11

BOLT, FLANGE

95817-08014-00

$1.91

12

DAMPER, MUFFLER

5UG-14737-00-00

$13.61

13

MUFF. STAY SUB-KUM

5B4-F1440-00-00

$28.82

14

DAMPER, FOOTREST 2

5VY-27424-00-00

Unavailable

15

BOLT, FLANGE

95814-08045-00

$3.74

16

WASHER, PLATE

90201-08034-00

Unavailable

17

COLLAR

90387-08039-00

Unavailable

18

NUT,FLANGE(J10)

95702-08500-00

Unavailable

19

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
