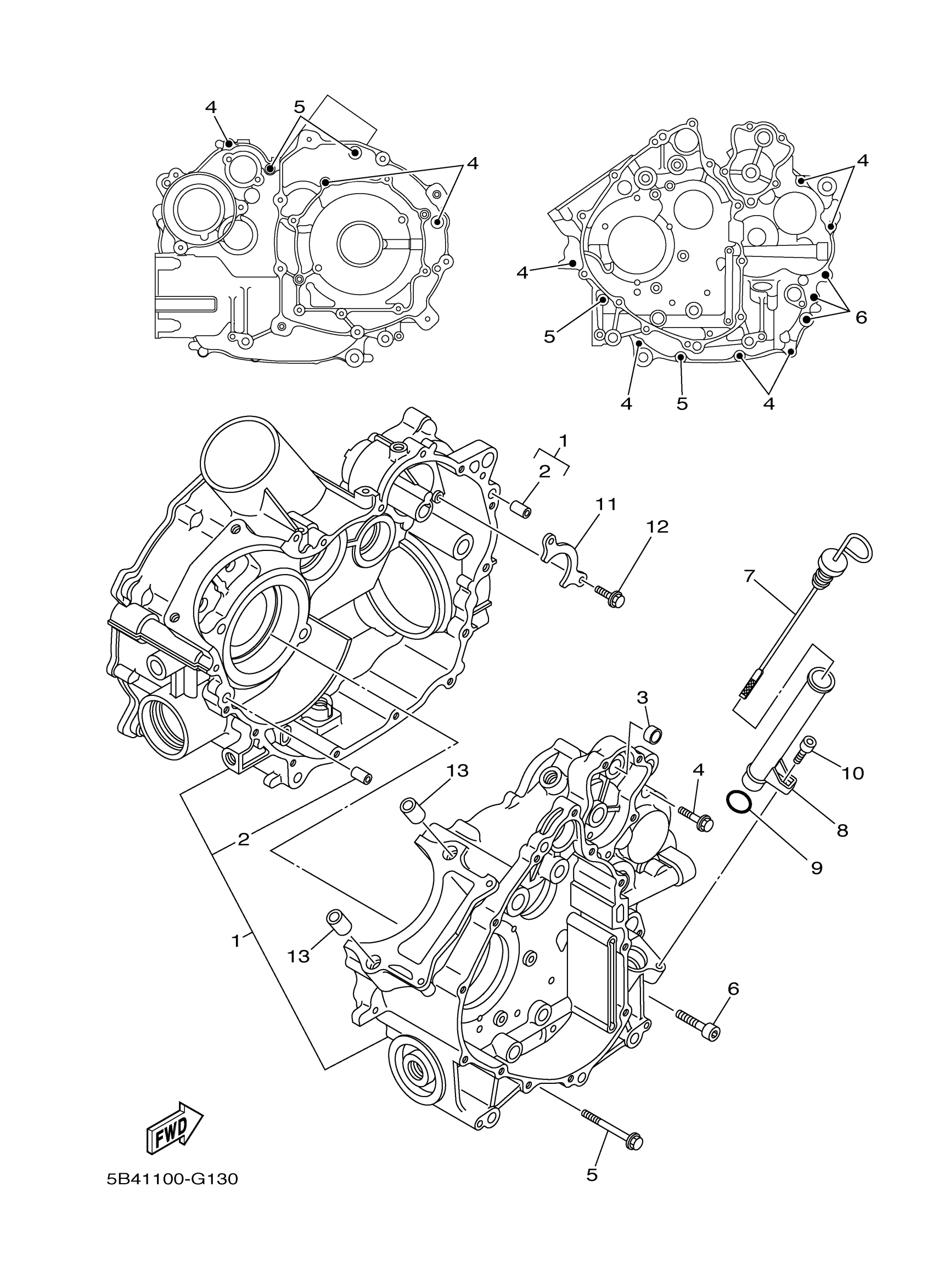

Yamaha YXR7FYL (RHINO 700 FI) 5B4H0 2009 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3B4-15100-27-00

$1,486.19

2

PIN, DOWEL(2VG)

99530-10116-00

$3.20

3

SPACER, CAM SHAFT

3B4-18581-00-00

$33.23

4

BOLT, FLANGE

95022-06030-00

$1.49

5

BOLT, FLANGE

95022-06060-00

$6.17

6

BOLT,SOCKET

91314-08040-00

$5.27

7

PLUG, OIL LEVEL

5B4-15362-00-00

$31.33

8

PIPE, OIL

5B4-15112-00-00

$49.62

9

O-RING (26H)

93210-21631-00

$6.12

10

BOLT,SOCKET

91317-06012-00

$5.87

11

PLATE, BEARING COVER

3B4-15388-00-00

$3.55

12

BOLT, FLANGE

95022-06020-00

$3.16

13

PIN, DOWEL

99530-14016-00

$3.05
