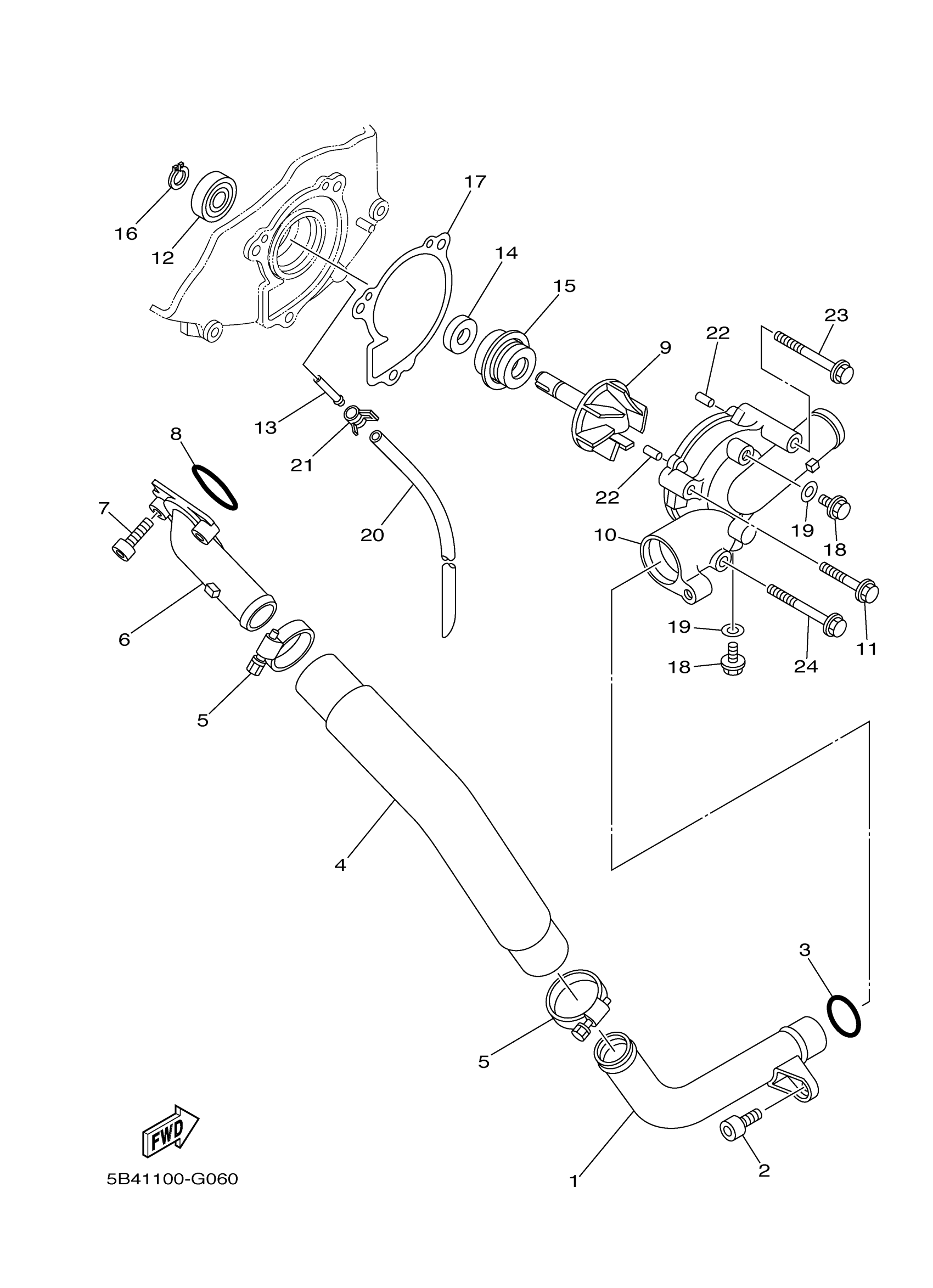

Yamaha YXR7FSPY (RHINO 700 FI SPORT EDITION) 5B4P 2009 WATER PUMP Diagram

#

Description
Price

1

PIPE 1

5B4-12481-00-00

$37.58

2

BOLT,SOCKET

91317-06012-00

$5.87

3

O-RING

93210-21190-00

$5.48

4

HOSE 2

5B4-12577-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-32015-00

$14.52

6

JOINT 1

5KM-12469-00-00

$46.90

7

BOLT,SOCKET HEAD

91314-06020-00

$2.02

8

O-RING

93210-33006-00

$4.14

9

IMPELLER SHAFT ASSY

3B4-12450-00-00

$44.63

10

COVER, HOUSING

5B4-12422-00-00

$66.57

11

BOLT, FLANGE

95022-06030-00

$1.49

12

BRG,R-B 6000 26MM 19G KY

93306-00004-00

$31.17

13

PIPE, DRAIN

5D3-1243K-00-00

$7.28

14

OIL SEAL (J10)

93101-10090-00

$5.87

15

SEAL, MECHANICAL

11H-12438-10-00

$49.85

16

CIRCLIP(10W)

99009-10400-00

Unavailable

17

GASKET, HOUSING COVER 2

3B4-12428-00-00

Unavailable

18

BOLT, FLANGE

95022-06010-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable

20

HOSE (L1050)

90445-072G8-00

Unavailable

21

CLIP(42X)

90467-07093-00

Unavailable

22

PIN,DOWEL (603)

93604-10011-00

Unavailable

23

BOLT, FLANGE

95022-06050-00

Unavailable

24

BOLT, FLANGE

95022-06050-00

Unavailable
