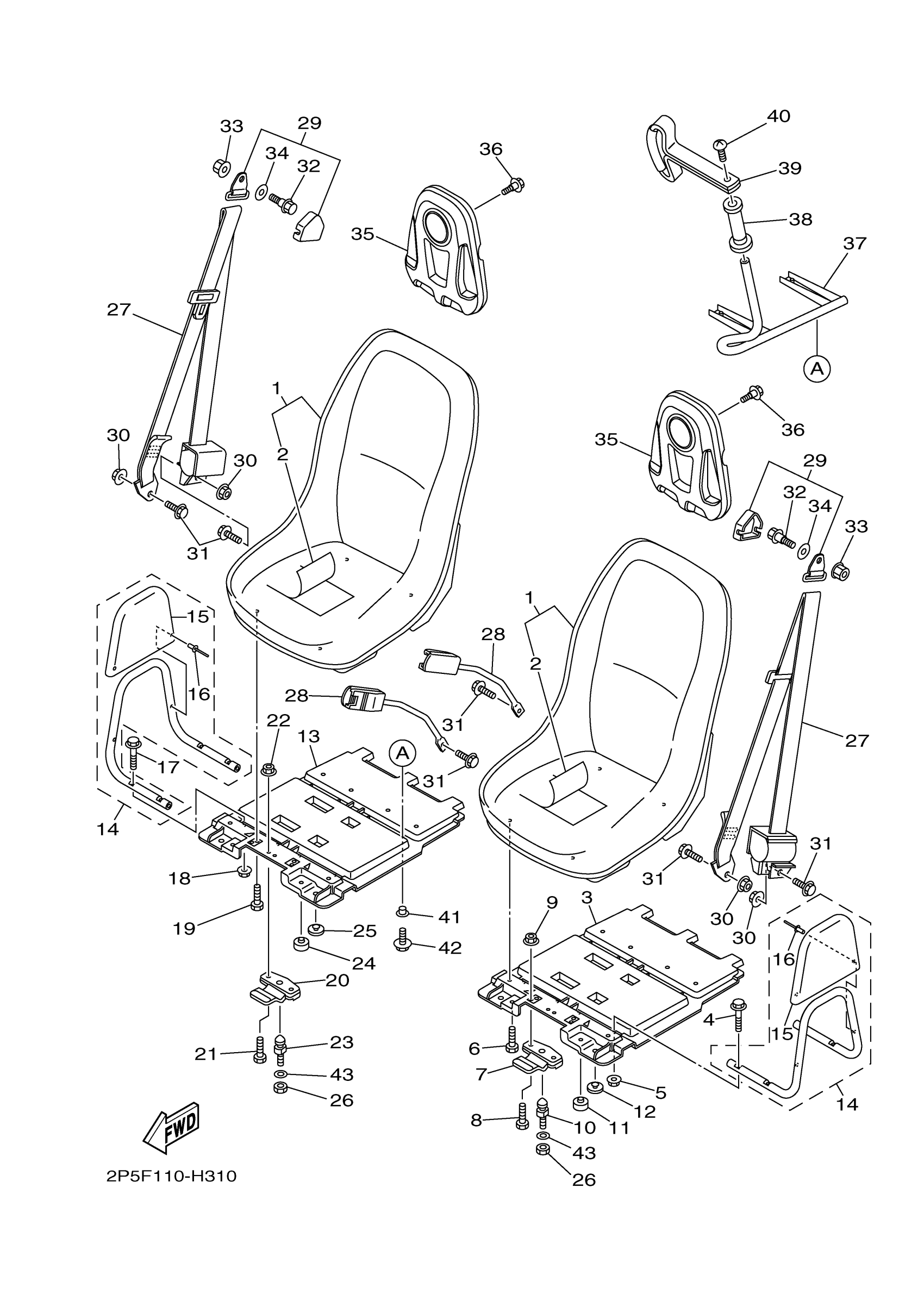

Yamaha YXR7FSPY (RHINO 700 FI SPORT EDITION) 5B4P 2009 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSY
5UG-F4710-20-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-20-00
Unavailable
7
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
10
PIN
GH1-U3774-00-00
Unavailable
15
. COVER,2
5B4-F475X-00-00
Unavailable
16
. RIVET, BLIND
90267-32806-00
Unavailable
20
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
23
PIN
GH1-U3774-00-00
Unavailable
26
NUT, SELF-LOCKING
90185-10012-00
Unavailable
27
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
28
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
29
COVER
5UG-F4796-00-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
BOLT, FLANGE
95817-10020-00
Unavailable
32
BOLT, SPECIAL
5UG-F3394-00-00
Unavailable
33
SPEED NUT
5UG-F4735-01-00
Unavailable
34
WASHER, PLATE
90201-11801-00
Unavailable
35
HEAD REST (BLACK)
5UG-F472L-50-00
Unavailable
36
BOLT(3KJ)
90109-063F5-00
Unavailable
37
ASSIST, GRIP
5B4-F474A-00-00
Unavailable
38
GRIP
5B4-F6241-00-00
Unavailable
39
HANDLE, SEAT
5B4-F4773-00-00
Unavailable
40
SCREW, BINDING
98907-06020-00
Unavailable
41
COLLAR
90387-06210-00
Unavailable
42
BOLT, FLANGE
90105-06831-00
Unavailable
43
WASHER, PLATE
90201-109U6-00
Unavailable
