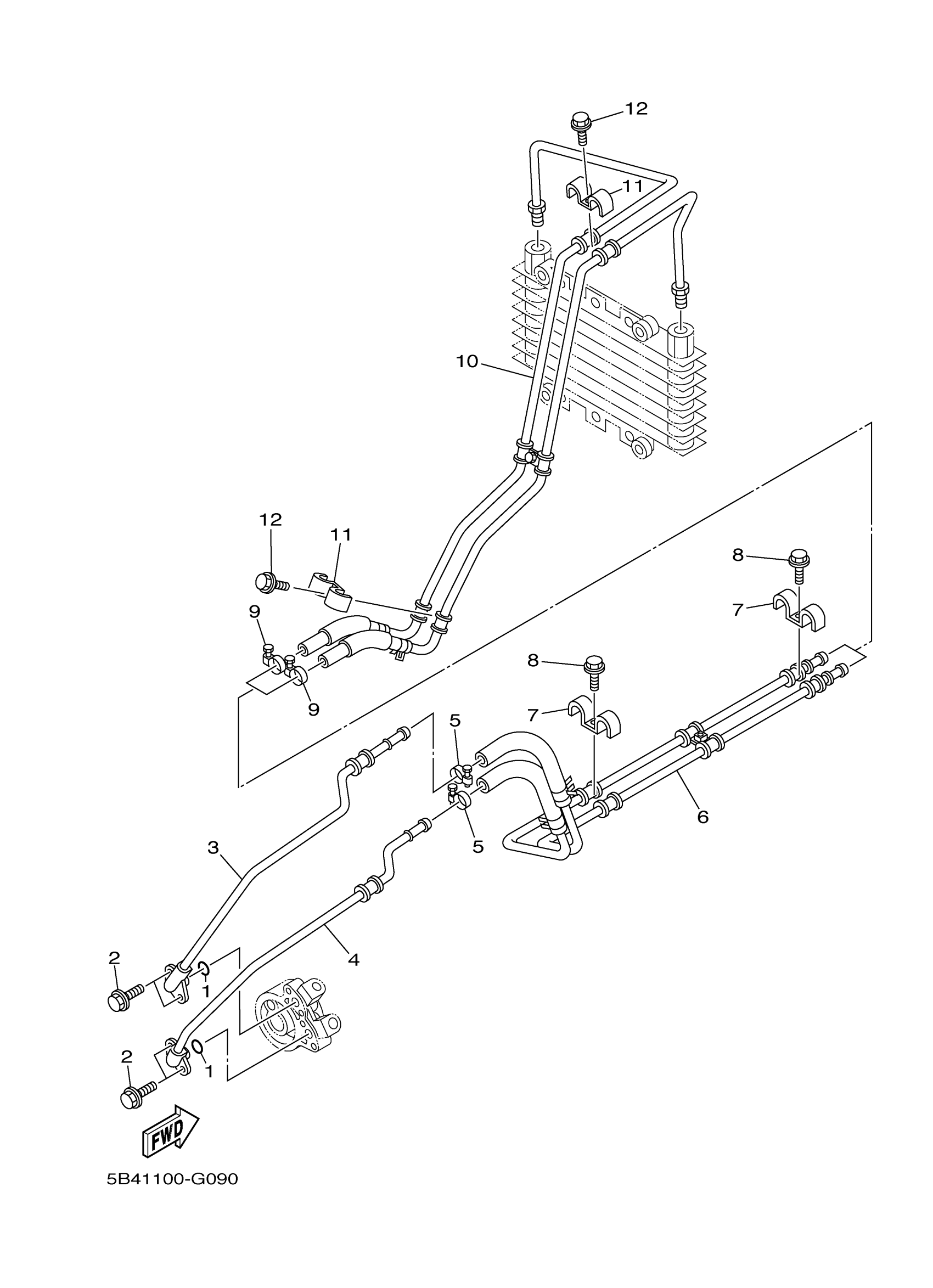

Yamaha YXR7FSPY (RHINO 700 FI SPORT EDITION) 5B4P 2009 OIL PIPE Diagram

#

Description

Price

1

O-RING (371)

93210-10197-00

$5.16

2

BOLT(3MA)

91312-06016-00

$4.82

3

PIPE, OIL 1

5B4-13416-00-00

Unavailable

4

PIPE, OIL 2

5B4-13418-00-00

Unavailable

5

HOSE CLAMP ASSY

90450-18M09-00

$10.11

6

OIL PIPE COMP. 2

5B4-E3406-00-00

$74.08

7

CLAMP

90462-15800-00

Unavailable

8

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49

9

HOSE CLAMP ASSY

90450-18M09-00

$10.11

10

OIL PIPE COMP. 1

5B4-E3405-00-00

$105.88

11

CLAMP

90462-15800-00

Unavailable

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.49
