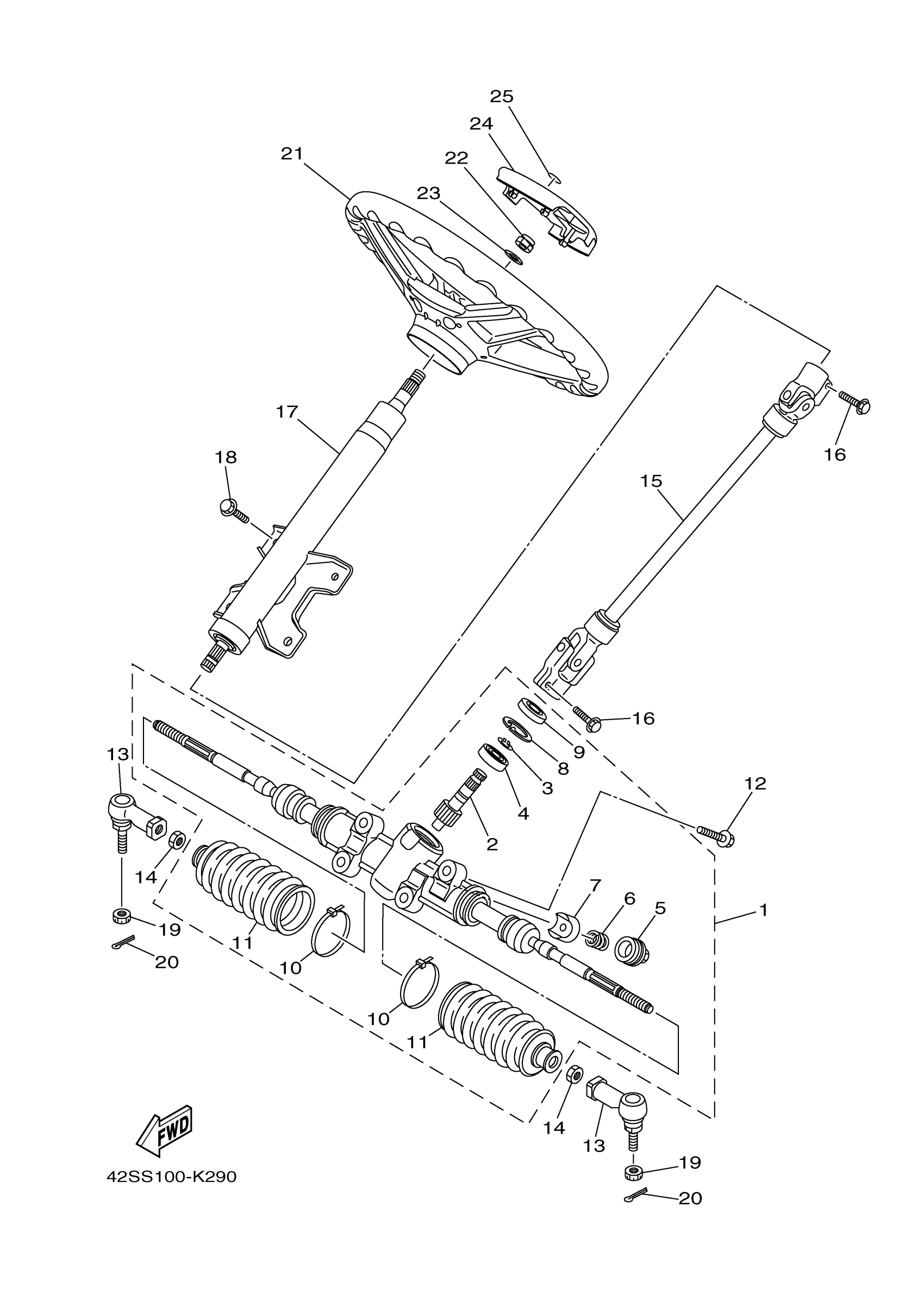

Yamaha YXR7FSPD (700 SPORT EDITION 1RBL) 1RBL 2013 STEERING Diagram

#

Description
Price

1

STEERING ASSY

5UG-F3400-00-00

$406.68

2

. GEAR, STEERING DRIVE

5UG-F3863-00-00

Unavailable

3

. CIRCLIP

5UG-F3183-00-00

Unavailable

4

PLANE BEARING, STE

5UG-F3812-00-00

$14.32

5

COVER, ADJUST

5UG-F387G-00-00

$3.54

6

SPRING, PRESSURE

5UG-F387K-00-00

$1.38

7

PAD, PRESSURE

5UG-F387F-00-00

$9.71

8

RING, STOPPER

5UG-F387J-00-00

$2.23

9

SEAL

5UG-F3844-00-00

$5.55

10

BAND

5UG-F3489-00-00

$1.75

11

SEAL,DUST 1

5UG-F3527-01-00

Unavailable

12

BOLT, FLANGE

95022-10025-00

$5.97

13

JOINT, UNIVERSAL 1

5B4-23841-00-00

$60.93

14

NUT 1

1P0-F3833-00-00

$0.92

15

STEERING SHAFT ASS

5UG-F3840-01-00

Unavailable

16

BOLT, FLANGE

95022-08025-00

$6.68

17

COLUMN, STEERING

5UG-F3811-10-00

$194.37

18

BOLT, FLANGE

95812-08020-00

$1.69

19

NUT, CASTLE

90171-12001-00

$2.85

20

PIN, COTTER

91490-20025-00

$1.31

21

STEERING WHEEL KIT

2HC-F3838-09-00

Unavailable

22

NUT, SELF-LOCKING

90185-12008-00

$7.45

23

YBS66-12 WASHER,PLAIN

92990-12200-00

$6.17

24

COVER, STEERING

16B-F3818-00-00

$18.18

25

TUNING FORK MARK

16B-F175B-10-00

Unavailable
