- YXR7FSPB (RHINO 700 SPORT EDITION) 1RB8 2012
REAR MASTER CYLINDER

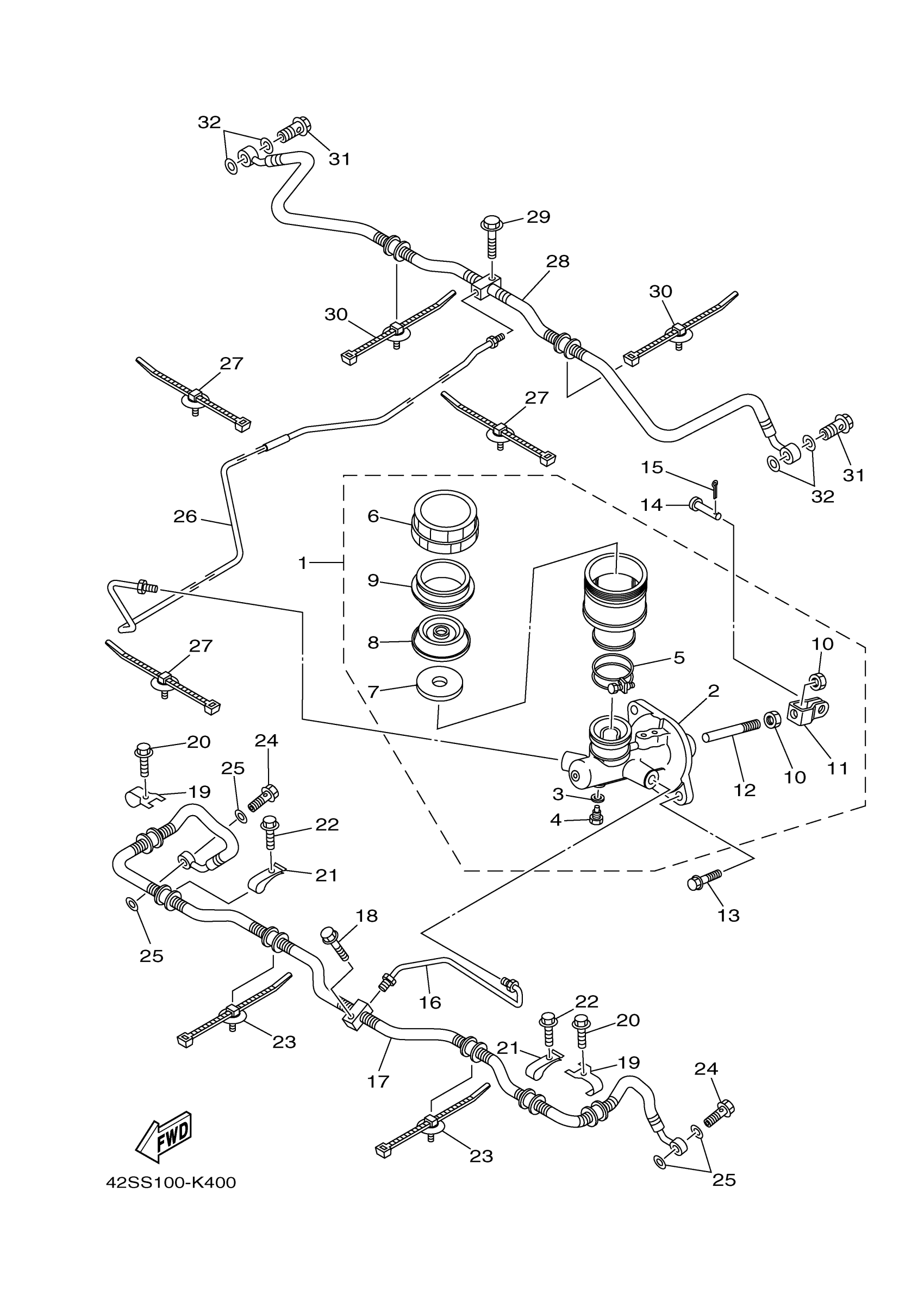

Yamaha YXR7FSPB (RHINO 700 SPORT EDITION) 1RB8 2012 REAR MASTER CYLINDER Diagram
#
1
MASTER CYLINDER ASSY
5B4-2583T-00-00
Unavailable
2
CYLINDER KIT, MASTER
5UG-W0042-00-00
$97.99
3
WASHER, OIL BOLT
5UG-25878-00-00
Unavailable
4
BOLT, OIL 1
5UG-25877-00-00
$0.99
5
BAND
5UG-25719-00-00
$6.99
6
CAP, RESERVOIR
5UG-25852-00-00
$17.49
7
FLOAT, RESERVOIR
5UG-25853-00-00
$10.99
8
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
$9.99
9
BUSH,DIAPHRAGM
5UG-25855-00-00
$5.49
10
NUT, HEXAGON SMALL
95317-08700-00
$9.49
11
JOINT
2YK-27222-00-00
$21.99
12
PUSH ROD COMP.
5UG-25880-00-00
Unavailable
13
BOLT, FLANGE
90105-08129-00
$4.88
14
PIN, CLEVIS
90240-08005-00
$8.49
15
PIN, COTTER
91490-20025-00
$1.99
16
PIPE, BRAKE 2
5B4-F5882-01-00
Unavailable
17
HOSE,BRAKE 1
5B4-F5872-10-00
Unavailable
18
BOLT, FLANGE
90105-06833-00
Unavailable
19
HOLDER, BRAKE HOSE
5ND-F5875-01-00
Unavailable
20
BOLT, FLANGE
95817-06012-00
Unavailable
21
BAND
5UG-F3192-01-00
Unavailable
22
BOLT, FLANGE
95817-06016-00
Unavailable
23
CLAMP
5B4-F1338-00-00
Unavailable
24
BOLT, UNION
90401-10015-00
Unavailable
25
WASHER, PLATE(481)
90201-10118-00
Unavailable
26
PIPE,BRAKE
5B4-F5871-01-00
Unavailable
27
CLAMP
5B4-F1338-00-00
Unavailable
28
HOSE,BRAKE 2
5B4-F5873-10-00
Unavailable
29
BOLT, FLANGE
90105-06833-00
Unavailable
30
CLAMP
5B4-F1338-00-00
Unavailable
31
BOLT, UNION
90401-10015-00
Unavailable
32
WASHER, PLATE(481)
90201-10118-00
Unavailable
