Description

Price

1

PIPE, FUEL 1

5B4-13971-00-00

$128.99

2

CLAMP

90464-12012-00

$3.35

3

FUEL TANK

5B4-F4110-00-00

Unavailable

4

FUEL PUMP COMP.

5B4-13907-04-00

$492.99

5

SENDER ASSY

5B4-85701-00-00

Unavailable

6

RING

5B4-U7773-00-00

Unavailable

7

PACKING, SEAL

F1B-67747-00-00

Unavailable

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

CAP ASSY

BVG-24610-00-00

Unavailable

10

CLAMP

90464-12830-00

$1.49

11

STAY, FUEL TANK 1

5B4-F4157-00-00

Unavailable

12

BOLT, FLANGE

90105-08879-00

$4.29

13

DAMPER, PLATE 1

5UG-F414H-00-00

$18.99

14

DAMPER, PLATE 2

5UG-F414J-00-00

$38.99

15

DAMPER, SIDE COVER

5B4-F4145-00-00

Unavailable

16

BOLT, FLANGE

90105-08867-00

Unavailable

17

CLAMP

90464-25826-00

Unavailable

18

PIPE 2

5B4-F4312-00-00

Unavailable

19

CLAMP(2YK)

90464-13103-00

Unavailable

20

PIPE 4

5B4-F4314-00-00

Unavailable

21

CLIP

90467-100A1-00

Unavailable

22

PIPE JOINT ASSY

3B4-24380-11-00

Unavailable

23

GROMMET (1E6)

90480-15058-00

Unavailable

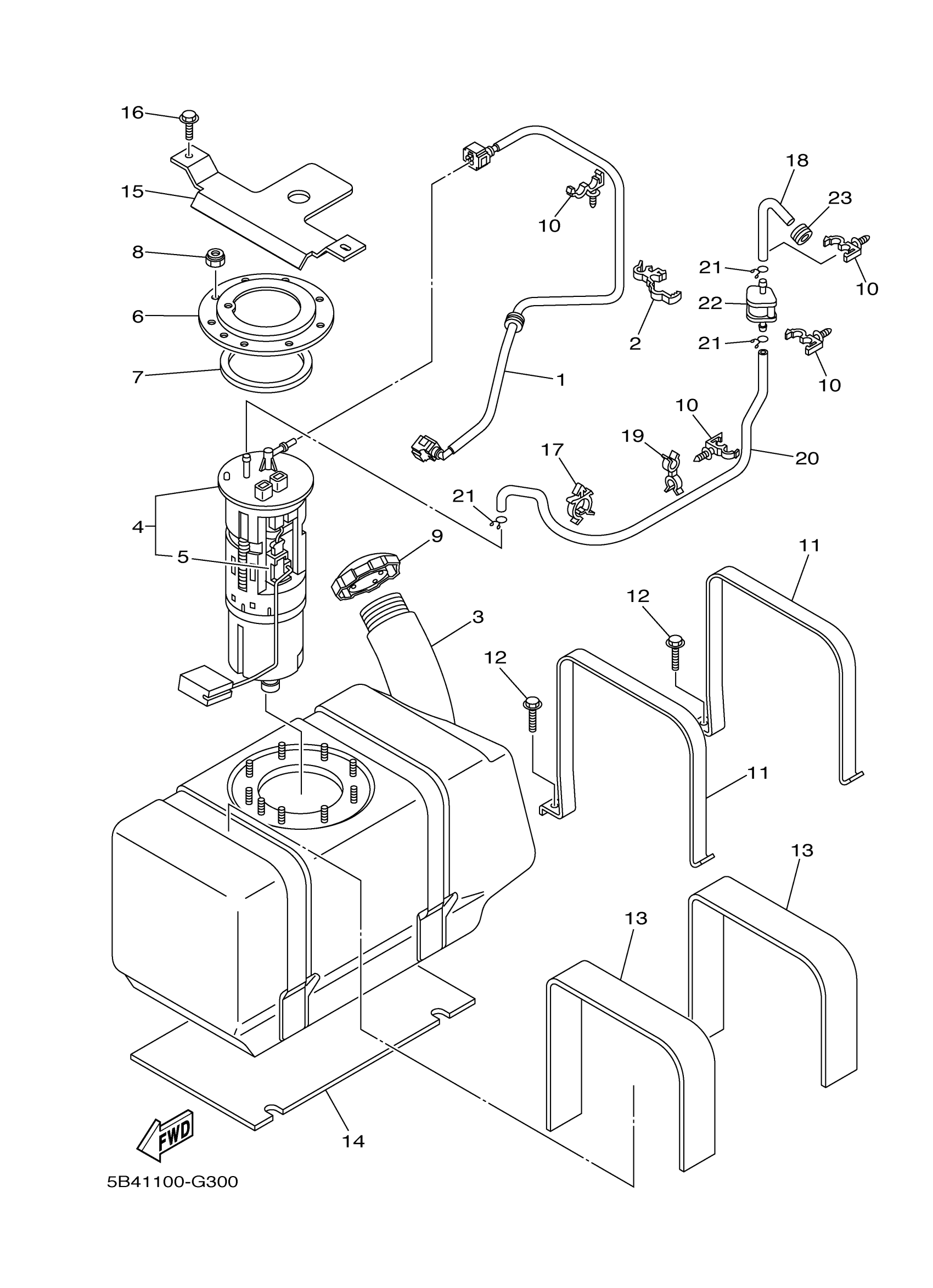

Yamaha YXR7FSPB (RHINO 700 SPORT EDITION) 1RB8 2012 FUEL TANK Diagram

PIPE, FUEL 1

CLAMP

FUEL TANK

FUEL PUMP COMP.

SENDER ASSY

RING

PACKING, SEAL

NUT, SELF-LOCKING

CAP ASSY

CLAMP

STAY, FUEL TANK 1

BOLT, FLANGE

DAMPER, PLATE 1

DAMPER, PLATE 2

DAMPER, SIDE COVER

BOLT, FLANGE

CLAMP

PIPE 2

CLAMP(2YK)

PIPE 4

CLIP

PIPE JOINT ASSY

GROMMET (1E6)
