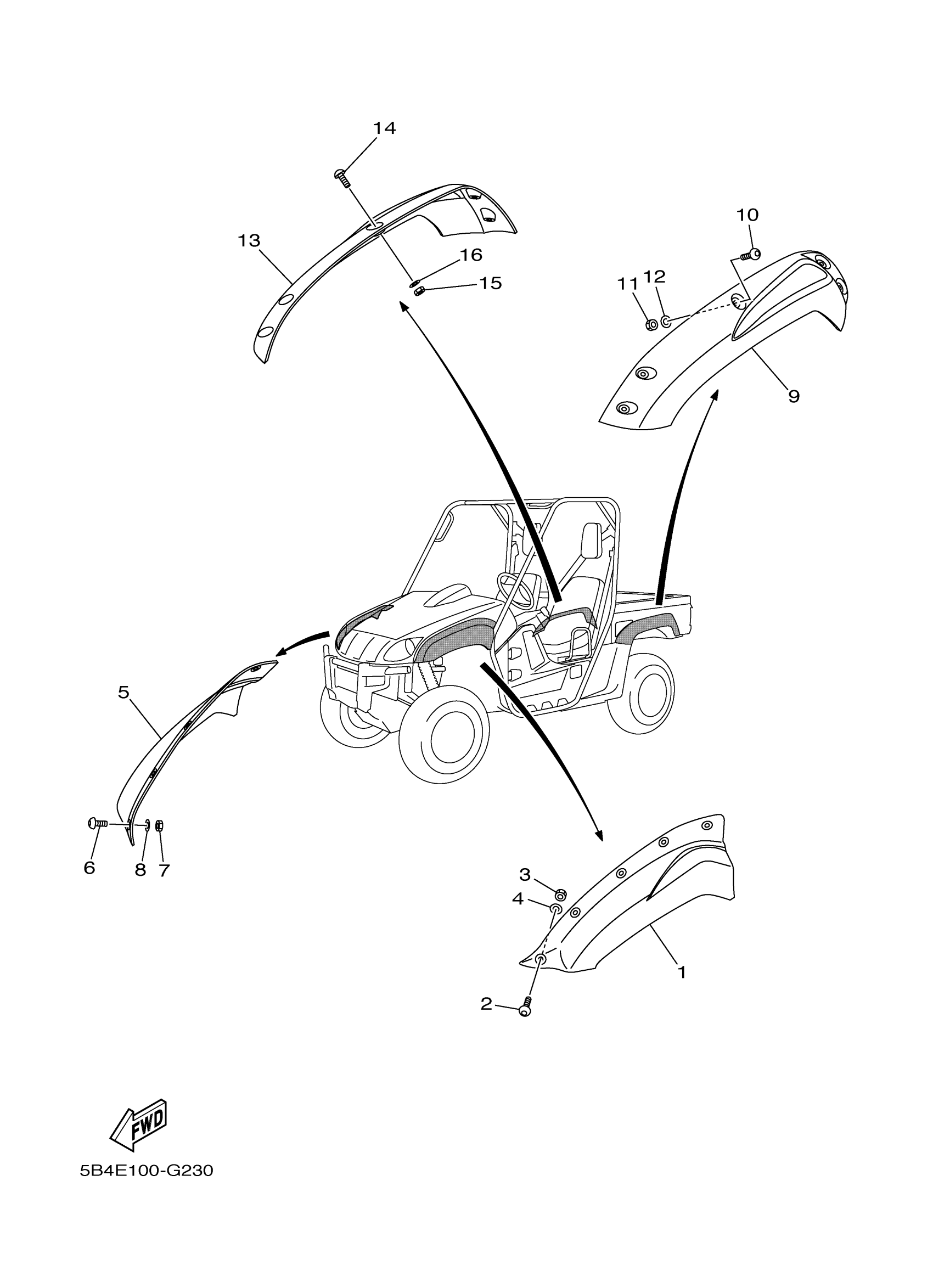

Yamaha YXR7FSPB (RHINO 700 SPORT EDITION) 1RB8 2012 FENDER Diagram

FENDER, OVER

5B4-F1551-00-00

$38.52

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$2.17

WASHER,PLATE

90201-068M4-00

$1.32

FENDER, OVER 2

5B4-F1555-00-00

Unavailable

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$2.17

WASHER,PLATE

90201-068M4-00

$1.32

FENDER, OVER 3

5B4-F1559-00-00

$59.99

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$2.17

WASHER,PLATE

90201-068M4-00

$1.32

FENDER, OVER 4

5B4-F1560-00-00

$70.23

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

NUT, SELF-LOCKING

95617-06100-00

$2.17

WASHER,PLATE

90201-068M4-00

$1.32
