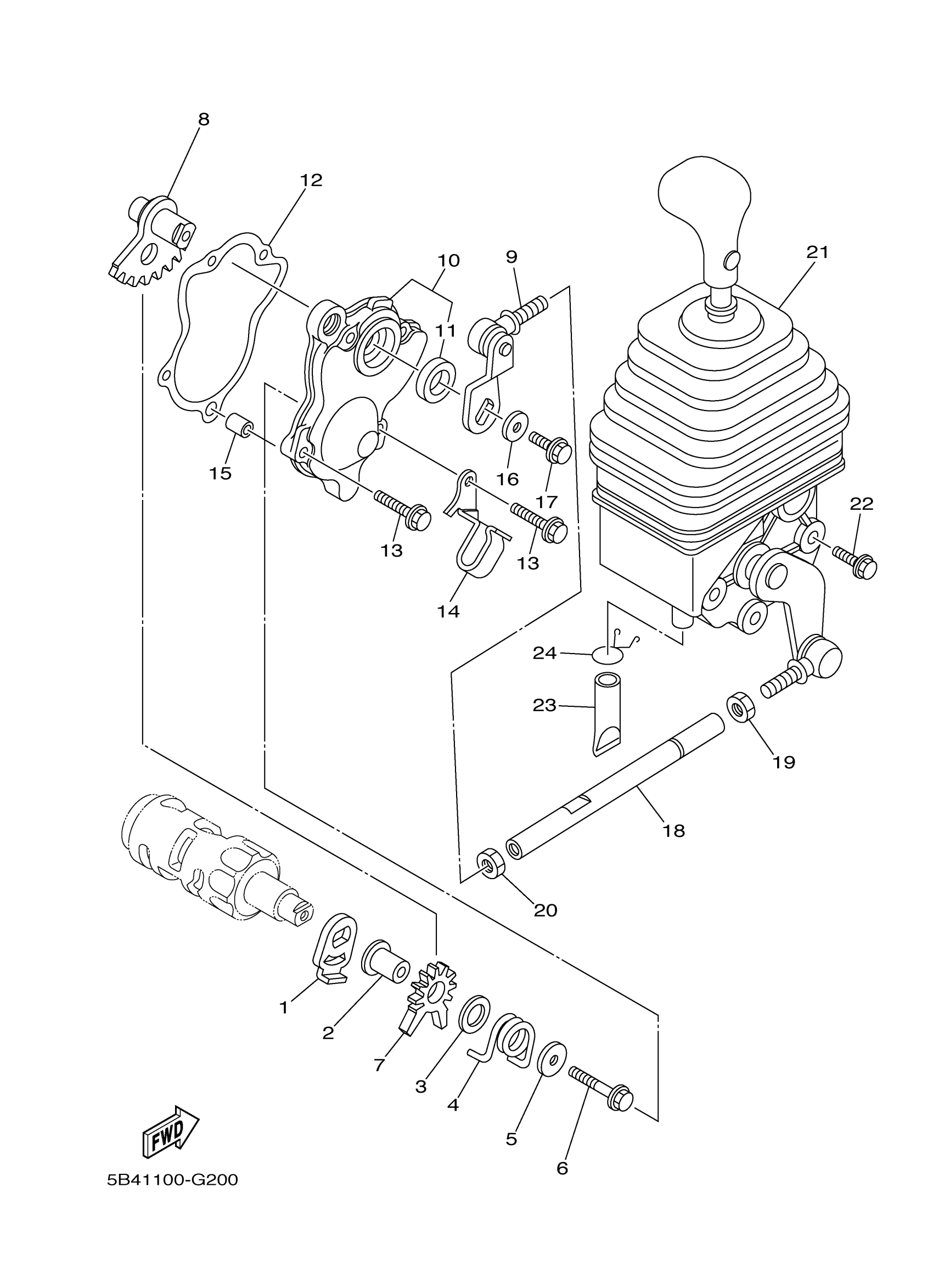

Yamaha YXR7FSPA (RHINO 700 SPORT) 42SL 2011 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

WASHER, PLATE

90201-13013-00

$8.49

4

SPRING, TORSION(1YW)

90508-35764-00

$5.60

5

WASHER, PLATE

90201-06036-00

$8.49

6

95812-06035

95812-06035-00

$4.94

7

LEVER

5KM-18191-00-00

$24.99

8

SHIFT SHAFT COMP.

3B4-18103-11-00

$61.99

9

SHIFT GUIDE COMP.

5B4-18104-00-00

Unavailable

10

SHIFTER BRKT. ASSY

3B4-18380-00-00

Unavailable

11

OIL SEAL (3X3)

93102-15212-00

$9.49

12

GASKET

3B4-18146-00-00

$6.99

13

BOLT, FLANGE

95022-06020-00

$3.62

14

CLAMP

90462-10048-00

Unavailable

15

PIN, DOWEL

99530-08012-00

Unavailable

16

WASHER, PLATE

90201-06036-00

$8.49

17

BOLT, FLANGE

90105-06175-00

Unavailable

18

ROD, SHIFT

5B4-18115-00-00

Unavailable

19

NUT(1KT)

90170-08358-00

Unavailable

20

. NUT

95380-08700-00

Unavailable

21

SHIFTER ASSY

5UG-18300-12-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

Unavailable

23

PIPE, DRAIN

4GY-1443E-00-00

Unavailable

24

CLIP (806-24358-00)

90467-15012-00

Unavailable
