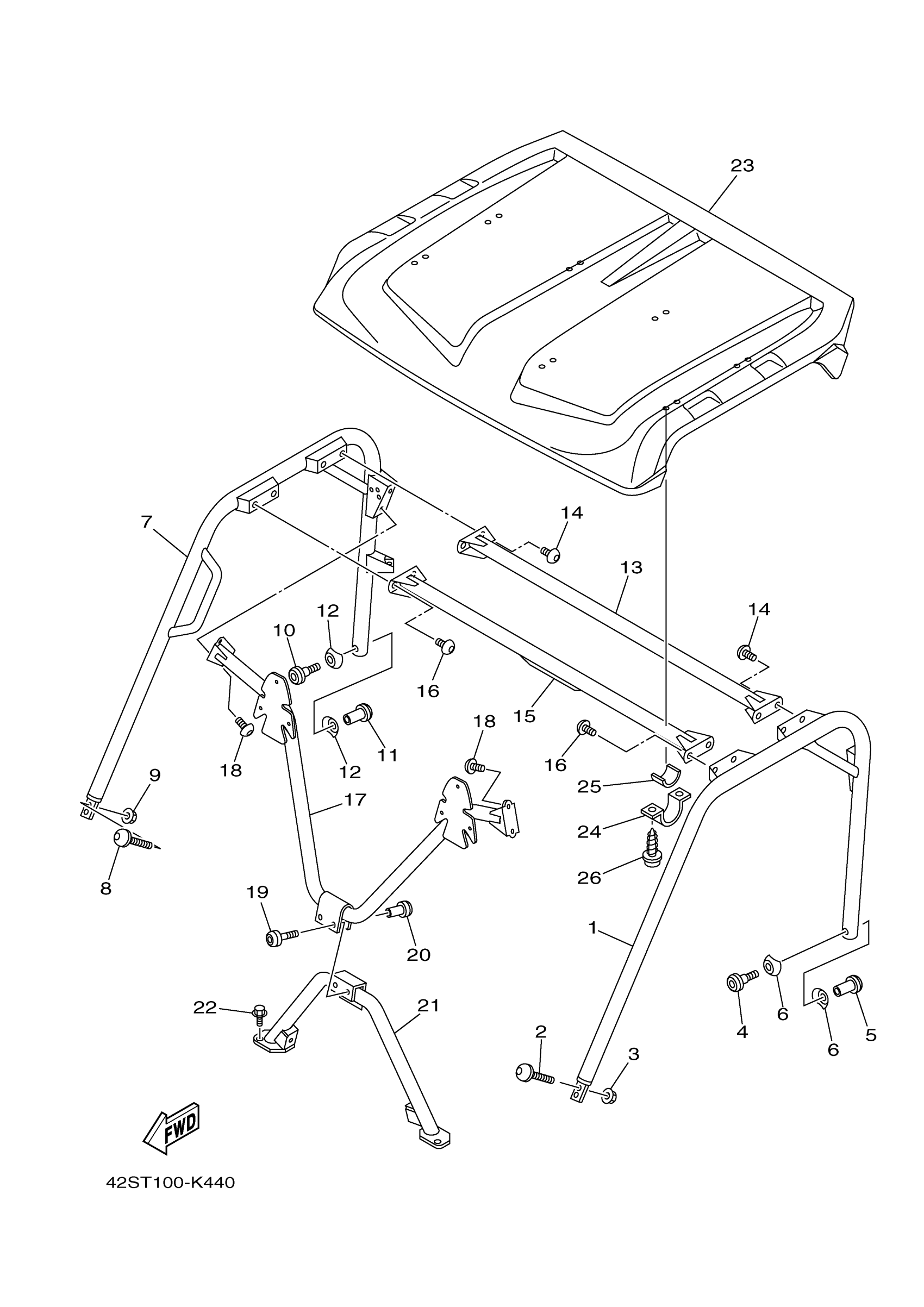

Yamaha YXR7FSPA (RHINO 700 SPORT) 42SL 2011 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
1RB-K831A-00-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
7
SUPPORT, ROOF 4
1RB-K831E-00-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
13
MEMBER, ROOF FRAME
1RB-K8392-00-00
Unavailable
15
MEMBER, CROSS ROOF
1RB-K8336-00-00
Unavailable
17
ROOF SUPPORT ASSY
1RB-K830A-00-00
Unavailable
21
ROOF SUPPORT ASSY
1RB-K830B-00-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
COVER, SUN ROOF
5UG-K8314-00-00
Unavailable
24
CLAMP, SUPPORT
5UG-K8366-00-00
Unavailable
25
DAMPER
5UG-K7588-01-00
Unavailable
26
SCREW, TAPPING
90167-06800-00
Unavailable
