- YXR7FSPA (RHINO 700 SPORT) 42SL 2011
CRANKCASE COVER 1

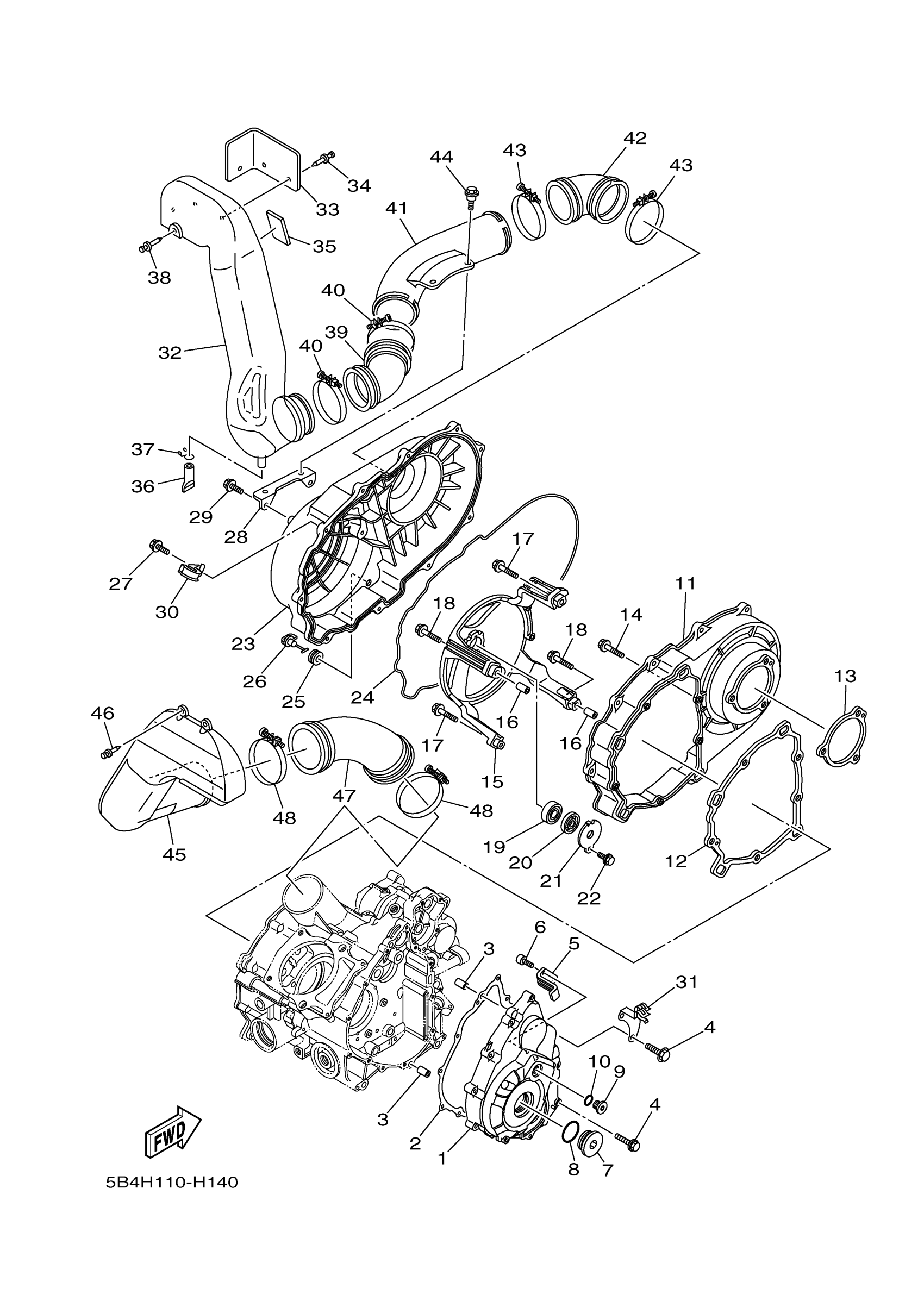

Yamaha YXR7FSPA (RHINO 700 SPORT) 42SL 2011 CRANKCASE COVER 1 Diagram
#
1
COVER, CRANKCASE 1
3B4-15411-01-00
$246.99
2
GASKET, CRANKCASE COVER 1
3B4-15451-00-00
$32.99
3
PIN, DOWEL(2VG)
99530-10116-00
$4.25
4
BOLT, FLANGE
95022-06030-00
$3.72
5
PLATE
3B4-15113-00-00
$6.99
6
BOLT
91312-05014-00
$2.97
7
PLUG, STRAIGHT SCREW
90340-36002-00
$15.99
8
O-RING
93210-35804-00
$0.48
9
PLUG, STRAIGHT SCREW
90340-14011-00
$22.99
10
O-RING (2H9)
93210-14369-00
$7.49
11
COVER, CRANKCASE 2
5B4-15421-00-00
Unavailable
12
GASKET
3B4-15453-01-00
$16.49
13
SEAL, CRANKCASE
3B4-15315-00-00
$12.99
14
95822-06030
95822-06030-00
$1.38
15
HOUSING, BEARING
3B4-15442-00-00
Unavailable
16
PIN, DOWEL(2VG)
99530-10116-00
$4.25
17
95822-06030
95822-06030-00
$1.38
18
BOLT, FLANGE
95817-06040-00
Unavailable
19
BEARING(3WF)
93306-20119-00
Unavailable
20
OIL SEAL
93101-12168-00
Unavailable
21
PLATE, BEARING COVER
4WV-15381-00-00
Unavailable
22
BOLT, FLANGE
95022-06016-00
Unavailable
23
COVER, CRANKCASE 3
5B4-15431-01-00
Unavailable
24
SEAL, CRANKCASE
3B4-15379-00-00
Unavailable
25
GROMMET (462)
90480-13018-00
Unavailable
26
PLUG, DRAIN
5KM-15351-00-00
Unavailable
27
BOLT, FLANGE
95817-06020-00
Unavailable
28
BRACKET
2P5-15199-00-00
Unavailable
29
BOLT, FLANGE
95817-06012-00
Unavailable
30
CLAMP
90462-10049-00
Unavailable
31
GUIDE, OIL HOSE
5B4-13487-00-00
Unavailable
32
DUCT, AIR
5B4-E5471-00-00
Unavailable
33
PROTECTOR, COVER
5B4-E5499-00-00
Unavailable
34
RIVET
90269-06800-00
Unavailable
35
PLATE, DAMPER 1
5B4-F3421-00-00
Unavailable
36
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
37
CLIP(62Y)
90467-15M14-00
Unavailable
38
RIVET
90269-06800-00
Unavailable
39
SEAL, AIR DUCT
5B4-E5474-00-00
Unavailable
40
CLAMP,HOSE
90460-85135-00
Unavailable
41
DUCT, AIR
5B4-E5475-00-00
Unavailable
42
SEAL, CRANKCASE
5B4-E5379-00-00
Unavailable
43
CLAMP,HOSE
90460-85135-00
Unavailable
44
BOLT
90109-06172-00
Unavailable
45
AIR DUCT ASSY
5B4-E5470-00-00
Unavailable
46
RIVET
90269-08813-00
Unavailable
47
SEAL, AIR DUCT
5B4-E5472-00-00
Unavailable
48
CLAMP,HOSE
90460-85135-00
Unavailable
