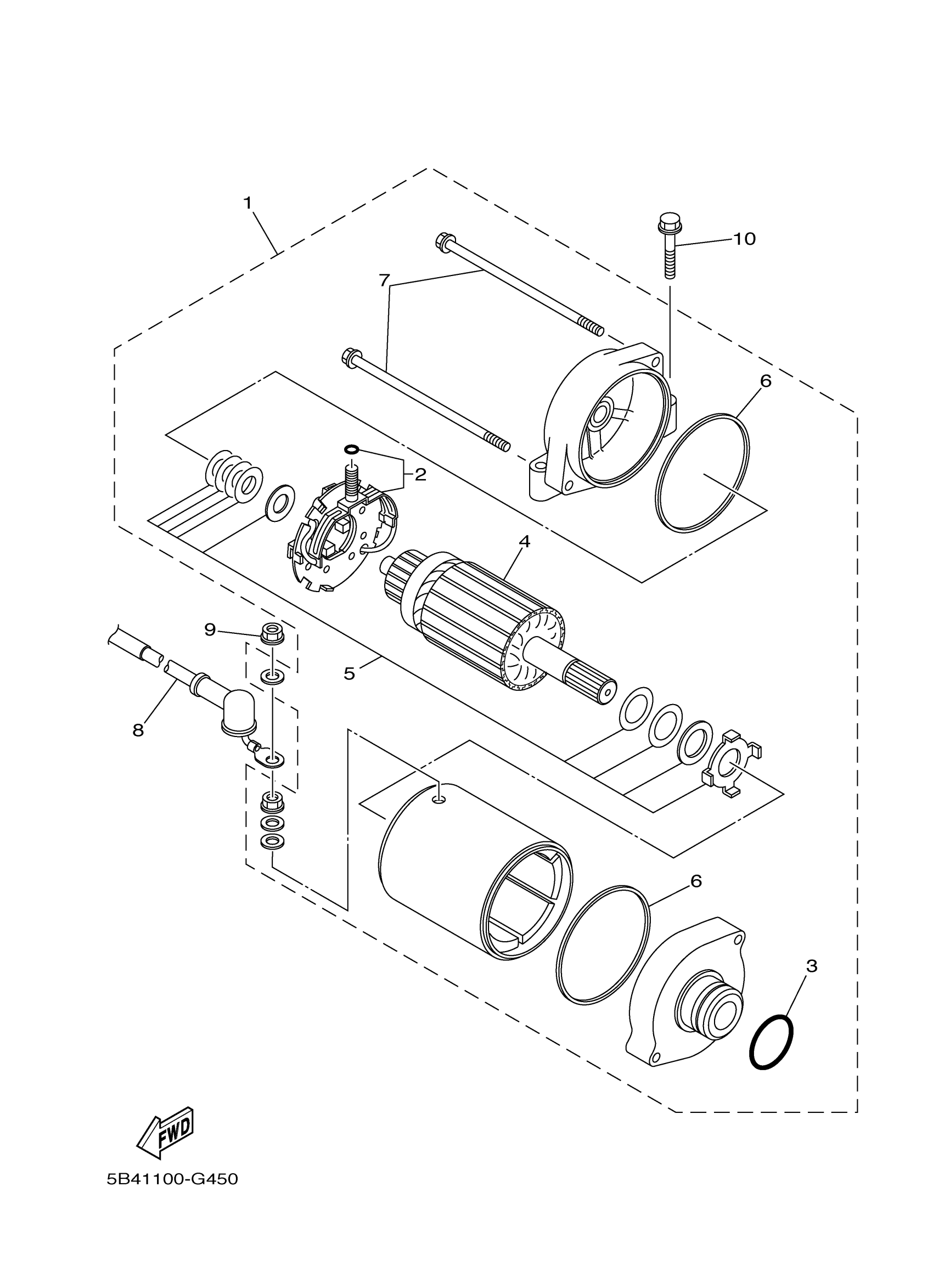

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

1S3-81890-00-00

$192.90

2

BRUSH SET

3AJ-81801-00-00

$110.54

3

O-RING (437)

93210-24235-00

$5.72

4

ARMATURE ASSY

4NK-81850-00-00

$307.82

5

WASHER KIT

3KS-81809-00-00

$4.71

6

GASKET

35C-81844-00-00

Unavailable

7

BOLT

3AJ-81826-00-00

$21.17

8

CORD, STARTER MOTOR

5UG-H1815-02-00

$29.28

9

NUT

4XV-8182A-00-00

$6.28

10

BOLT, FLANGE

95022-06030-00

$1.40
