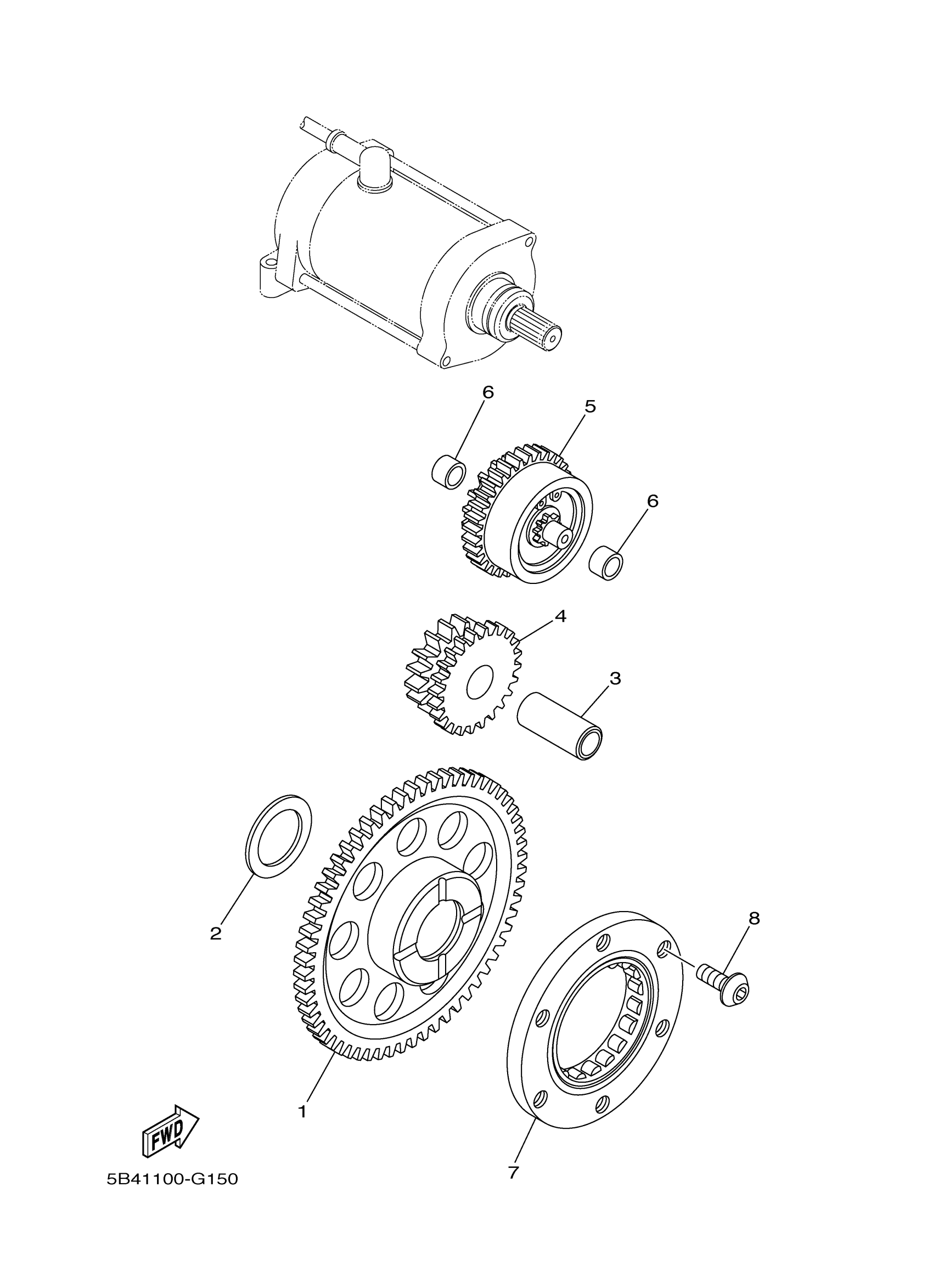

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 STARTER CLUTCH Diagram

#

Description

Price

1

GEAR 3 (49T)

3B4-15515-00-00

$170.23

2

WASHER, PLATE(1YW)

90201-286K9-00

$5.41

3

SHAFT 2

3B4-15522-00-00

$12.47

4

GEAR, IDLER 2

3B4-15517-01-00

Unavailable

5

DAMPER ASSY

1S3-15560-01-00

Unavailable

6

BUSH, SOLID

90380-10002-00

$2.78

7

STARTER ONE-WAY ASSY

5KM-15590-00-00

$214.85

8

SCREW

90149-08023-00

$6.12
