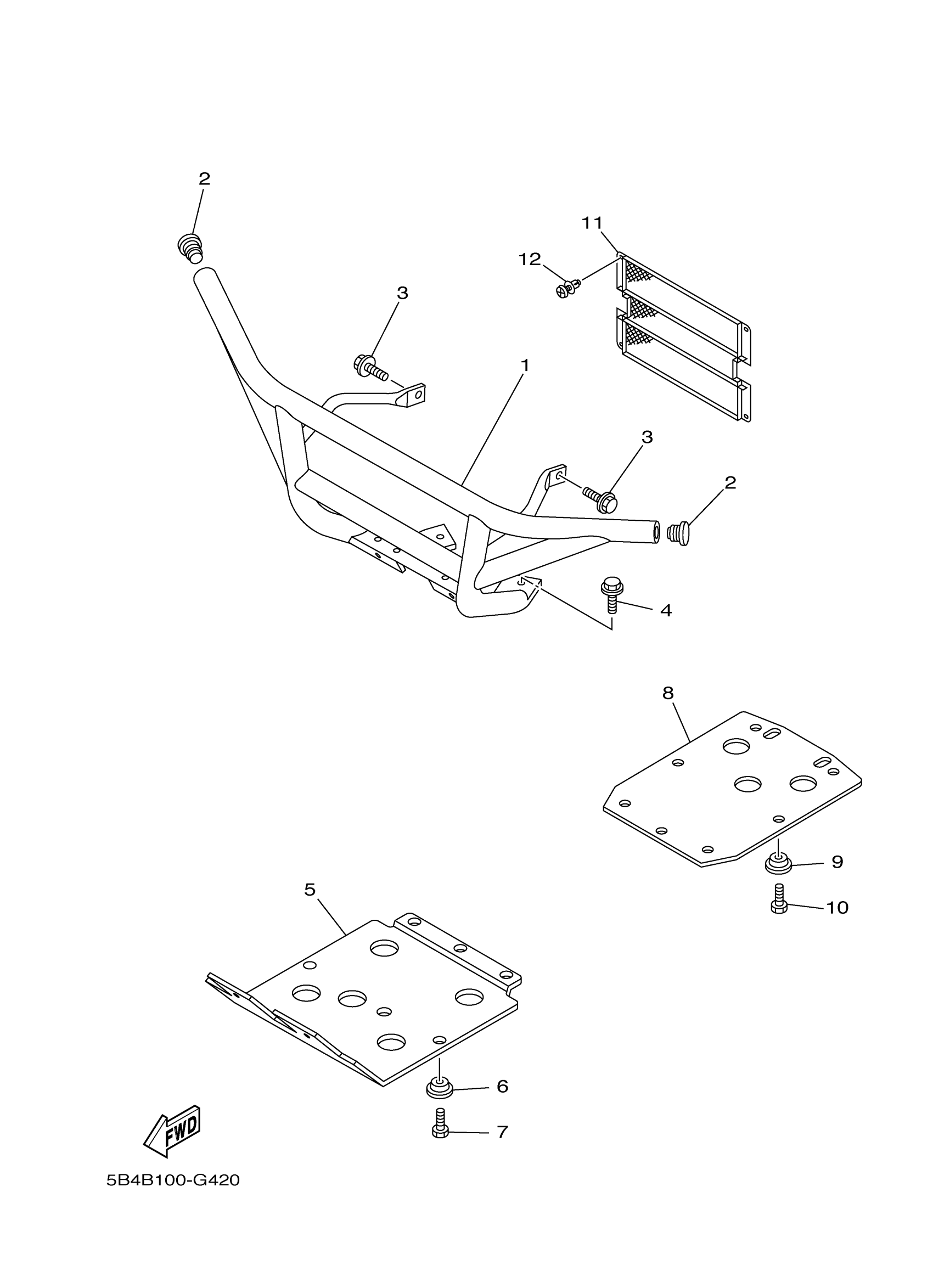

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 GUARD Diagram

#

Description

Price

1

BAR, CARRY FRONT

1RB-F845N-10-00

Unavailable

2

PLUG (FRONT BUMPER)

5UG-F2417-00-00

$5.31

3

BOLT, FLANGE

95817-10020-00

$5.10

4

BOLT, FLANGE

95812-12025-00

$6.62

5

COVER,LOWER

2P5-F8385-01-00

$80.99

6

SPACER

5UG-F8329-01-00

Unavailable

7

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.00

8

COVER,UNDER 2

5UG-F8395-01-00

$83.99

9

SPACER

5UG-F8329-01-00

Unavailable

10

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$1.00

11

LOUVER, 1

5UG-F2858-00-00

Unavailable

12

RIVET

5UG-F3483-00-00

$3.80
