- YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009
GUARD 2

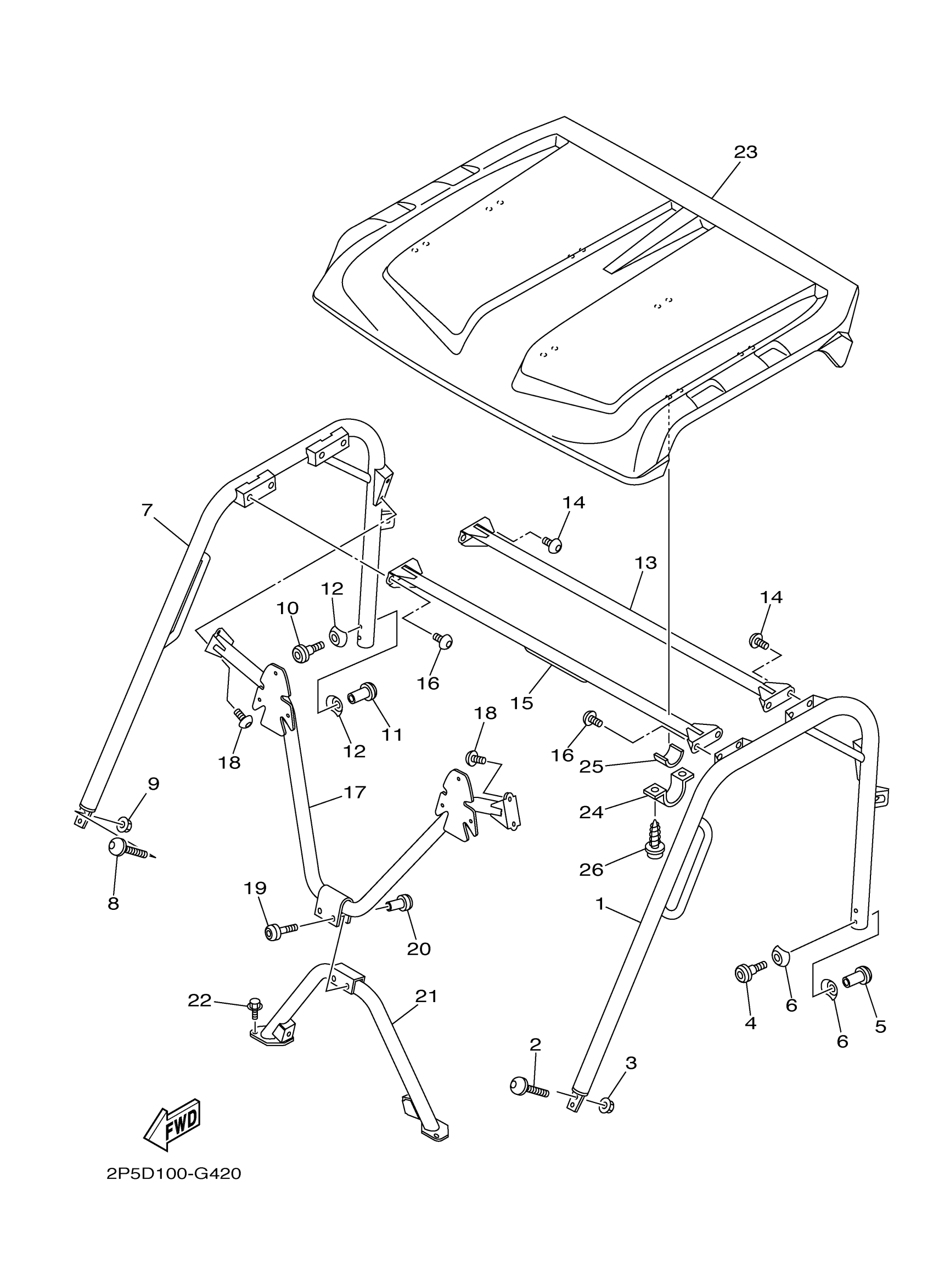

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 GUARD 2 Diagram
#
Description
Price
1
SUPPORT, ROOF 3
5UG-K831A-51-00
Unavailable
2
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
3
NUT, SELF-LOCKING
90185-10008-00
$7.49
4
BOLT
5UG-K7519-00-00
$5.49
5
NUT, SPECIAL
5UG-K7573-00-00
$8.99
6
WASHER 2
5UG-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
5UG-K831E-51-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-10803-00
Unavailable
9
NUT, SELF-LOCKING
90185-10008-00
$7.49
10
BOLT
5UG-K7519-00-00
$5.49
11
NUT, SPECIAL
5UG-K7573-00-00
$8.99
12
WASHER 2
5UG-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
1RB-K8392-00-00
Unavailable
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
MEMBER, CROSS ROOF
1RB-K8336-00-00
Unavailable
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
ROOF SUPPORT ASSY
1RB-K830A-00-00
Unavailable
18
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
19
BOLT
5UG-K7519-00-00
$5.49
20
NUT, SPECIAL
5UG-K7573-00-00
$8.99
21
ROOF SUPPORT ASSY
5UG-K830B-51-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
COVER, SUN ROOF
5UG-K8314-00-00
Unavailable
24
CLAMP, SUPPORT
5UG-K8366-00-00
Unavailable
25
DAMPER
5UG-K7588-01-00
Unavailable
26
SCREW, TAPPING
90167-06800-00
Unavailable
