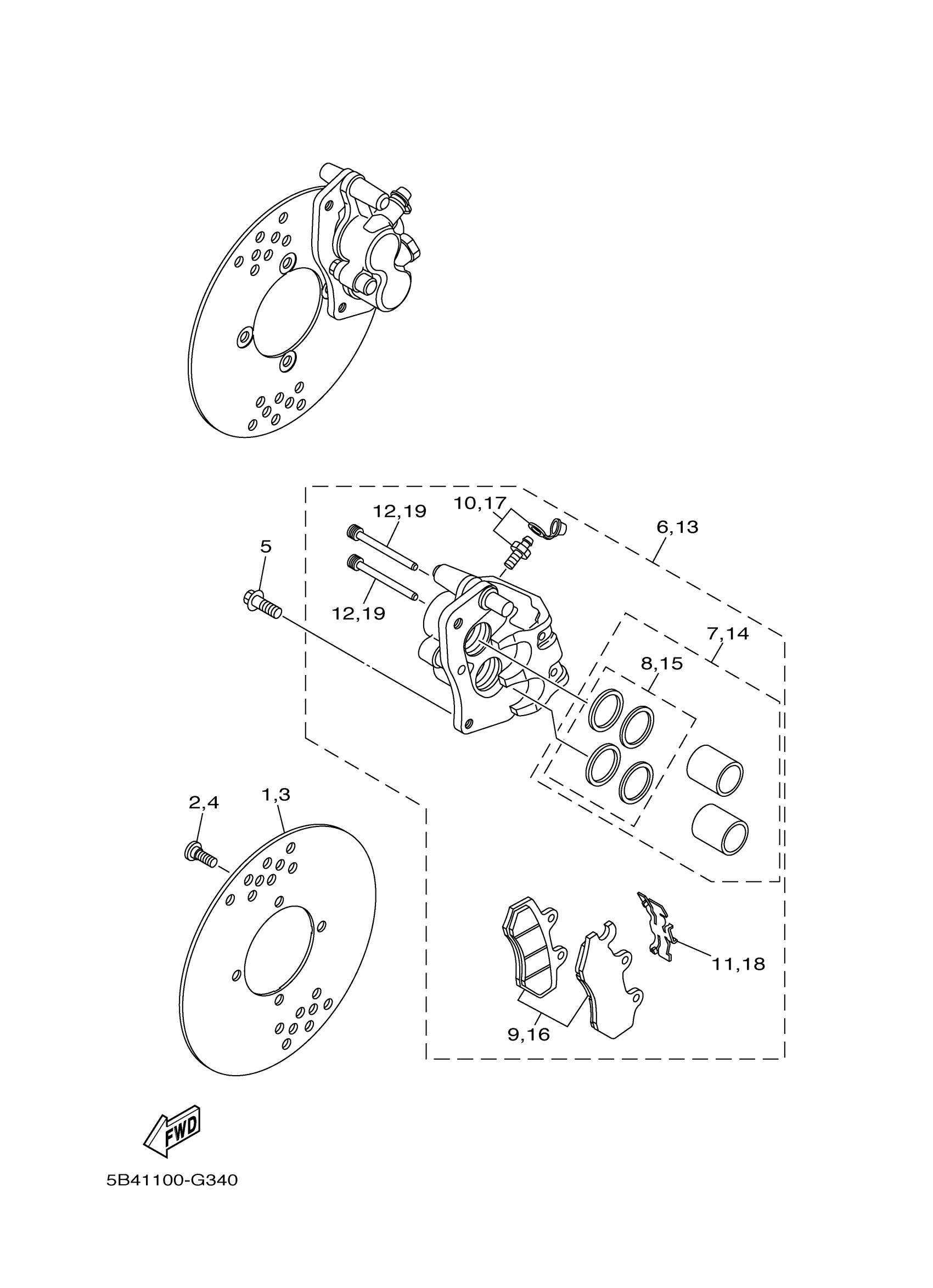

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 FRONT BRAKE CALIPER Diagram

Description

Price

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$56.24

BOLT

90109-08087-00

$2.65

DISC, BRAKE (LEFT)

5B4-F582T-00-00

$56.24

BOLT

90109-08087-00

$2.65

BOLT, FLANGE

90105-10265-00

$3.89

CALIPER ASSY (LEFT)

5B4-2580T-01-00

$421.97

PISTON ASSY, CALIPER

3LD-25802-00-00

$48.32

CALIPER SEAL KIT

3JD-25803-00-00

$18.62

BRAKE PAD KIT

5B4-W0045-00-00

$51.94

BLEED SCREW KIT

36Y-W0048-00-00

$8.51

SPRING, PAD

3LD-25934-01-00

$26.56

PIN, PAD

3FV-25924-00-00

$20.15

CALIPER ASSY (RIGHT)

5B4-2580U-01-00

$375.40
