Description

Price

1

FRAME COMP.

5B4-F1110-00-00

Unavailable

2

DAMPER, RUBBER 1

5B4-21485-01-00

$114.99

3

DAMPER, RUBBER 1

5B4-21485-01-00

$114.99

4

NUT, S/L FLANGE

95602-10200-00

$4.82

5

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

BOLT, FLANGE

95812-10035-00

$5.60

8

BOLT, FLANGE

90105-10314-00

Unavailable

9

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

10

REINFORCEMENT, FRAME 1

5B4-F1986-00-00

Unavailable

11

BOLT, FLANGE

95817-10020-00

$8.49

12

SEAT BRACKET COMP.

5B4-F4103-01-00

Unavailable

13

BOLT, FLANGE

90105-08867-00

$15.99

14

SUPPORT, SEAT

5UG-F114H-01-00

Unavailable

15

SUPPORT, SEAT

5UG-F114J-01-00

Unavailable

16

BOLT, FLANGE

90105-08867-00

$15.99

17

BRKT.

5UG-F116B-00-00

Unavailable

18

BOLT, FLANGE

90105-06831-00

Unavailable

19

LABEL 7

5B4-F151K-00-00

Unavailable

20

LABEL 6

5UG-F151J-00-00

Unavailable

21

TOOL KIT

5B4-F8100-00-00

Unavailable

22

GAUGE, AIR

5UG-F811A-00-00

Unavailable

23

STOPPER, MAIN STAND

5UG-F7114-01-00

Unavailable

24

INSULATOR, HEAT

5B4-F2898-00-00

Unavailable

25

BOLT, FLANGE

90105-06831-00

Unavailable

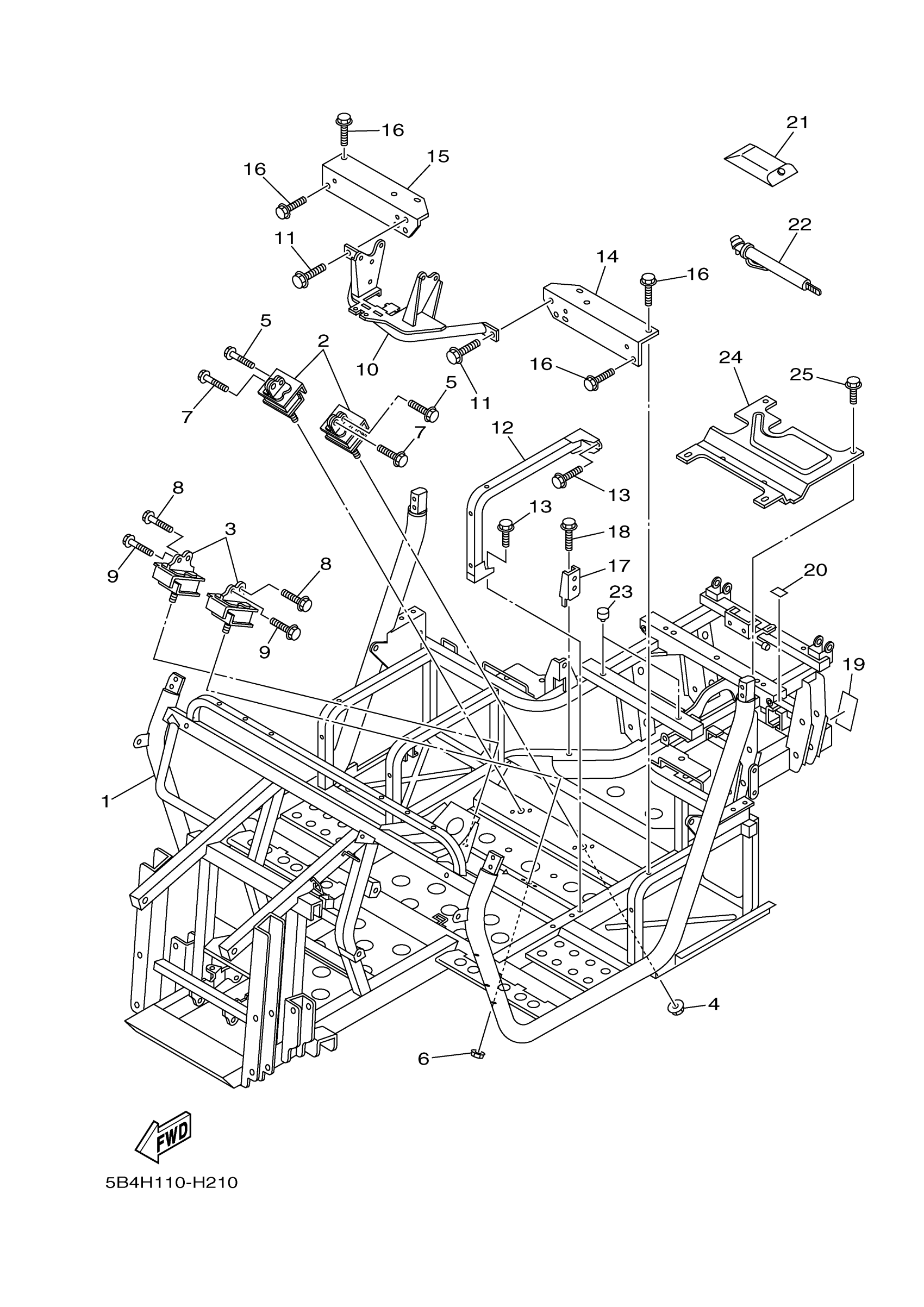

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 FRAME Diagram

FRAME COMP.

DAMPER, RUBBER 1

DAMPER, RUBBER 1

NUT, S/L FLANGE

BOLT, FLANGE(2UJ)

NUT, S/L FLANGE

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE(2UJ)

REINFORCEMENT, FRAME 1

BOLT, FLANGE

SEAT BRACKET COMP.

BOLT, FLANGE

SUPPORT, SEAT

SUPPORT, SEAT

BOLT, FLANGE

BRKT.

BOLT, FLANGE

LABEL 7

LABEL 6

TOOL KIT

GAUGE, AIR

STOPPER, MAIN STAND

INSULATOR, HEAT

BOLT, FLANGE
