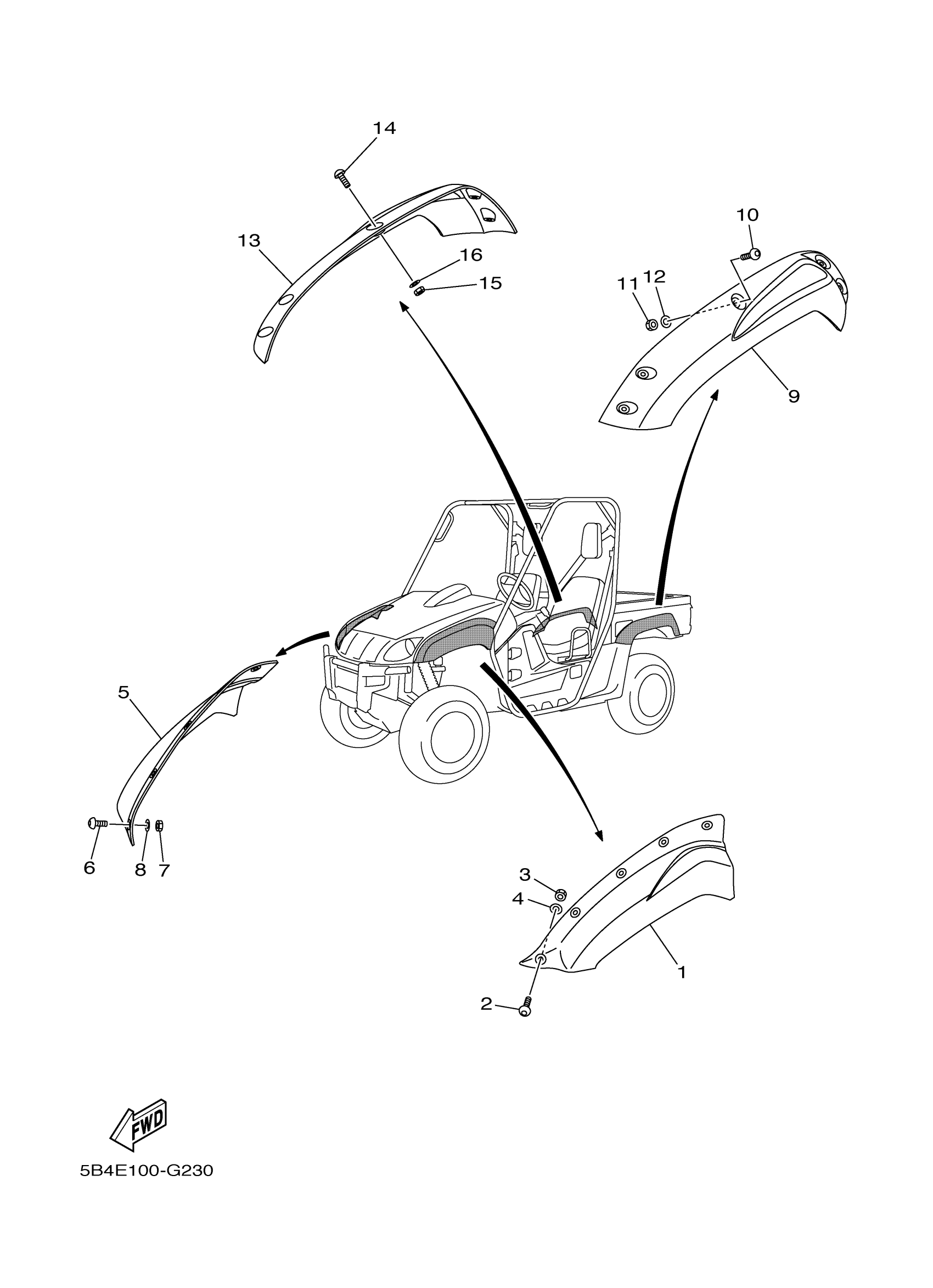

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 FENDER Diagram

#

Description
Price

1

FENDER, OVER

5B4-F1551-00-00

$47.99

2

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

3

NUT, SELF-LOCKING

95617-06100-00

$8.49

4

WASHER,PLATE

90201-068M4-00

$2.13

5

FENDER, OVER 2

5B4-F1555-00-00

$47.99

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

WASHER,PLATE

90201-068M4-00

$2.13

9

FENDER, OVER 3

5B4-F1559-00-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

WASHER,PLATE

90201-068M4-00

$2.13

13

FENDER, OVER 4

5B4-F1560-00-00

$64.99

14

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06090-00

Unavailable

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

WASHER,PLATE

90201-068M4-00

$2.13
