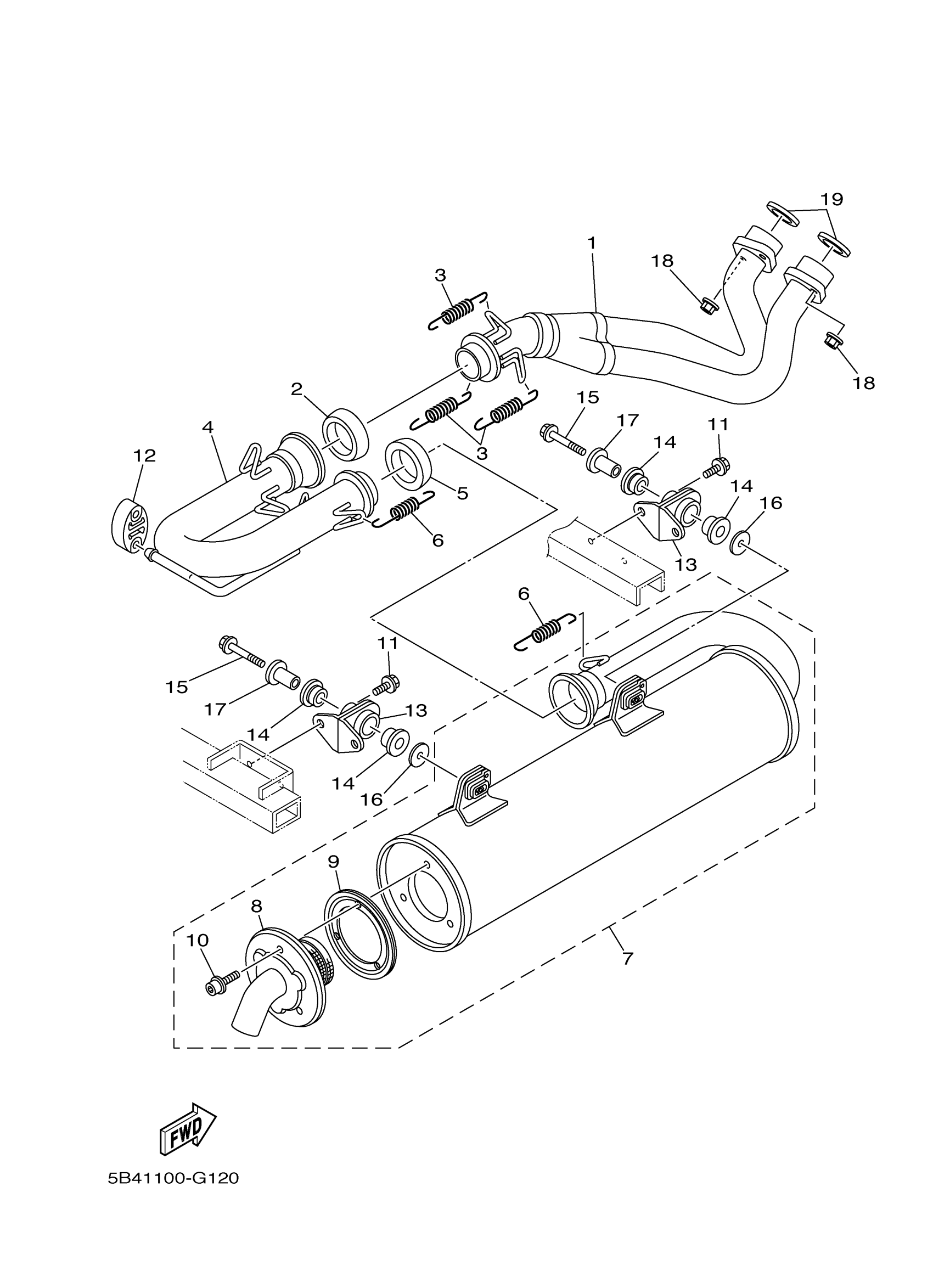

Yamaha YXR7FSP2Y (RHINO 700 FI SPORT EDITION II) 42S1 2009 EXHAUST Diagram

PIPE, EXHAUST 1

5B4-E4611-00-00

Unavailable

GASKET, MUFFLER

3B4-14714-00-00

$29.99

SPRING, TENSION

90506-26010-00

$11.49

PIPE, EXHAUST 2

5B4-E4621-00-00

Unavailable

GASKET, MUFFLER

3B4-14714-00-00

$29.99

SPRING, TENSION

90506-26010-00

$11.49

MUFFLER ASSY 1

5B4-E4710-00-00

Unavailable

. PIPE, OUTLET

5B4-E4752-00-00

Unavailable

. GASKET, SILENCER

5B4-E4755-00-00

Unavailable

. BOLT, MUFFLER

5B4-E4719-00-00

Unavailable

BOLT, FLANGE

95817-08014-00

$5.60

DAMPER, MUFFLER

5UG-14737-00-00

$16.49

MUFF. STAY SUB-KUM

5B4-F1440-00-00

$34.99

DAMPER, FOOTREST 2

5VY-27424-00-00

Unavailable

BOLT, FLANGE

95814-08045-00

$4.29

WASHER, PLATE

90201-08034-00

Unavailable

COLLAR

90387-08039-00

Unavailable

NUT,FLANGE(J10)

95702-08500-00

Unavailable

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
