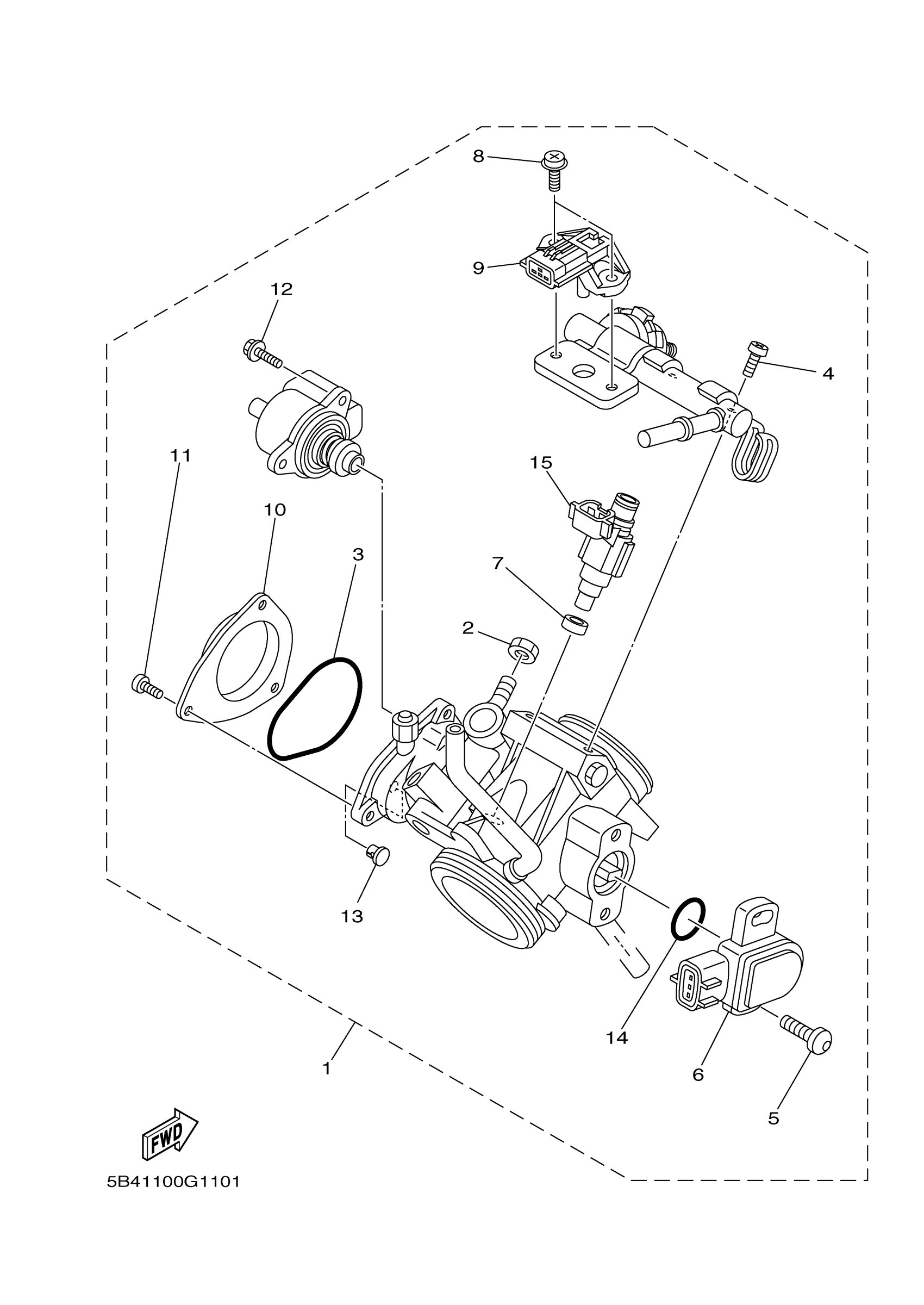

Yamaha YXR7FSEYR (RHINO 700 FI SPECIAL EDITION) 5B4W0 2009 THROTTLE BODY ASSY Diagram

#

Description
Price

1

THROTTLE BODY ASSY

5B4-13750-02-00

$857.44

2

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

3

O-RING

5LP-14147-00-00

$9.69

4

SCREW, PAN

98517-06012-00

$2.99

5

SCREW

8CC-14216-10-00

$6.80

6

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

7

GASKET, MANIFOLD

8FP-13556-00-00

$11.72

8

SCREW, PAN

98507-06010-00

$2.57

9

SENSOR, PRESSURE

2C0-82380-10-00

$138.45

10

COVER 1

5UG-14293-00-00

$9.52

11

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.88

12

SCREW

1S4-14216-00-00

$3.06

13

GUIDE, CABLE

1UY-14155-00-00

$15.12

14

O-RING

5YP-14562-00-00

$6.30

15

INJECTOR

5B4-13761-00-00

$130.13
