- YXR7FSEYR (RHINO 700 FI SPECIAL EDITION) 5B4W0 2009
SEAT

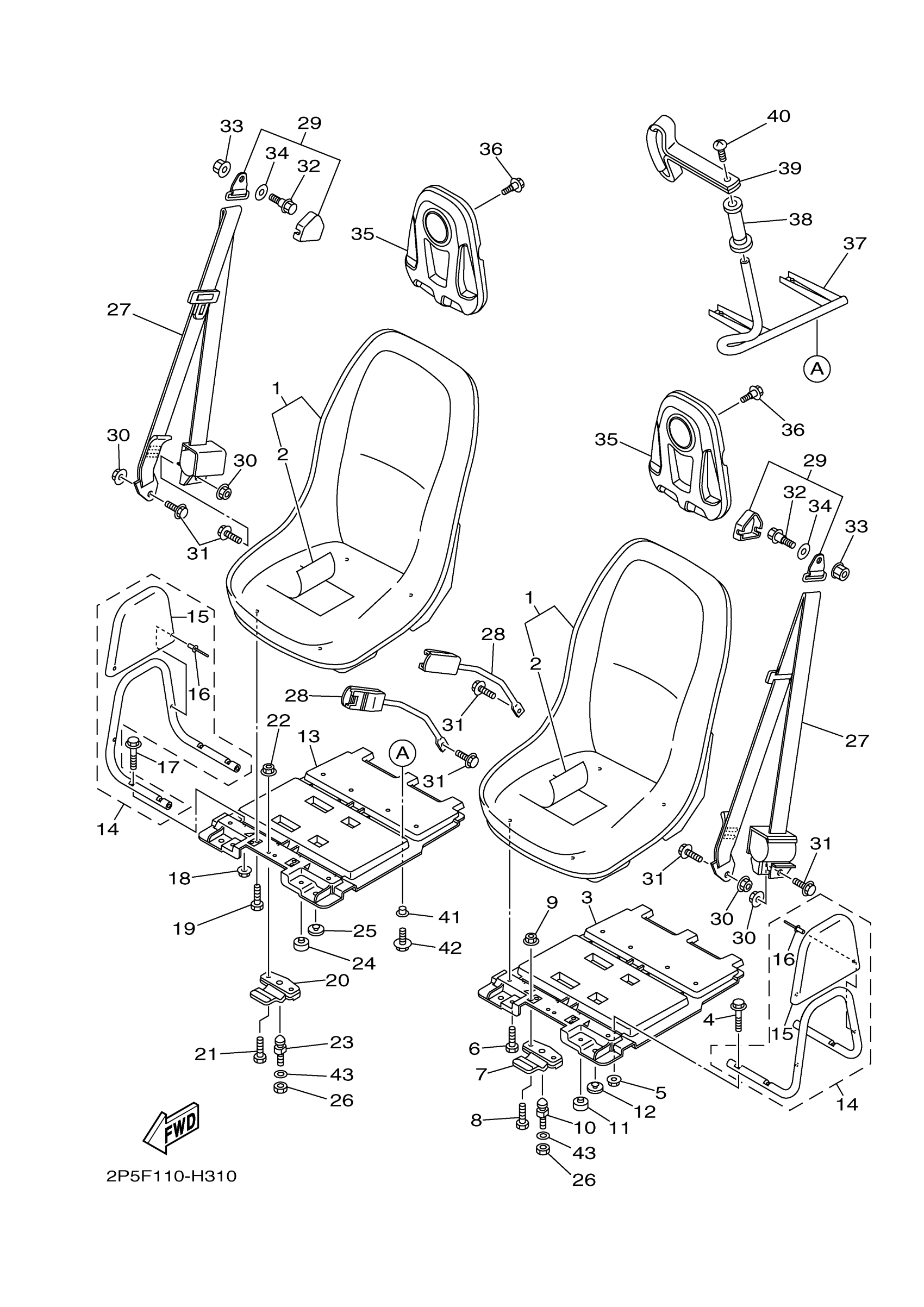

Yamaha YXR7FSEYR (RHINO 700 FI SPECIAL EDITION) 5B4W0 2009 SEAT Diagram
#
1
SINGLE SEAT ASSY
5UG-F4710-30-00
Unavailable
1
SINGLE SEAT ASSY
5UG-F4710-40-00
Unavailable
2
COVER,SEAT
5UG-F470F-30-00
Unavailable
2
. SEAT COVER COMP
5UG-F470F-50-00
Unavailable
3
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
4
BOLT, FLANGE
95812-08030-00
$3.81
5
NUT, SELF-LOCKING
95602-08200-00
$3.20
6
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
7
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
8
BOLT, FLANGE
95817-06040-00
$5.60
9
NUT, U FLANGE
95604-06200-00
$8.49
10
PIN
GH1-U3774-00-00
Unavailable
11
DAMPER, SEAT
4XE-F4747-00-00
$30.99
12
PAD, BATTERY
371-82121-00-00
$8.99
13
BOTTOM PLATE COMP.
5UG-F470E-01-00
$97.99
14
ASSIST GRIP ASSY, 2
5B4-F470K-00-00
Unavailable
15
. COVER,2
5B4-F475X-00-00
Unavailable
16
. RIVET, BLIND
90267-32806-00
Unavailable
17
BOLT, FLANGE
95812-08030-00
$3.81
18
NUT, SELF-LOCKING
95602-08200-00
$3.20
19
BOLT, FLANGE(8AB)
95817-08020-00
$9.49
20
SEAT LOCK ASSY
F1B-U3850-02-00
Unavailable
21
BOLT, FLANGE
95817-06040-00
$5.60
22
NUT, U FLANGE
95604-06200-00
$8.49
23
PIN
GH1-U3774-00-00
Unavailable
24
DAMPER, SEAT
4XE-F4747-00-00
$30.99
25
PAD, BATTERY
371-82121-00-00
$8.99
26
NUT, SELF-LOCKING
90185-10012-00
Unavailable
27
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
28
SEAT BELT KIT
5UG-F47K0-09-00
Unavailable
29
COVER
5UG-F4796-00-00
Unavailable
30
NUT, S/L FLANGE
95602-10200-00
Unavailable
31
BOLT, FLANGE
95817-10020-00
Unavailable
32
BOLT, SPECIAL
5UG-F3394-00-00
Unavailable
33
SPEED NUT
5UG-F4735-01-00
Unavailable
34
WASHER, PLATE
90201-11801-00
Unavailable
35
HEAD REST (BLACK)
5UG-F472L-50-00
Unavailable
36
BOLT(3KJ)
90109-063F5-00
Unavailable
37
ASSIST, GRIP
5B4-F474A-00-00
Unavailable
38
GRIP
5B4-F6241-00-00
Unavailable
39
HANDLE, SEAT
5B4-F4773-00-00
Unavailable
40
SCREW, BINDING
98907-06020-00
Unavailable
41
COLLAR
90387-06210-00
Unavailable
42
BOLT, FLANGE
90105-06831-00
Unavailable
43
WASHER, PLATE
90201-109U6-00
Unavailable
