- YXR7FSEYR (RHINO 700 FI SPECIAL EDITION) 5B4W0 2009
CLUTCH

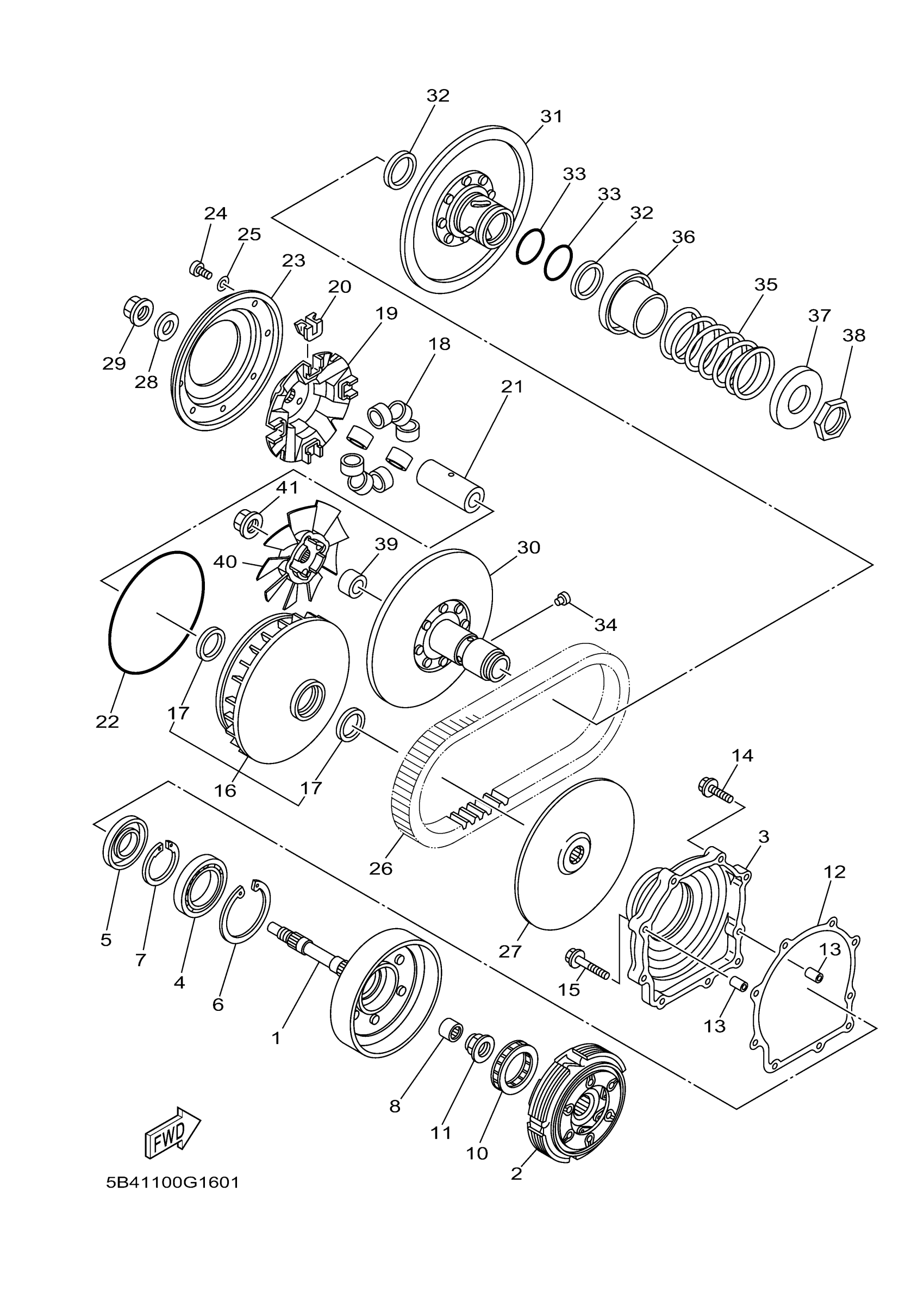

Yamaha YXR7FSEYR (RHINO 700 FI SPECIAL EDITION) 5B4W0 2009 CLUTCH Diagram
#
1
CLUTCH HOUSING SET
99999-04069-00
$399.99
2
CLUTCH CARRIER ASSY
3B4-16620-00-00
Unavailable
3
HOUSING, BEARING 1
3B4-15163-00-00
$111.99
4
BEARING
93316-01003-00
$104.99
5
OIL SEAL
93102-35004-00
$21.99
6
CIRCLIP (70R)
93420-80066-00
$14.99
7
CIRCLIP
93410-46079-00
$8.49
8
BRG,CYL-CAL ROLLER 12G KY
93315-21813-00
$36.99
10
BEARING, ONE WAY
4SH-16664-00-00
$154.99
11
NUT
90179-22021-00
$25.99
12
GASKET, COVER PINION 2
3B4-15463-00-00
$12.99
13
PIN, DOWEL(2VG)
99530-10116-00
$4.25
14
BOLT, FLANGE
95022-06030-00
$3.72
15
BOLT, FLANGE
95022-06040-00
$3.45
16
PRIMARY SLIDING SHEAVE COMP.
5B4-17606-00-00
$297.99
17
OIL SEAL
93101-35001-00
Unavailable
18
WEIGHT
5B4-17632-01-00
Unavailable
19
CAM
3B4-17623-02-00
Unavailable
20
SLIDER
16B-17653-00-00
Unavailable
21
COLLAR
3B4-17645-00-00
Unavailable
22
O-RING
93211-594A4-00
Unavailable
23
STOPPER
4WV-17639-10-00
Unavailable
24
SCREW, PAN HEAD
90157-04006-00
Unavailable
25
WASHER, PLATE(4HC)
90201-047R9-00
Unavailable
26
V-BELT
5B4-17641-00-00
Unavailable
27
SHEAVE, PRIMARY FIXED
5B4-17611-00-00
Unavailable
28
WASHER, PLATE
90201-190T7-00
Unavailable
29
NUT
90179-16005-00
Unavailable
30
SECONDARY FIXED SHEAVE COMP.
3B4-17660-10-00
Unavailable
31
SECONDARY SLIDING SHEAVE
3B4-17670-10-00
Unavailable
32
OIL SEAL
93104-41119-00
Unavailable
33
O-RING (10L)
93210-44545-00
Unavailable
34
PIN, GUIDE
4CW-17664-00-00
Unavailable
35
SPRING, COMPRESSION
90501-650A0-00
Unavailable
36
SEAT, SECONDARY SPRING
4WV-17684-00-00
Unavailable
37
SEAT, SPRING
4WV-17644-00-00
Unavailable
38
NUT (5G3)
90170-36279-00
Unavailable
39
SPACER
2P5-17649-00-00
Unavailable
40
FAN
5B4-17679-00-00
Unavailable
41
NUT
90179-16005-00
Unavailable
